Gain Block
鈥?Low Noise Figure:
1.7 dB Typical at 100 MHz
鈥?High Gain:
32.5 dB Typical at 100 MHz
鈥?3 dB Bandwidth:
DC to 500 MHz
鈥?Unconditionally Stable
(k>1)
鈥?Hermetic Gold-Ceramic
Surface Mount Package
amplifier housed in a hermetic, high
reliability package. It is designed for
narrow or wide bandwidth indus-
trial and military applications that
require high gain and low noise IF
or RF amplification.

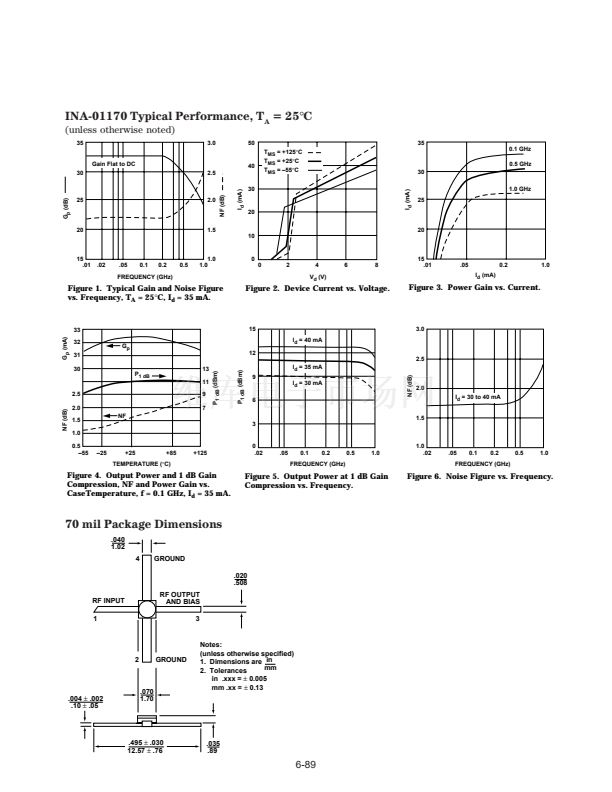

70 mil Package
Description
The INA-01170 is a low-noise silicon
bipolar Monolithic Microwave
Integrated Circuit (MMIC) feedback
The INA series of MMICs is
fabricated using HP鈥檚 10 GHz f
T
,
25 GHz f
MAX
, ISOSAT鈩?I silicon
bipolar process which uses nitride
self-alignment, submicrometer
lithography, trench isolation, ion
implantation, gold metallization
and polyimide intermetal dielec-
tric and scratch protection to
achieve excellent performance,
uniformity and reliability.
Typical Biasing Configuration
V
CC
> 8 V
RFC (Optional)
R
bias
(Required)
C
block
RF IN
1
2
4
3
V
d
= 5.5 V
C
block
RF OUT

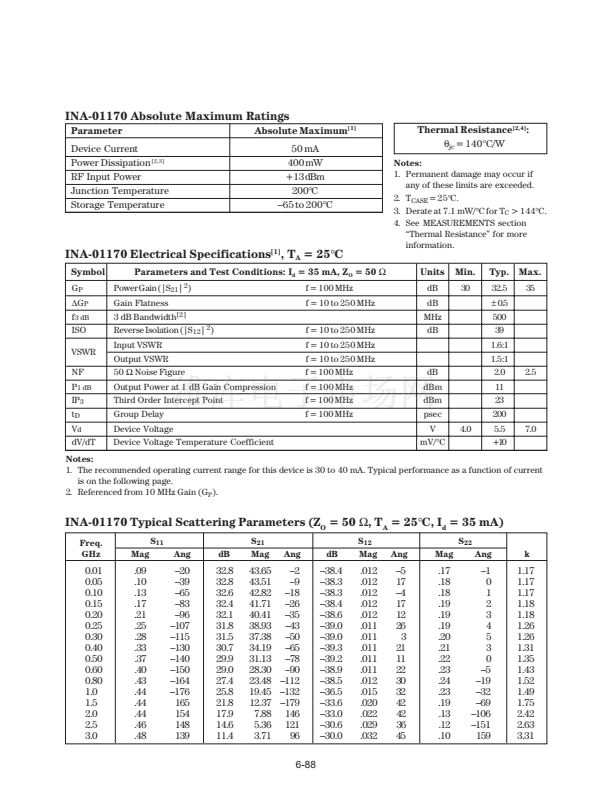

6-87
5965-9562E
