IN74HCT125A Datasheet

  • IN74HCT125A

  • QUAD 3-STATE NONINVERTING BUFFERS

  • 5頁

  • INTEGRAL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

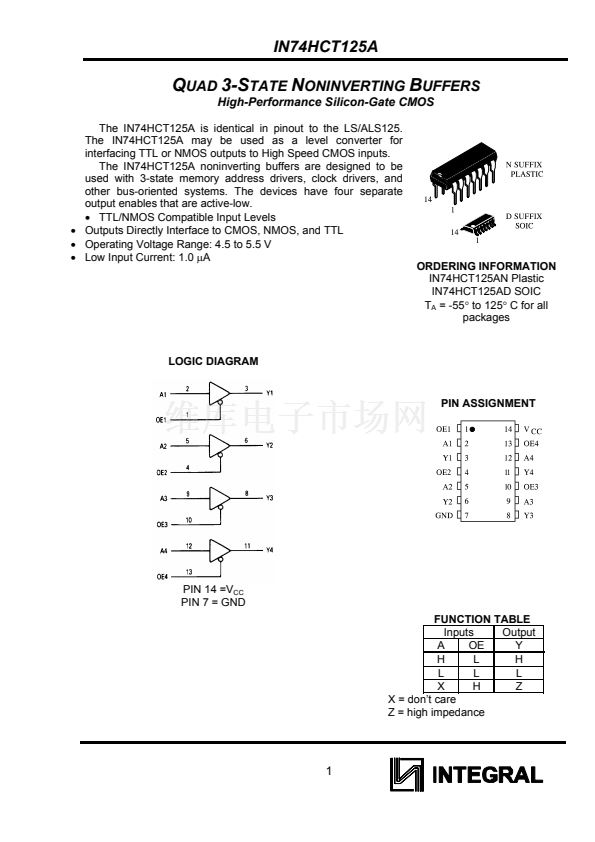

IN74HCT125A
Q
UAD
3-S
TATE
N
ONINVERTING
B
UFFERS
High-Performance Silicon-Gate CMOS
The IN74HCT125A is identical in pinout to the LS/ALS125.
The IN74HCT125A may be used as a level converter for
interfacing TTL or NMOS outputs to High Speed CMOS inputs.
The IN74HCT125A noninverting buffers are designed to be
used with 3-state memory address drivers, clock drivers, and
other bus-oriented systems. The devices have four separate
output enables that are active-low.
鈥?/div>
TTL/NMOS Compatible Input Levels
鈥?/div>
Outputs Directly Interface to CMOS, NMOS, and TTL
鈥?/div>
Operating Voltage Range: 4.5 to 5.5 V
鈥?/div>
Low Input Current: 1.0
碌A
ORDERING INFORMATION
IN74HCT125AN Plastic
IN74HCT125AD SOIC
T
A
= -55擄 to 125擄 C for all
packages
LOGIC DIAGRAM
PIN ASSIGNMENT
PIN 14 =V
CC
PIN 7 = GND
FUNCTION TABLE
Inputs
Output
A
OE
Y
H
L
H
L
L
L
X
H
Z
X = don鈥檛 care
Z = high impedance
1
