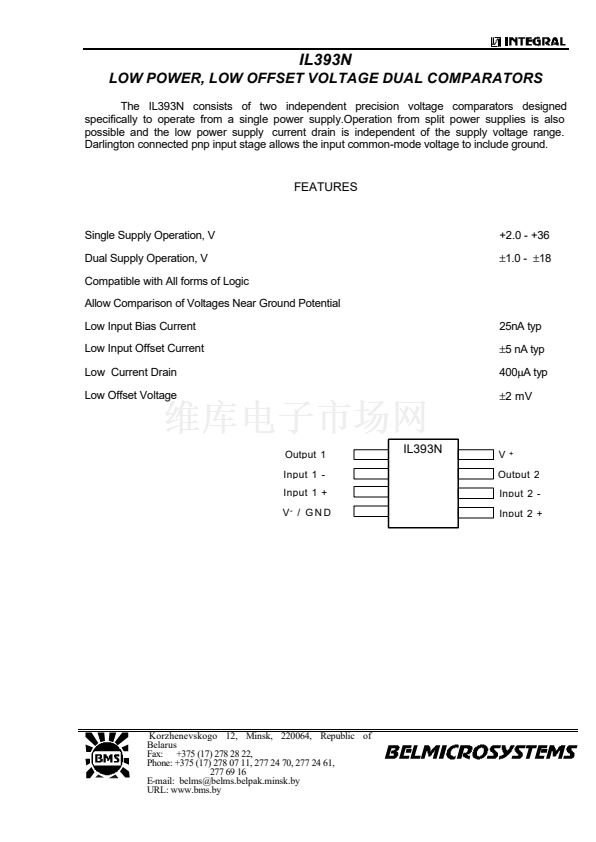

IL393N
LOW POWER, LOW OFFSET VOLTAGE DUAL COMPARATORS
The IL393N consists of two independent precision voltage comparators designed
specifically to operate from a single power supply.Operation from split power supplies is also
possible and the low power supply current drain is independent of the supply voltage range.
Darlington connected pnp input stage allows the input common-mode voltage to include ground.
FEATURES
Single Supply Operation, V
Dual Supply Operation, V
Compatible with All forms of Logic
Allow Comparison of Voltages Near Ground Potential
Low Input Bias Current
Low Input Offset Current
Low Current Drain
Low Offset Voltage
+2.0 - +36
鹵1.0
-
鹵18
25nA typ
鹵5
nA typ
400碌A typ
鹵2
mV
Output 1
Input 1 -
Input 1 +
V
-
/ G N D
IL393N
V
+
Output 2
Input 2 -
Input 2 +
