TECHNICAL DATA

Fixed Frequency Current Mode PWM Controller

IL3842

DESCRIPTION

Fixed frequency current-mode PWM controller. It is specially designed

for Off Line And DC-to-DC converter applications with minimal external

component. This integrated circuit features a trimmed oscillator for

precise duty cycle control. a temperature compensated reference, high

gain arror amplifier, current sensing comparator, and a high current

totempole output ideally suited for driving a power MOSFET.

Protection circuitry includes built in under-voltage lockout and current

limiting

FEATURES

鈾?/div>

Automatic Feed Forward Compensation

鈾igh

Gain Totem Pole Output

鈾nternally

Trimmed Bandgap Reference

鈾ndervoltage

Lockout with Hysteresis

鈾ow

Start Up Current

鈾ptimized

for offline converter

鈾ouble

pulse suppression

鈾urrent

mode operation to 500KHz

ORDERING INFORMATION

Device

IL3842

Operating

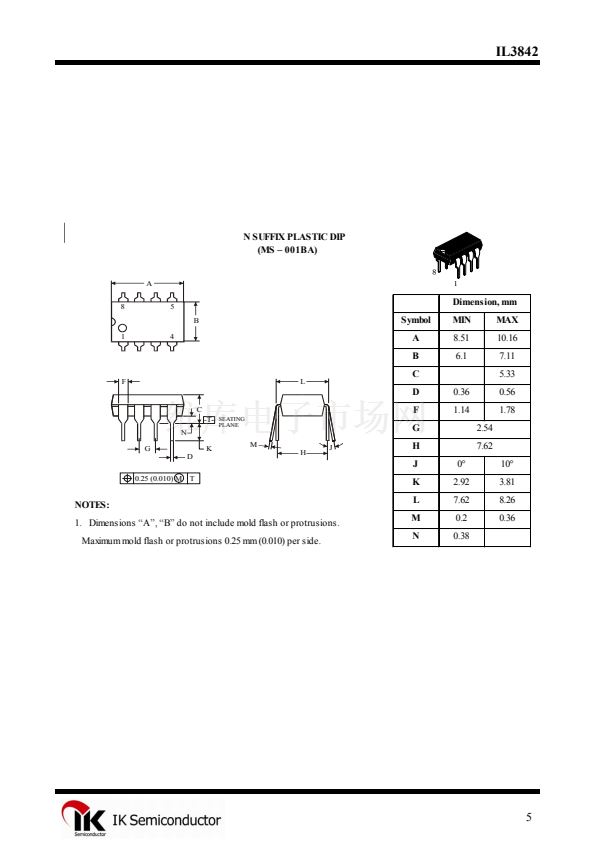

Package

Temperature Range

=0擄 to +70擄C

DIP-8
