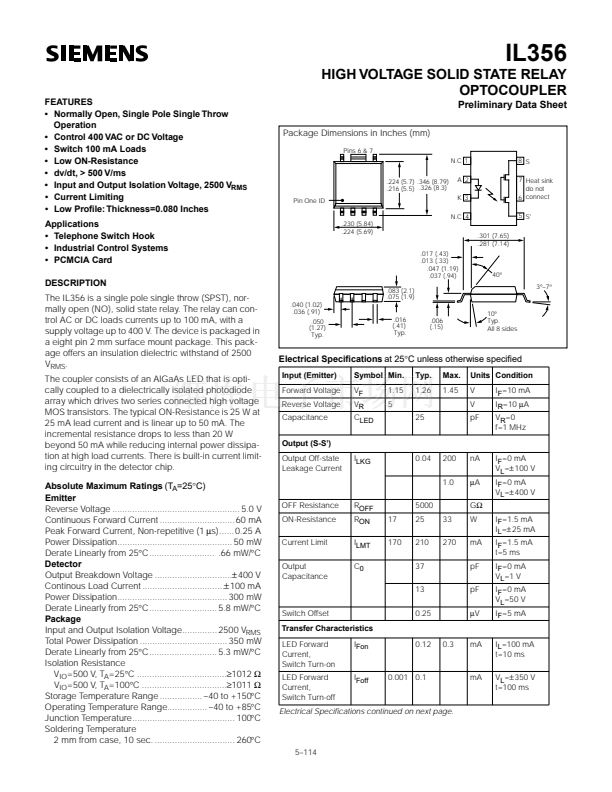

IL356
HIGH VOLTAGE SOLID STATE RELAY
OPTOCOUPLER
FEATURES
鈥?Normally Open, Single Pole Single Throw
Operation
鈥?Control 400 VAC or DC Voltage
鈥?Switch 100 mA Loads
鈥?Low ON-Resistance
鈥?dv/dt, > 500 V/ms
鈥?Input and Output Isolation Voltage, 2500 V
RMS
鈥?Current Limiting
鈥?Low Pro鏗乴e: Thickness=0.080 Inches
Applications
鈥?Telephone Switch Hook
鈥?Industrial Control Systems
鈥?PCMCIA Card
DESCRIPTION
The IL356 is a single pole single throw (SPST), nor-
mally open (NO), solid state relay. The relay can con-
trol AC or DC loads currents up to 100 mA, with a
supply voltage up to 400 V. The device is packaged in
a eight pin 2 mm surface mount package. This pack-
age offers an insulation dielectric withstand of 2500
V
RMS
.
The coupler consists of an AlGaAs LED that is opti-
cally coupled to a dielectrically isolated photodiode
array which drives two series connected high voltage
MOS transistors. The typical ON-Resistance is 25 W at
25 mA lead current and is linear up to 50 mA. The
incremental resistance drops to less than 20 W
beyond 50 mA while reducing internal power dissipa-
tion at high load currents. There is built-in current limit-
ing circuitry in the detector chip.
Absolute Maximum Ratings
(T
A
=25
擄
C)
Emitter
Reverse Voltage ................................................... 5.0 V
Continuous Forward Current .............................. 60 mA
Peak Forward Current, Non-repetitive (1
碌
s)...... 0.25 A
Power Dissipation.............................................. 50 mW
Derate Linearly from 25
擄
C .......................... .66 mW/
擄
C
Detector
Output Breakdown Voltage ...............................
鹵
400 V
Continous Load Current .................................
鹵
100 mA
Power Dissipation............................................ 300 mW
Derate Linearly from 25
擄
C ........................... 5.8 mW/
擄
C
Package
Input and Output Isolation Voltage.............. 2500 V
RMS
Total Power Dissipation ................................... 350 mW
Derate Linearly from 25
擄
C ........................... 5.3 mW/
擄
C
Isolation Resistance
V
IO
=500 V, T
A
=25
擄
C ....................................
鈮?/div>
1012
鈩?/div>
V
IO
=500 V, T
A
=100
擄
C ..................................
鈮?/div>
1011
鈩?/div>
Storage Temperature Range ................. 鈥?0 to +150
擄
C
Operating Temperature Range................ 鈥?0 to +85
擄
C
Junction Temperature......................................... 100
擄
C
Soldering Temperature
2 mm from case, 10 sec. ................................ 260
擄
C
.083 (2.1)
.075 (1.9)
.040 (1.02)
.036 (.91)
.050
(1.27)
Typ.
.016
(.41)
Typ.
.006
(.15)
10擄
Typ.
All 8 sides
Preliminary Data Sheet
Package Dimensions in Inches (mm)
Pins 6 & 7
N.C 1
.224 (5.7) .346 (8.79)
.216 (5.5) .326 (8.3)
Pin One ID
A 2
K 3
N.C 4
.230 (5.84)
.224 (5.69)
.017 (.43)
.013 (.33)
.047 (1.19)
.037 (.94)
.301 (7.65)
.281 (7.14)
8 S
7 Heat sink
do not
6 connect
5 S'
40擄
3擄鈥?擄
Electrical Speci鏗乧ations
at 25
擄
C unless otherwise speci鏗乪d
Input (Emitter)
Forward Voltage
Reverse Voltage
Capacitance
Output (S-S鈥?
Output Off-state
Leakage Current
I
LKG
0.04
200
1.0
OFF Resistance
ON-Resistance
Current Limit
Output
Capacitance
R
OFF
R
ON
I
LMT
C
0
17
170
5000
25
210
37
13
Switch Offset
Transfer Characteristics
LED Forward
Current,
Switch Turn-on
LED Forward
Current,
Switch Turn-off
I
Fon
0.12
0.3
mA
I
L
=100 mA
t=10 ms
V
L
=
鹵
350 V
t=100 ms
0.25
33
270
nA
碌
A
G
鈩?/div>
W
mA
pF
pF
碌
V
I
F
=1.5 mA
I
L
=
鹵
25 mA
I
F
=1.5 mA
t=5 ms
I
F
=0 mA
V
L
=1 V
I
F
=0 mA
V
L
=50 V
I
F
=5 mA
I
F
=0 mA
V
L
=
鹵
100 V
I
F
=0 mA
V
L
=
鹵
400 V
Symbol Min.
V
F
V
R
C
LED
1.15
5
25
Typ.
1.26
Max.
1.45
Units Condition
V
V
pF
I
F
=10 mA
I
R
=10
碌
A
V
R
=0
f=1 MHz
I
Foff
0.001 0.1
mA
Electrical Speci鏗乧ations continued on next page.
5鈥?14
