TECHNICAL DATA

Automotive Direction Indicator

The IL33193 is a new generation industry standard UAA1041 鈥淔lasher鈥?

It has been developed for enhanced EMI sensitivity, system reliability, and

improved wiring simplification. The IL33193 is pin compatible with the

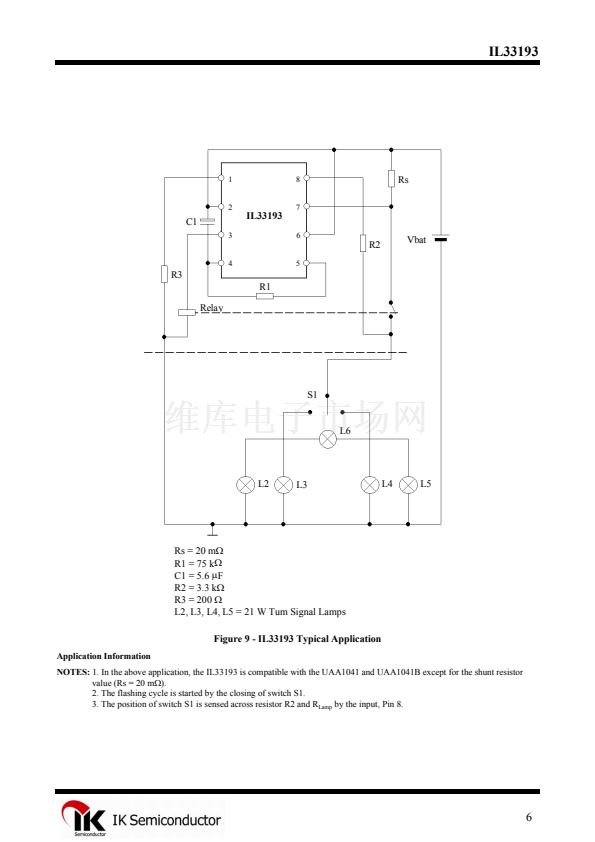

UAA1041 and UAA1041B in the standard application configuration as shown

in Figure 9, without lamp short circuit detection and using a 20 m鈩?shunt

resistor. The IL33193 has a standby mode of operation requiring very low

standby supply current and can be directly connected to the vehicle鈥檚 battery.

It includes an RF filter on the Fault detection pin (Pin 7) for EMI purposes.

Fault detection thresholds are reduced relative to those of the UAA1041,

allowing a lower shunt resistance value (20 mW) to be used.

鈥?Pin Compatible with the UAA1041

鈥?Defective Lamp Detection Threshold

鈥?RF Filter for EMI Purposes

鈥?Load Dump Protection

鈥?Double Battery Capability for Jump Start

IL33193

ORDERING INFORMATION

IL33193N

DIP

IL33193D

SOIC

T

A

= -40擄 to 125擄C for all packages

PIN CONNECTIONS

Vss

1

V褋褋

2

Relay

3

Oscillator

4

8

Starter

7

Fault

Detector

6

Enable

5

Oscillator

Simplified Block Diagram

1

SW2

SW1

Starter

8

2

Detector

24V

33V

Reference

Voltage

RF

Filter

7

3

Relay

Driver

Lamp Fault

Detector

6

4

5

Oscillator

This Device contains 60 active transistors.

1

next
