GREEN and YELLOW, GREEN and RED
6 x 4 Cells, Bi-Color Intelligent Indicators
Dimensions in inches (mm)
0.909
(23.10)
0.219
(5.56)
.020 (.50)
1
0.433
(10.83)
.288
(5.80)
Typ.
1.366
(34.70)
5
9
13
17
21
.288
(5.80)Typ.
2
6
10
14
18
22
3
7
11
15
19
23
4
8
12
16
20
24
0.10
(2.54)
Typ.
0.018
(0.46)
SQ
0.157
(4.00)
SQ
PIN 1
OSRAM
II640GY/GR
0.020
(0.50)
YYWW
II640GR
FEATURES
鈥?Colors: GY=Green and Yellow, GR=Green
and Red
鈥?Each Cell, 4.0 mm square
鈥?Vertical and Horizontal Pitch, 5.8 mm
鈥?X-Y Stackable
鈥?TTL Compatible
鈥?Easily Cascaded for Multiple Displays
鈥?Ideal for Small Footprint Requirements
DESCRIPTION
The II640GY/GR bi-color Intelligent Indicator is a 6 x 4
cell assembly with a built-in CMOS shift register and
LED drivers. Each cell or pixel has a green and yellow
LED (GY) or a green and red LED (GR). To turn an LED
鈥淥N鈥?a 1 (high) has to be clocked into the respective

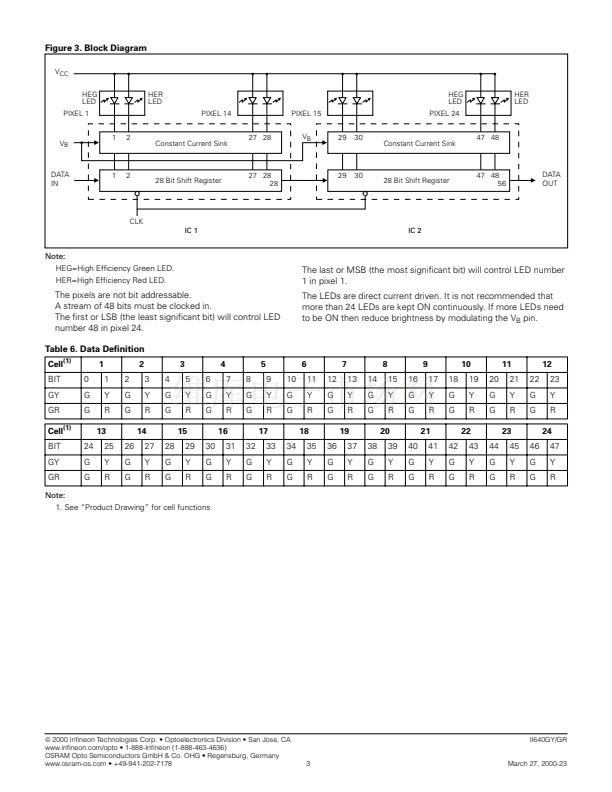

shift register (see the block diagram). The serial clock
has to be provided to pin 4, the 鈥渟hift register clock.鈥?/div>
The serial data bit stream is clocked in on the falling
edge of the clock pulses.
The blanking pin can be used to blank the indicator while
the data is being updated and it can also be pulse width
modulated to dim the display and consume less power.
Absolute Maximum Ratings,
T
A
=25擄C
DC Supply Voltage ................................... 5.0 V to +7.0 V
Input Voltage Levels
Relative to GND .............................. 5.0 V to
V
CC
+0.5 V
Operating/Storage
Temperature Range .............................. 鈥?0擄C to +85擄C
Maximum solder Temperature
0.063" (1.59 mm) below Seating Plane t<5.0 s.... 260擄C
錚?/div>
2000 In鏗乶eon Technologies Corp. 鈥?Optoelectronics Division 鈥?San Jose, CA
www.in鏗乶eon.com/opto 鈥?1-888-In鏗乶eon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG 鈥?Regensburg, Germany
www.osram-os.com 鈥?+49-941-202-7178
0.160
(4.06)
0.220 (5.59)
Table 1. Pin Function/Description
Pin
1
2
3
4
5
6
Function
GND
Data Out
Blanking
Serial Clock
Data In
V
CC
Description
Ground
Serial data output for cascading
Blanking control to enable or disable display
Shift register clock
Serial data input
+5.0 V supply
Custom overlays are available from:
1-800-279-6001
Actual size
1
A
2
B
3
C
3
C
4
D
1
A
2
B
4
D
1 2 3 1 2 3
A B C A B C
攏
"
+
i
攏
"
+
i
1
March 27, 2000-23
