IDTQS74FCT2828BTQ Datasheet

  • IDTQS74FCT2828BTQ

  • BUFFER/DRIVER|SINGLE|10-BIT|FCT/PCT-CMOS|SSOP|24PIN|PLASTIC

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

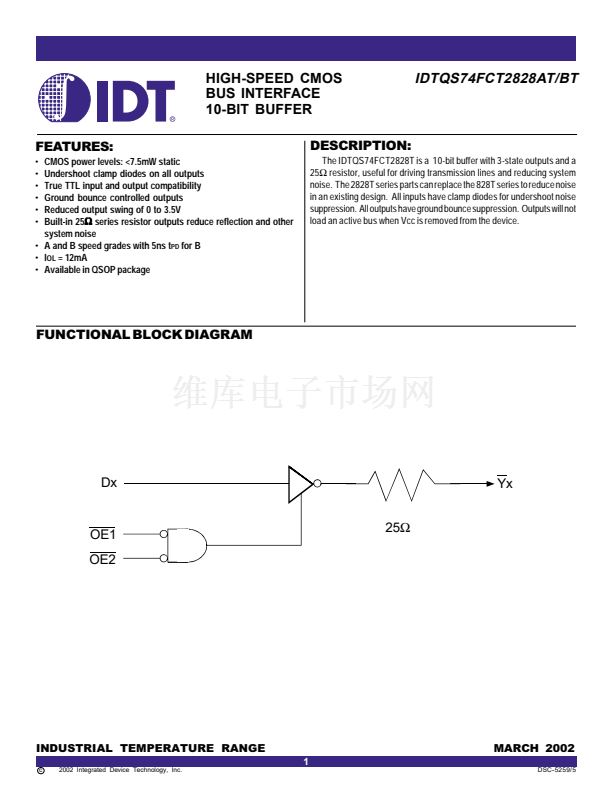

IDTQS74FCT2828AT/BT
HIGH-SPEED CMOS BUS INTERFACE 10-BIT BUFFERS
INDUSTRIAL TEMPERATURE RANGE
HIGH-SPEED CMOS
BUS INTERFACE
10-BIT BUFFER
.EATURES:
CMOS power levels: <7.5mW static
Undershoot clamp diodes on all outputs
True TTL input and output compatibility
Ground bounce controlled outputs
Reduced output swing of 0 to 3.5V
鈩?/div>
Built-in 25鈩?series resistor outputs reduce reflection and other
system noise
鈥?A and B speed grades with 5ns t
PD
for B
鈥?I
OL
= 12mA
鈥?Available in QSOP package
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
IDTQS74FCT2828AT/BT
DESCRIPTION:
The IDTQS74FCT2828T is a 10-bit buffer with 3-state outputs and a
25鈩?resistor, useful for driving transmission lines and reducing system
noise. The 2828T series parts can replace the 828T series to reduce noise
in an existing design. All inputs have clamp diodes for undershoot noise
suppression. All outputs have ground bounce suppression. Outputs will not
load an active bus when Vcc is removed from the device.
.UNCTIONAL BLOCK DIAGRAM
Dx
25鈩?/div>
Yx
OE1
OE2
INDUSTRIAL TEMPERATURE RANGE
1
c
2002 Integrated Device Technology, Inc.
MARCH 2002
DSC-5259/5
