鈭?/div>
Enhanced N channel FET with no inherent diode to Vcc
5鈩?bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control pins
Two enables control five bits each
Available in SOIC, QSOP, and TSSOP Packages

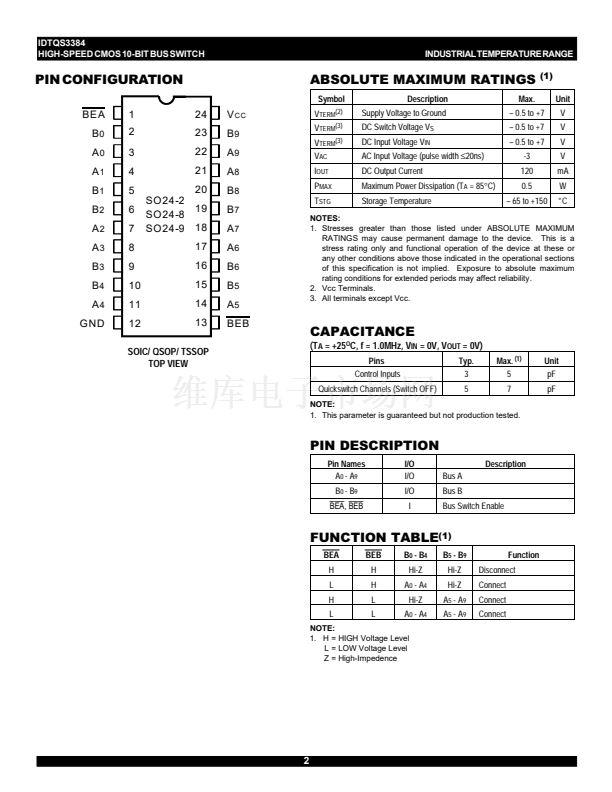

IDTQS3384
DESCRIPTION:
The QS3384 provides a set of ten high-speed CMOS, TTL-compatible
bus switches. The low ON resistance of QS3384 allows inputs to be
connected to outputs without adding propagation delay and without gener-
ating additional ground bounce. Two banks of 5 switches are controlled by
independent Bus Enable (BE) signals.
The QS3384 is characterized for operation at -40擄C to +85擄C.
APPLICATIONS
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Power conservation
Capacitance reduction and isolation
Bus isolation
Clock gating
FUNCTIONAL BLOCK DIAGRAM
A
0
B
0
A
4
B
4
A
5
B
5
A
9
B
9
BEA
BEB
INDUSTRIAL TEMPERATURE RANGE
1
c
1999
Integrated Device Technology, Inc.
FEBRUARY 2000
DSC-5758/-
