IDT74FCT3932-100PA Datasheet

  • IDT74FCT3932-100PA

  • 3.3V LOW SKEW PLL-BASED CMOS CLOCK DRIVER

  • 9頁

  • IDT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

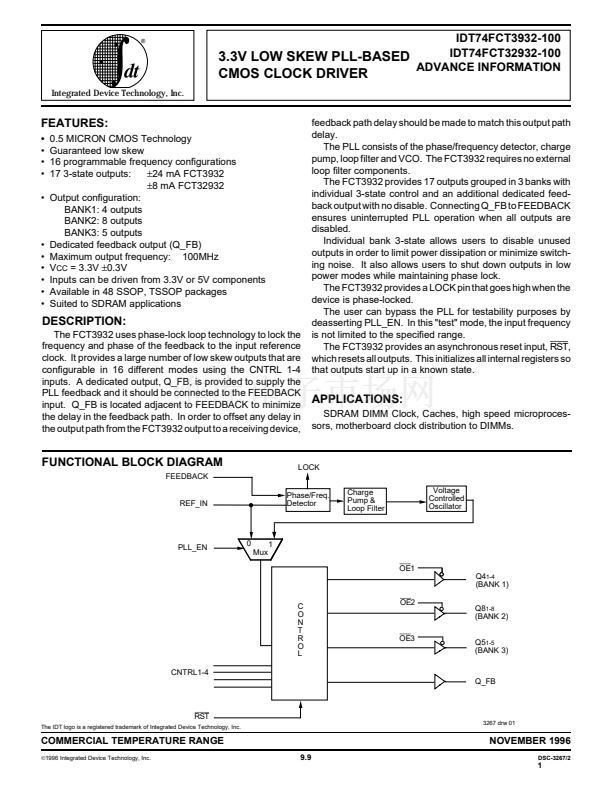

IDT74FCT3932-100, IDT74FCT32932-100
LOW SKEW PLL-BASED CLOCK DRIVER
COMMERCIAL TEMPERATURE RANGES
IDT74FCT3932-100
IDT74FCT32932-100
3.3V LOW SKEW PLL-BASED
ADVANCE INFORMATION
CMOS CLOCK DRIVER
Integrated Device Technology, Inc.
FEATURES:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.5 MICRON CMOS Technology

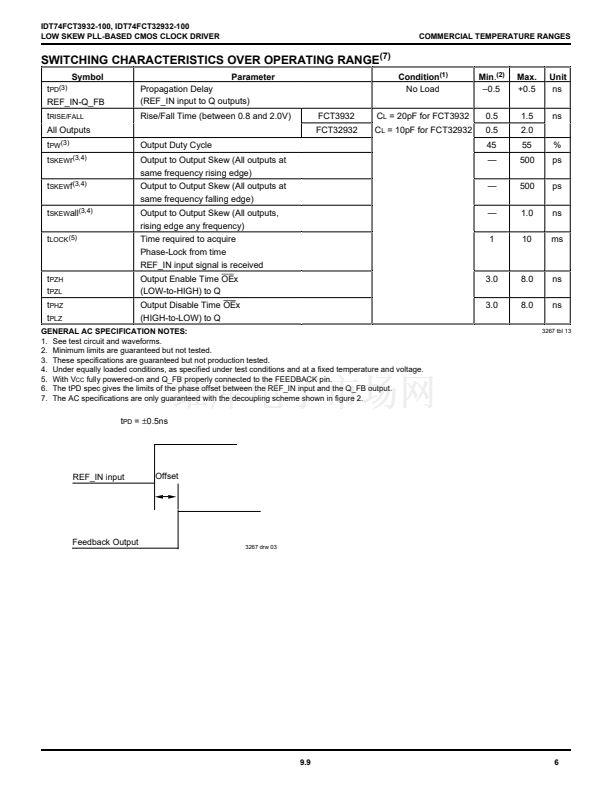

Guaranteed low skew
16 programmable frequency configurations
17 3-state outputs:
鹵24
mA FCT3932
鹵8
mA FCT32932
Output configuration:
BANK1: 4 outputs
BANK2: 8 outputs
BANK3: 5 outputs
Dedicated feedback output (Q_FB)

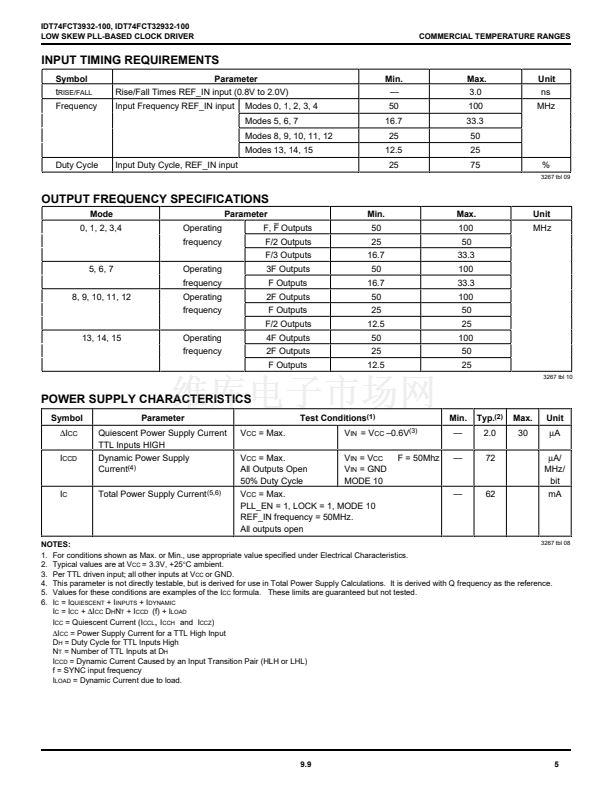

Maximum output frequency: 100MHz
V
CC
= 3.3V
鹵0.3V
Inputs can be driven from 3.3V or 5V components

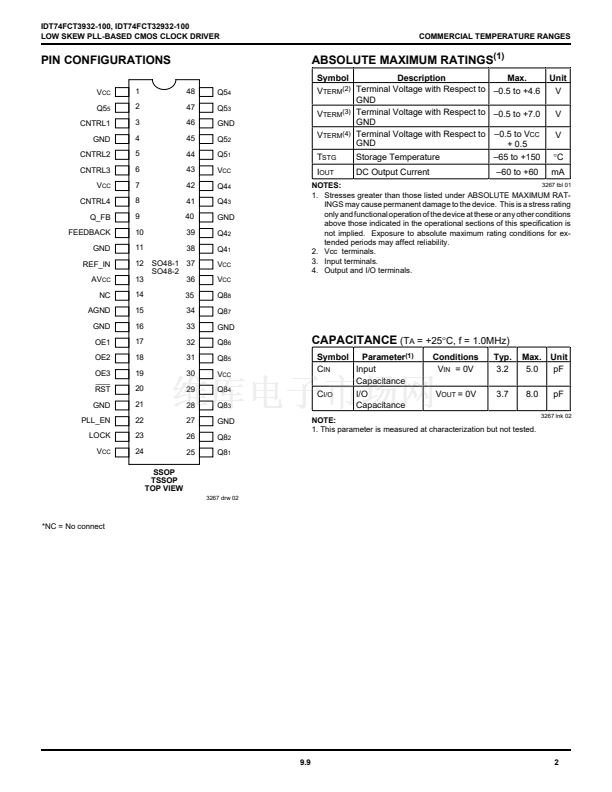

Available in 48 SSOP, TSSOP packages
Suited to SDRAM applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
DESCRIPTION:
The FCT3932 uses phase-lock loop technology to lock the
frequency and phase of the feedback to the input reference
clock. It provides a large number of low skew outputs that are

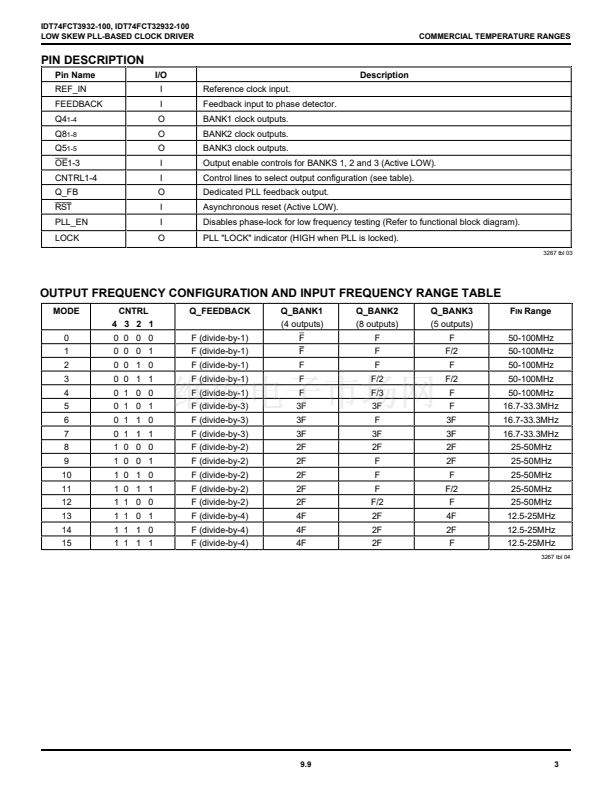

configurable in 16 different modes using the CNTRL 1-4
inputs. A dedicated output, Q_FB, is provided to supply the
PLL feedback and it should be connected to the FEEDBACK
input. Q_FB is located adjacent to FEEDBACK to minimize
the delay in the feedback path. In order to offset any delay in
the output path from the FCT3932 output to a receiving device,
feedback path delay should be made to match this output path
delay.
The PLL consists of the phase/frequency detector, charge
pump, loop filter and VCO. The FCT3932 requires no external
loop filter components.
The FCT3932 provides 17 outputs grouped in 3 banks with
individual 3-state control and an additional dedicated feed-
back output with no disable. Connecting Q_FB to FEEDBACK
ensures uninterrupted PLL operation when all outputs are
disabled.
Individual bank 3-state allows users to disable unused
outputs in order to limit power dissipation or minimize switch-
ing noise. It also allows users to shut down outputs in low
power modes while maintaining phase lock.
The FCT3932 provides a LOCK pin that goes high when the
device is phase-locked.
The user can bypass the PLL for testability purposes by
deasserting PLL_EN. In this "test" mode, the input frequency
is not limited to the specified range.
The FCT3932 provides an asynchronous reset input,
,
which resets all outputs. This initializes all internal registers so
that outputs start up in a known state.
RST
APPLICATIONS:
SDRAM DIMM Clock, Caches, high speed microproces-
sors, motherboard clock distribution to DIMMs.
FUNCTIONAL BLOCK DIAGRAM
FEEDBACK
LOCK
Charge
Pump &
Loop Filter
Voltage
Controlled
Oscillator
REF_IN
Phase/Freq.
Detector
PLL_EN
0
Mux
1
OE
1
OE
2
OE
3
Q4
1-4
(BANK 1)
Q8
1-8
(BANK 2)
Q5
1-5
(BANK 3)
C
O
N
T
R
O
L
CNTRL1-4
Q_FB
RST
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
3267 drw 01
COMMERCIAL TEMPERATURE RANGE
漏1996
Integrated Device Technology, Inc.
NOVEMBER 1996
9.9
9.9
DSC-3267/2
1

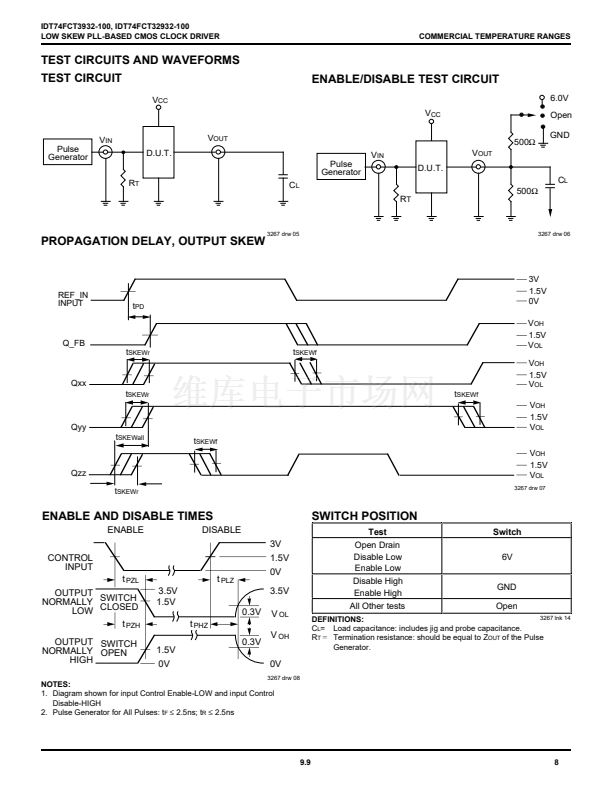

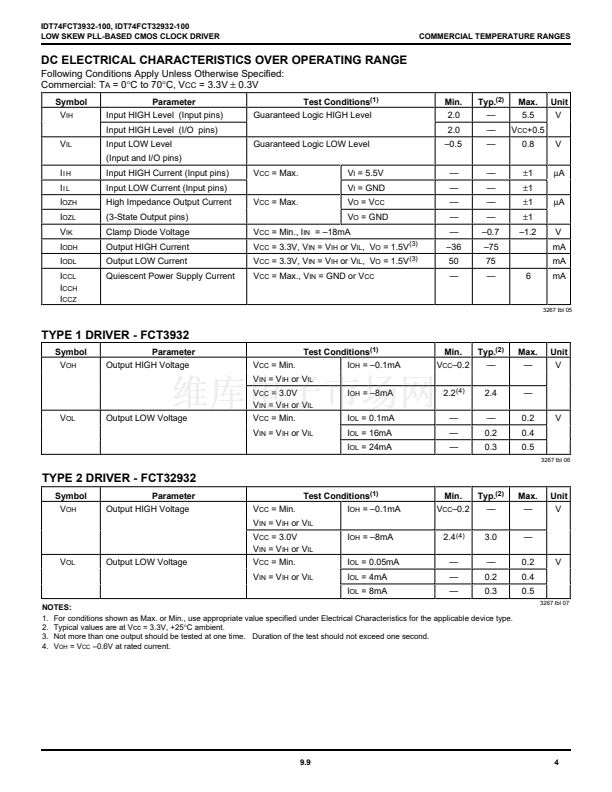

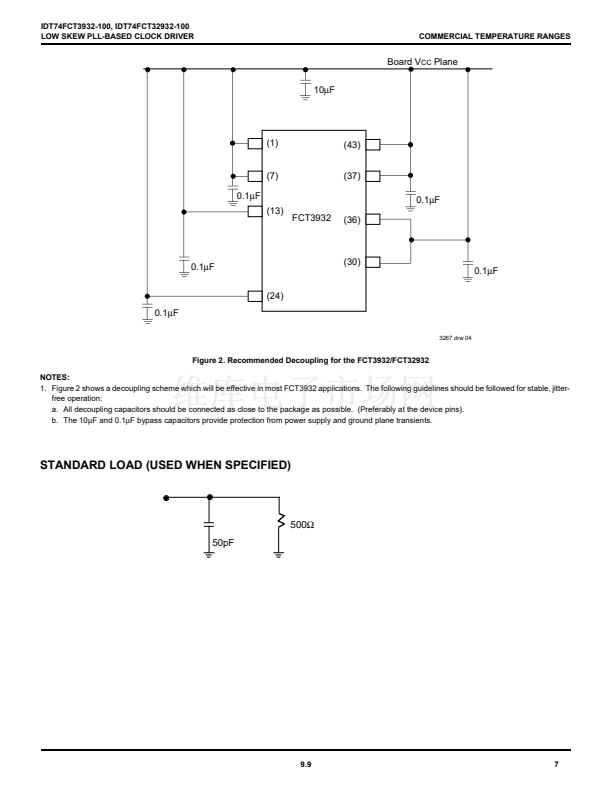

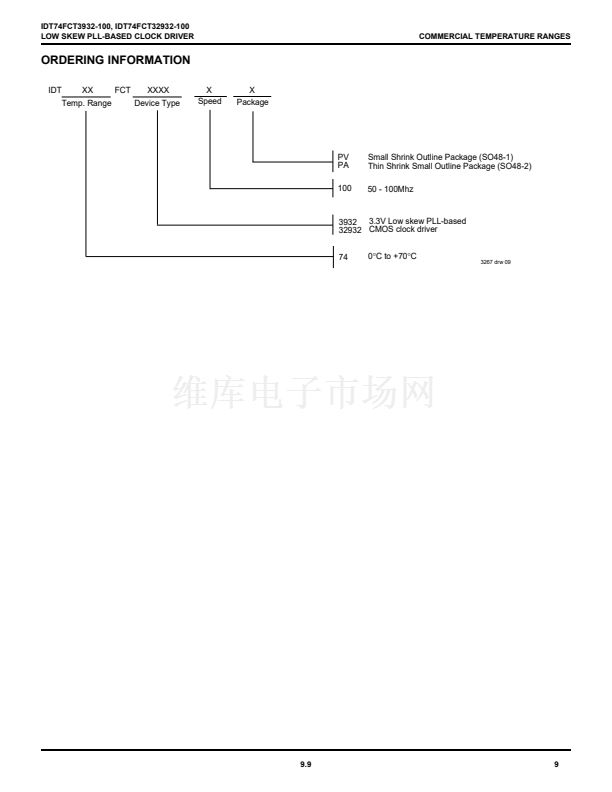

1
