Power off disable outputs permit 鈥渓ive insertion鈥?/div>
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation
Enhanced versions
Military product compliant to MIL-STD-883, Class B
and DESC listed (dual marked)
Available in DIP, SOIC, CERPACK and LCC packages
DESCRIPTION:
The IDT54/74FCT151T/AT/CT are high-speed 8-input mul-
tiplexers built using an advanced dual metal CMOS technol-
ogy. They select one bit of data from up to eight sources under
the control of three select inputs. Both assertion and negation
outputs are provided.
The IDT54/74FCT151T/AT/CT has a common Active-LOW
enable (
E
) input. When
E
is LOW, data from one of eight inputs
is routed to the complementary outputs according to the 3-bit
code applied to the Select (S
0
-S
2
) inputs. A common appli-
cation of the 鈥楩CT151 is data routing from one of eight
sources.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

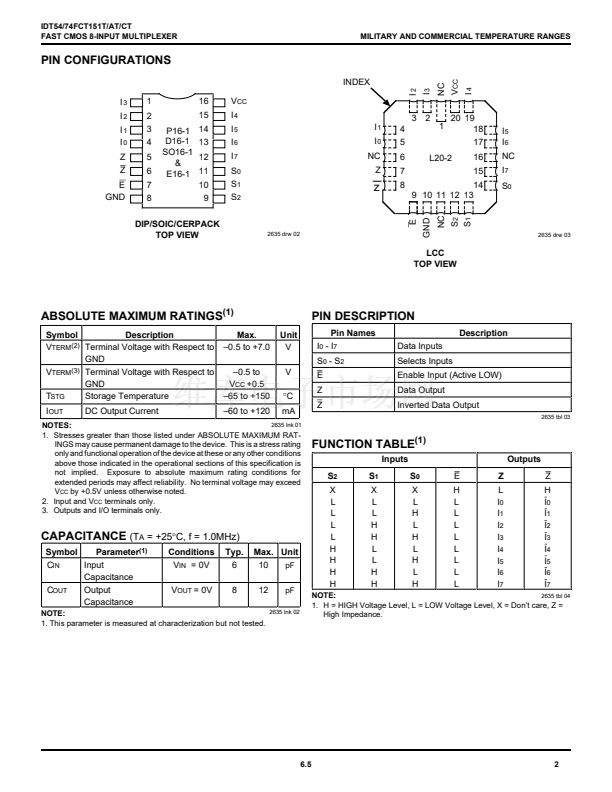

FUNCTIONAL BLOCK DIAGRAM
I
7
I
6
I
5
Z
I
4
Z
I
3
I
2
I
1
I
0
S
2
S
1
S
0
E
2635 drw 01
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
MILITARY AND COMMERCIAL TEMPERATURE RANGES
漏1997
Integrated Device Technology, Inc.
SEPTEMBER 1996
DSC-2635/5
6.5
1
