IDT74CBTLV3384QG Datasheet

  • IDT74CBTLV3384QG

  • LOW-VOLTAGE 10-BIT BUS SWITCH

  • 64.64KB

  • 5頁

  • IDT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

IDT74CBTLV3384
LOW-VOLTAGE 10-BIT BUS SWITCH
INDUSTRIAL TEMPERATURE RANGE
LOW-VOLTAGE 10-BIT
BUS SWITCH
IDT74CBTLV3384
FEATURES:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
5惟 A/B bi-directional bus switch
惟
Isolation under power-off conditions
Over-voltage tolerant
Latch-up performance exceeds 100mA
V
CC
= 2.3V - 3.6V, Normal Range
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
鈥?Available in SSOP, QSOP and TSSOP packages
DESCRIPTION:
The CBTLV3384 is a ten bit high-speed bus switch with low on-state
resistance of the switch allowing connections to be made with minimal
propagation delay.
The device is organized as dual 5-bit bus switches with separate output-
enable (OE) inputs, to allow use as two 5-bit bus switches or one 10-bit bus
switch. When
OE
is low, the associated 5-bit bus switch is on and A port is
connected to B port. When
OE
is high, the switch is open, and a high-
impedance state exists between the two ports.
To ensure the high-impedance state during power up or power down,
OE
should be tied to V
CC
through a pullup resistor; the minimum value of
the resistor is determined by the current-sinking capability of the driver.
APPLICATIONS:
鈥?3.3V High Speed Bus Switching and Bus Isolation
FUNCTIONAL BLOCK DIAGRAM
SIMPLIFIED SCHEMATIC, EACH SWITCH
1A1
3
SW
2
1B1
1A5
11
SW
10
1B5
1
1OE
A
B
2A1
14
SW
15
2B1
OE
2A5
22
SW
10
2B5
2OE
13
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
INDUSTRIAL TEMPERATURE RANGE
1
SEPTEMBER 2001
DSC-5742/4
漏 2001 Integrated Device Technology, Inc.

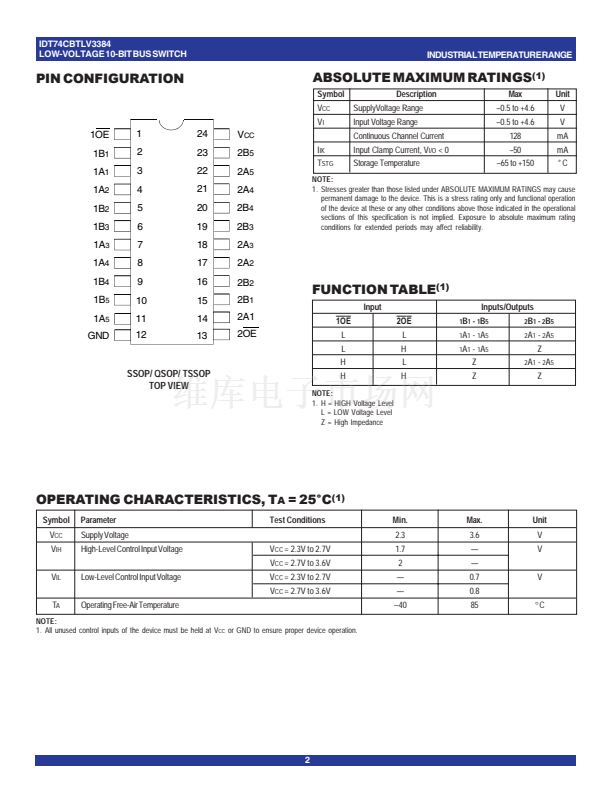

IDT74CBTLV3384QG 產品屬性

  • 55

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • 74CBTLV

  • 總線開關

  • 5 x 1:1

  • 2

  • 15mA，64mA

  • 單電源

  • 2.3 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 24-SSOP（0.154"，3.90mm 寬）

  • 24-QSOP

  • 管件

  • 74CBTLV3384QG
