ICX038DNA
Diagonal 8mm (Type 1/2) CCD Image Sensor for NTSC Color Video Cameras
Description

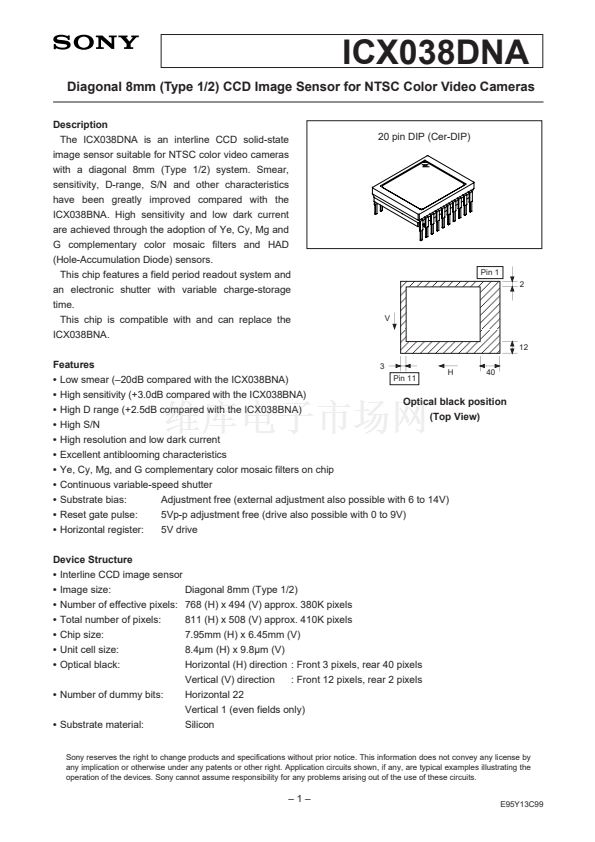

The ICX038DNA is an interline CCD solid-state
image sensor suitable for NTSC color video cameras
with a diagonal 8mm (Type 1/2) system. Smear,
sensitivity, D-range, S/N and other characteristics
have been greatly improved compared with the
ICX038BNA. High sensitivity and low dark current
are achieved through the adoption of Ye, Cy, Mg and
G complementary color mosaic filters and HAD
(Hole-Accumulation Diode) sensors.
This chip features a field period readout system and
an electronic shutter with variable charge-storage
time.
This chip is compatible with and can replace the
ICX038BNA.
V
Pin 1
2
20 pin DIP (Cer-DIP)
12
Features
3
40
H
Pin 11
鈥?/div>
Low smear (鈥?0dB compared with the ICX038BNA)
鈥?/div>
High sensitivity (+3.0dB compared with the ICX038BNA)
Optical black position
鈥?/div>
High D range (+2.5dB compared with the ICX038BNA)
(Top View)
鈥?/div>
High S/N
鈥?/div>
High resolution and low dark current
鈥?/div>
Excellent antiblooming characteristics
鈥?/div>
Ye, Cy, Mg, and G complementary color mosaic filters on chip
鈥?/div>
Continuous variable-speed shutter
鈥?/div>
Substrate bias:
Adjustment free (external adjustment also possible with 6 to 14V)
鈥?/div>
Reset gate pulse:
鈥?/div>
Horizontal register:
5Vp-p adjustment free (drive also possible with 0 to 9V)
5V drive
Device Structure
鈥?/div>
Interline CCD image sensor
鈥?/div>
Image size:
Diagonal 8mm (Type 1/2)
鈥?/div>
Number of effective pixels: 768 (H) x 494 (V) approx. 380K pixels
鈥?/div>
Total number of pixels:
811 (H) x 508 (V) approx. 410K pixels
鈥?/div>
Chip size:
7.95mm (H) x 6.45mm (V)
鈥?/div>
Unit cell size:
鈥?/div>
Optical black:
鈥?/div>
Number of dummy bits:
鈥?/div>
Substrate material:
8.4碌m (H) x 9.8碌m (V)
Horizontal (H) direction : Front 3 pixels, rear 40 pixels
Vertical (V) direction
: Front 12 pixels, rear 2 pixels
Horizontal 22
Vertical 1 (even fields only)
Silicon
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E95Y13C99
