ICS9118M-04 Datasheet

  • ICS9118M-04

  • Miscellaneous Clock Generator

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Integrated
Circuit
Systems, Inc.
Obsolete
ICS9118-03
ICS9118-04
Frequency Generator for Digital Video Systems
General Description
The
ICS9118-03
and
ICS9118-04
are low-cost, high-
perform-ance clock generators designed to support digital
video systems. 1.8MHz UART and AUDIO clocks are
generated from the recovered 27MHz reference signal.
The -03 supports 256x audio oversampling, and the -04
supports 384x audio oversampling.
The audio clock is synthesized from 27 MHz using a high
accuracy, low jitter PLL to meet the synchronization and
-96dB signal-to-noise ratios required by 16-bit DSP systems.
Fast output clock edge rates minimize board-induced jitter.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Features
Genreates AUDIO codec and UART clocks
synchronized to the 27MHz recovered video clock
Selectable AUDIO clock supports 256x and 384x
over-sampling of 16.00, 22.05, 24.00, 32.00, 44.10
and 48.00 kHz
80ps one sigma jitter maintains 16 bit performance
Output rise/fall times less than 1.5nS
On chip loop filter components
3.0V - 5.5V supply range
8-pin, 150-mil SOIC package

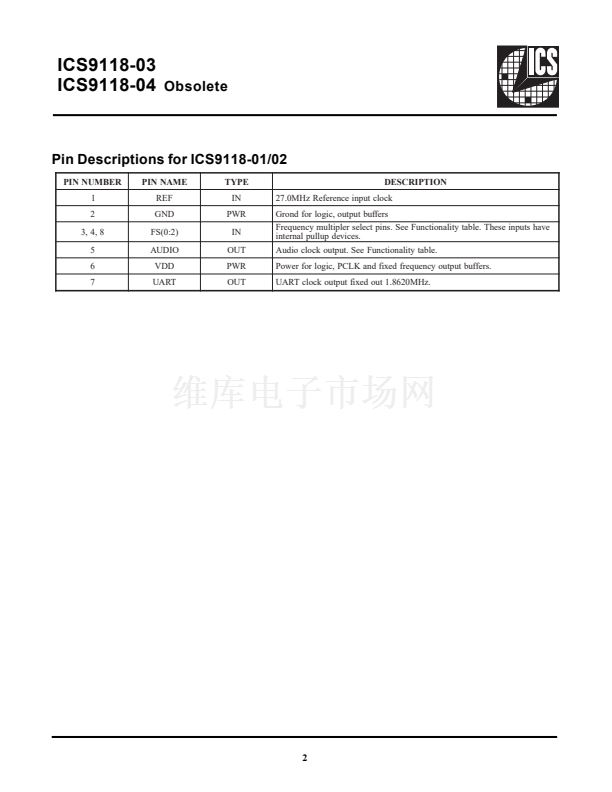

Pin Configuration
Applications
鈥?/div>
Specifically designed to support the high
performance clocking requirements of digital video
set-top and multi-media systems
Functionality
VDD=3.0-5.5V, TEMP=0-70擄
REF
(MHz)
27.00
27.00
27.00
27.00
27.00
27.00
27.00
27.00
FS
[2:0]
000
001
010
011
10 0
101
11 0
11 1
AUDIO
03
(MHz)
Tristate
256*16.00
256*22.05
256*24.00
256*32.00
256*44.10
256*48.00
Low
AUDIO
04
(MHz)
Tristate
384*16.00
384*22.05
384*24.00
384*32.00
384*44.10
384*48.00
Low
UART
(MHz)
Tristate
1.8620
1.8620
1.8620
1.8620
1.8620
1.8620
Low
8-Pin SOIC
ICS9118-04 Obsolete
Block Diagram
9118-03 9118-04 RevB 7/28/99
ICS reserves the right to make changes in the device data identified in this
publication without further notice. ICS advises its customers to obtain the latest
version of all device data to verify that any information being relied upon by the
customer is current and accurate.
