Data Sheet
I
ICL3310
July 2004
FN4995.3
+3V to +5.5V, 1 Microamp, 250kbps,
RS-232 Transmitter/Receiver
The Intersil ICL3310 contains 3.0V to 5.5V powered RS-232
transmitters/receivers which meet ElA/TIA-232 and
V.28/V.24 specifications, even at V
CC
= 3.0V. Targeted
applications are PDAs, Palmtops, and notebook and laptop
computers where the low operational, and even lower
standby, power consumption is critical. Efficient on-chip
charge pumps, coupled with a manual powerdown function
reduces the standby supply current to a 1碌A(chǔ) trickle. Small
footprint packaging, and the use of small, low value
capacitors ensure board space savings as well. Data rates
greater than 250kbps are guaranteed at worst case load
conditions. This device is fully compatible with 3.3V only
systems, mixed 3.3V and 5.0V systems, and 5.0V only
systems.
The single pin powerdown function (SHDN = 0) disables all
the transmitters and receivers, while shutting down the
charge pump to minimize supply current drain.
Table 1 summarizes the features of the ICL3310, while
Application Note AN9863 summarizes the features of each
device comprising the ICL32XX 3V family.
Features
鈥?/div>
鹵
15kV ESD Protected (Human Body Model)
鈥?Low Power, Pin Compatible Upgrade for 5V MAX222,
SP310A, and LT1X80/A
鈥?Single SHDN Pin Disables Transmitters and Receivers
鈥?Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V
鈥?Latch-Up Free
鈥?On-Chip Voltage Converters Require Only Four External
0.1碌F Capacitors
鈥?Receiver Hysteresis For Improved Noise Immunity
鈥?Very Low Supply Current . . . . . . . . . . . . . . . . . . . . 0.3mA
鈥?Guaranteed Minimum Data Rate . . . . . . . . . . . . . 250kbps
鈥?Guaranteed Minimum Slew Rate . . . . . . . . . . . . . . . 6V/碌s
鈥?Wide Power Supply Range . . . . . . . Single +3V to +5.5V
鈥?Low Supply Current in Powerdown State. . . . . . . . . .<1碌A(chǔ)
Applications
鈥?Any System Requiring RS-232 Communication Ports
- Battery Powered, Hand-Held, and Portable Equipment
- Laptop Computers, Notebooks, Palmtops
- Modems, Printers and other Peripherals
- Digital Cameras
- Cellular/Mobile Phones
Pinout
ICL3310 (SOIC)
TOP VIEW
NC 1
C1+ 2
V+
3
18 SHDN
17 V
CC
16 GND
15 T1
OUT
14 R1
IN
13 R1
OUT
12 T1
IN
11 T2
IN
10 R2
OUT
Related Literature
鈥?Technical Brief TB363 鈥淕uidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)鈥?/div>
C1- 4
C2+ 5
C2- 6
V- 7
T2
OUT
8
R2
IN
9
Part # Information
PART NO.
ICL3310CB
ICL3310CB-T
ICL3310IB
ICL3310IB-T
TEMP.
RANGE (
o
C)
0 to 70
0 to 70
-40 to 85
-40 to 85
PACKAGE
18 Ld SOIC
Tape and Reel
18 Ld SOIC
Tape and Reel
PKG. NO.
M18.3
M18.3
M18.3
M18.3
TABLE 1. SUMMARY OF FEATURES
PART
NUMBER
ICL3310
NO. OF NO. OF
Tx.
Rx.
2
2
NO. OF
MONITOR Rx.
(R
OUTB
)
0
DATA
RATE
(kbps)
250
Rx. ENABLE
FUNCTION?
NO
READY
OUTPUT?
NO
MANUAL
POWER-
DOWN?
YES
AUTOMATIC
POWERDOWN
FUNCTION?
NO

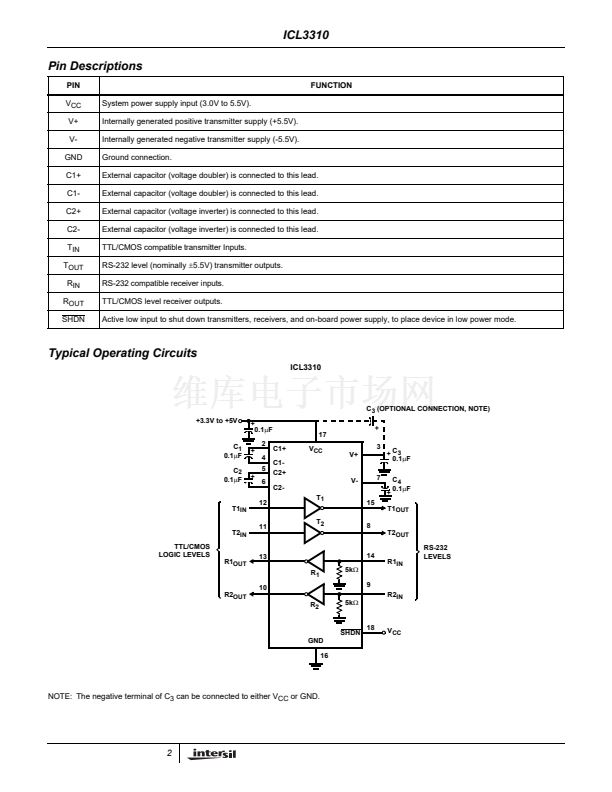

1
