IC11S-68PLR-1.27SF-EJL Datasheet

  • IC11S-68PLR-1.27SF-EJL

  • Single Slot SMT Connectors For Card-Bus Based PC Cards

  • 38頁

  • HRS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

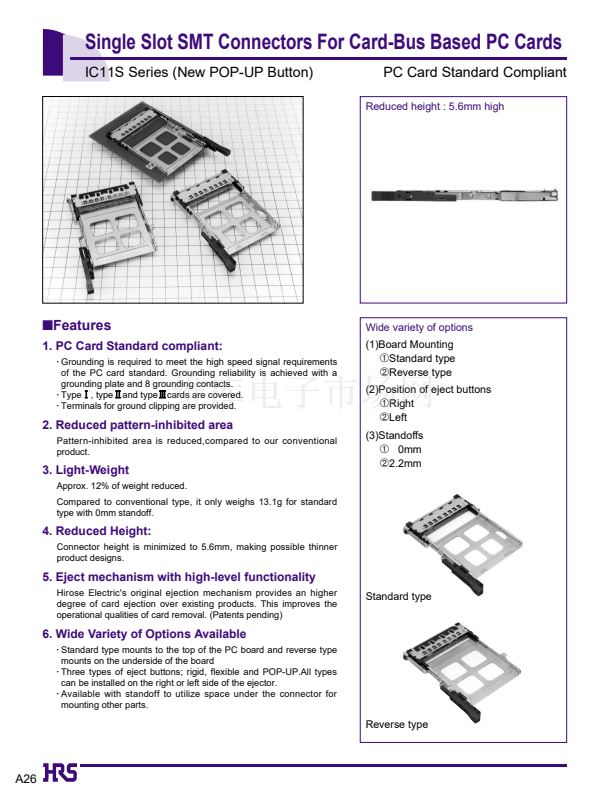

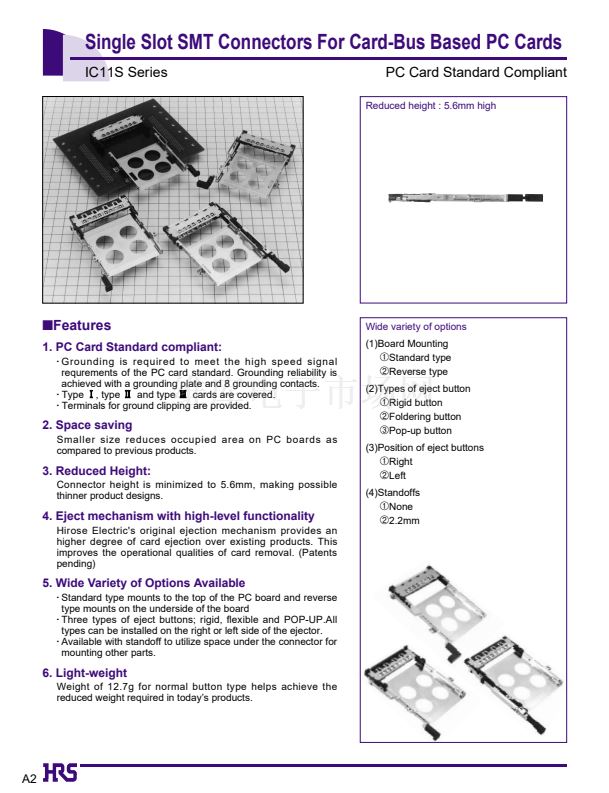

Single Slot SMT Connectors For Card-Bus Based PC Cards
IC11S Series
PC Card Standard Compliant
Reduced height : 5.6mm high
sFeatures
1. PC Card Standard compliant:
鈥?/div>
Grounding is required to meet the high speed signal
requrements of the PC card standard. Grounding reliability is
achieved with a grounding plate and 8 grounding contacts.
鈥?/div>
Type
1
, type
2
and type
3
cards are covered.
鈥?/div>
Terminals for ground clipping are provided.
Wide variety of options
(1)Board Mounting
鉃€

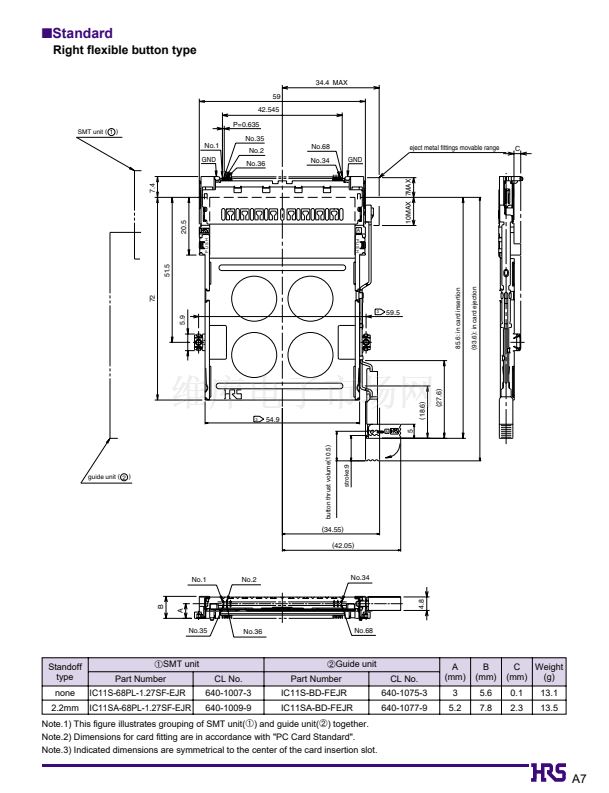

Standard type
鉃?/div>

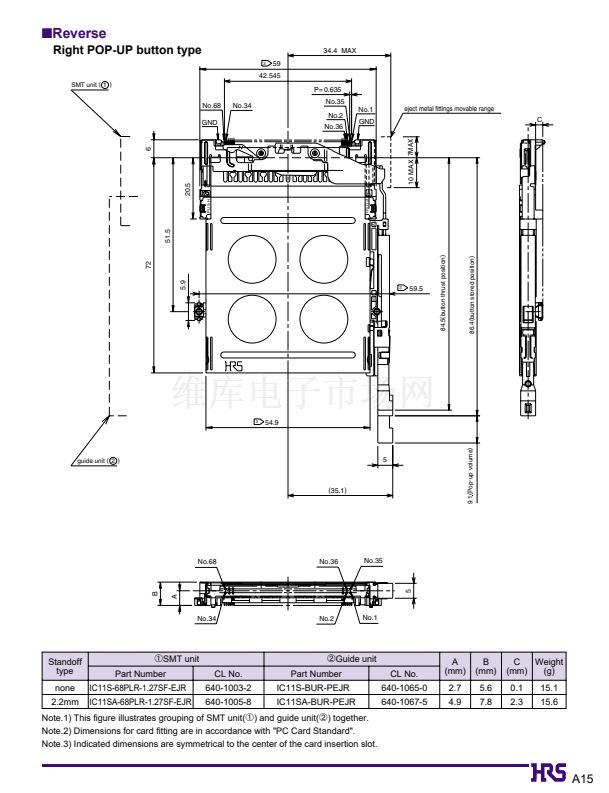

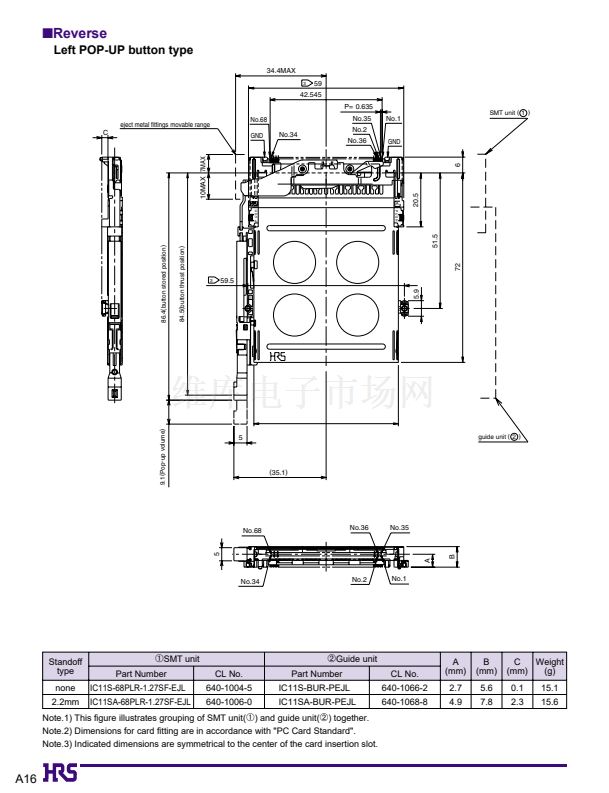

Reverse type
(2)Types of eject button
鉃€
Rigid button
鉃?/div>
Foldering button
鉃?/div>
Pop-up button
(3)Position of eject buttons
鉃€
Right
鉃?/div>
Left
(4)Standoffs
鉃€
None
鉃?/div>
2.2mm
2. Space saving
Smaller size reduces occupied area on PC boards as
compared to previous products.
3. Reduced Height:
Connector height is minimized to 5.6mm, making possible
thinner product designs.
4. Eject mechanism with high-level functionality
Hirose Electric's original ejection mechanism provides an
higher degree of card ejection over existing products. This
improves the operational qualities of card removal. (Patents
pending)
5. Wide Variety of Options Available
鈥?/div>

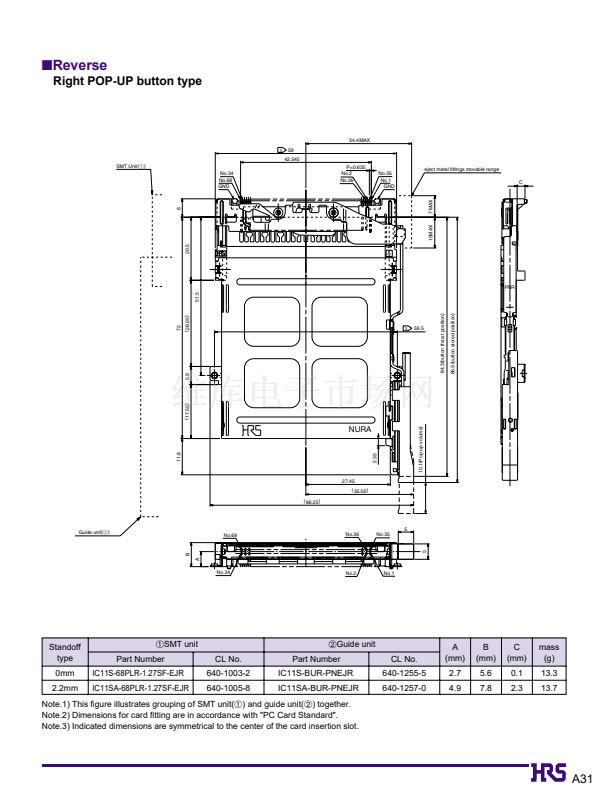

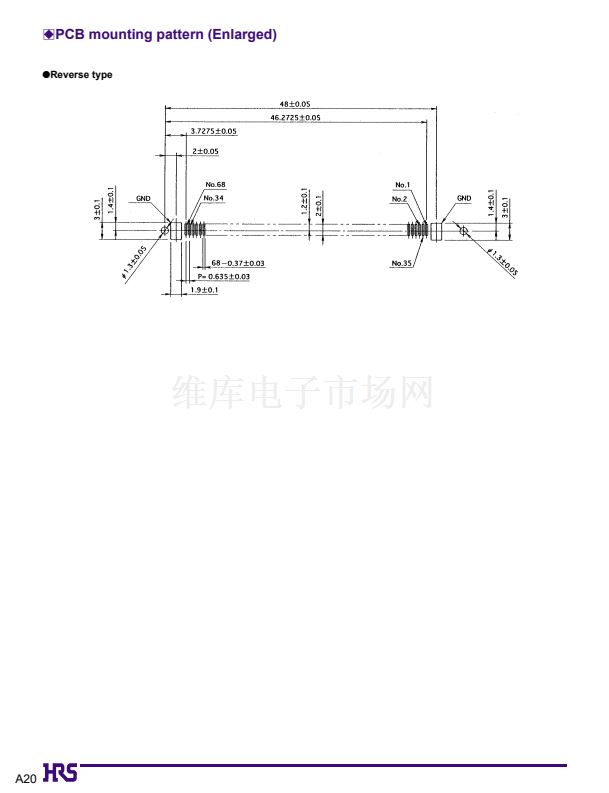

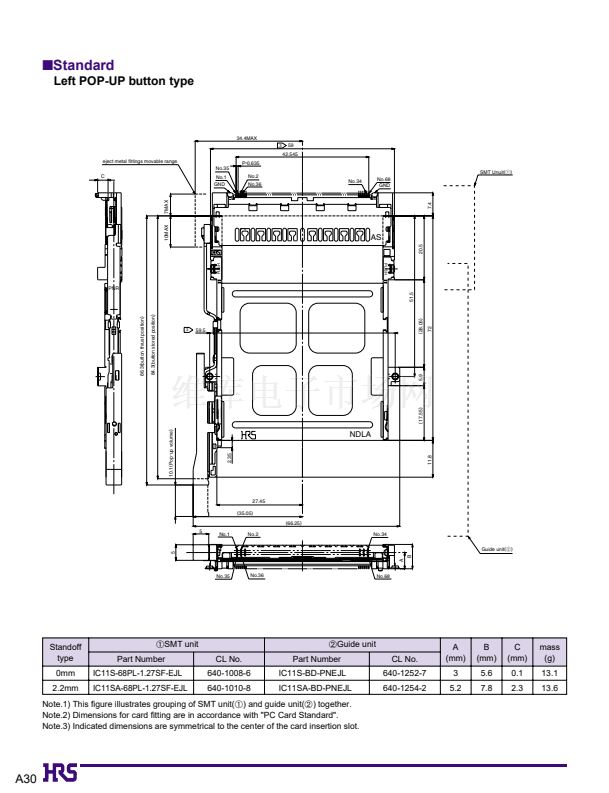

Standard type mounts to the top of the PC board and reverse
type mounts on the underside of the board
鈥?/div>
Three types of eject buttons; rigid, flexible and POP-UP.All
types can be installed on the right or left side of the ejector.
鈥?/div>
Available with standoff to utilize space under the connector for
mounting other parts.
6. Light-weight
Weight of 12.7g for normal button type helps achieve the
reduced weight required in today鈥檚 products.
A2

IC11S-68PLR-1.27SF-EJL 產品屬性

  • 24

  • 連接器，互連式

  • 存儲器 - PC 卡 - 連接器

  • IC11S

  • PCMCIA - CardBus，I 型、II 型、III 型

  • 68

  • 連接器和彈出器

  • 推入式，推出式

  • 左側

  • 表面貼裝，直角

  • 板導軌，卡導軌

  • 0.220"（5.59mm）

  • 反向 - 底部

  • 散裝

  • 金

  • -

  • HR1161-ND - CONN EJECTOR GUIDE LEFT POP-UPHR1160-ND - CONN EJECTOR GUIDE LEFT POP-UPHR1159-ND - CONN EJECTOR GUIDE LEFT FOLDINGHR1158-ND - CONN EJECTOR GUIDE LEFT RIGID

  • *IC11S-68PLR-1.27SF-*IC11S-68PLR-1.27SF-EJLHR1157
