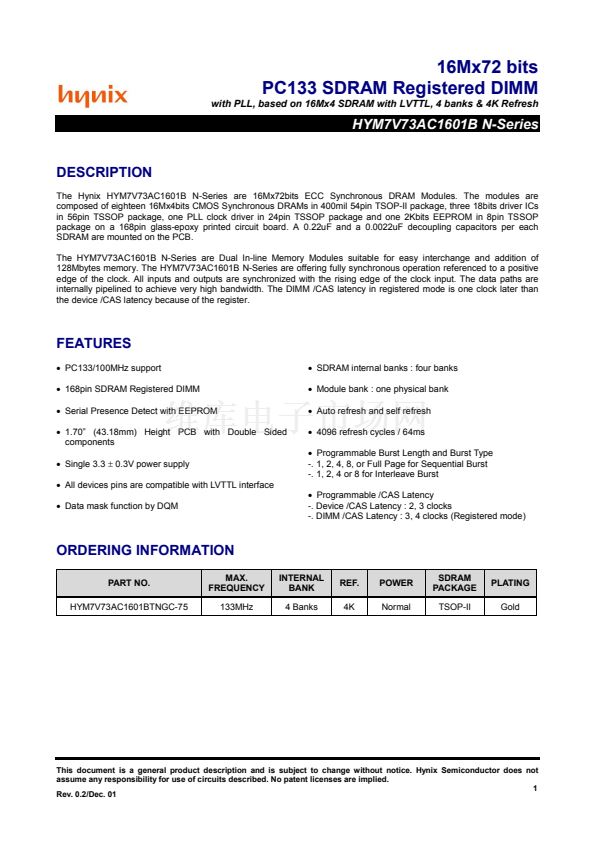

16Mx72 bits
PC133 SDRAM Registered DIMM
with PLL, based on 16Mx4 SDRAM with LVTTL, 4 banks & 4K Refresh
HYM7V73AC1601B N-Series
DESCRIPTION
The Hynix HYM7V73AC1601B N-Series are 16Mx72bits ECC Synchronous DRAM Modules. The modules are
composed of eighteen 16Mx4bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, three 18bits driver ICs
in 56pin TSSOP package, one PLL clock driver in 24pin TSSOP package and one 2Kbits EEPROM in 8pin TSSOP
package on a 168pin glass-epoxy printed circuit board. A 0.22uF and a 0.0022uF decoupling capacitors per each
SDRAM are mounted on the PCB.
The HYM7V73AC1601B N-Series are Dual In-line Memory Modules suitable for easy interchange and addition of
128Mbytes memory. The HYM7V73AC1601B N-Series are offering fully synchronous operation referenced to a positive
edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are
internally pipelined to achieve very high bandwidth. The DIMM /CAS latency in registered mode is one clock later than
the device /CAS latency because of the register.
FEATURES
鈥?/div>
PC133/100MHz support
鈥?/div>
168pin SDRAM Registered DIMM
鈥?/div>
Serial Presence Detect with EEPROM
鈥?/div>
1.70鈥?(43.18mm) Height PCB with Double Sided
components
鈥?/div>
Single 3.3
鹵
0.3V power supply
鈥?/div>
All devices pins are compatible with LVTTL interface
鈥?/div>
Data mask function by DQM
鈥?/div>
SDRAM internal banks : four banks
鈥?/div>
Module bank : one physical bank
鈥?/div>
Auto refresh and self refresh
鈥?/div>
4096 refresh cycles / 64ms
鈥?/div>
Programmable Burst Length and Burst Type
-. 1, 2, 4, 8, or Full Page for Sequential Burst
-. 1, 2, 4 or 8 for Interleave Burst
鈥?/div>
Programmable /CAS Latency
-. Device /CAS Latency : 2, 3 clocks
-. DIMM /CAS Latency : 3, 4 clocks (Registered mode)
ORDERING INFORMATION
PART NO.
HYM7V73AC1601BTNGC-75
MAX.
FREQUENCY
133MHz
INTERNAL
BANK
4 Banks
REF.
4K
POWER
Normal
SDRAM
PACKAGE
TSOP-II
PLATING
Gold
This document is a general product description and is subject to change without notice. Hynix Semiconductor does not
assume any responsibility for use of circuits described. No patent licenses are implied.
1
Rev. 0.2/Dec. 01
