HYM7V65801BTFG Datasheet

  • HYM7V65801BTFG

  • 8Mx64|3.3V|P/S|x8|SDR SDRAM - Unbuffered DIMM 64MB

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

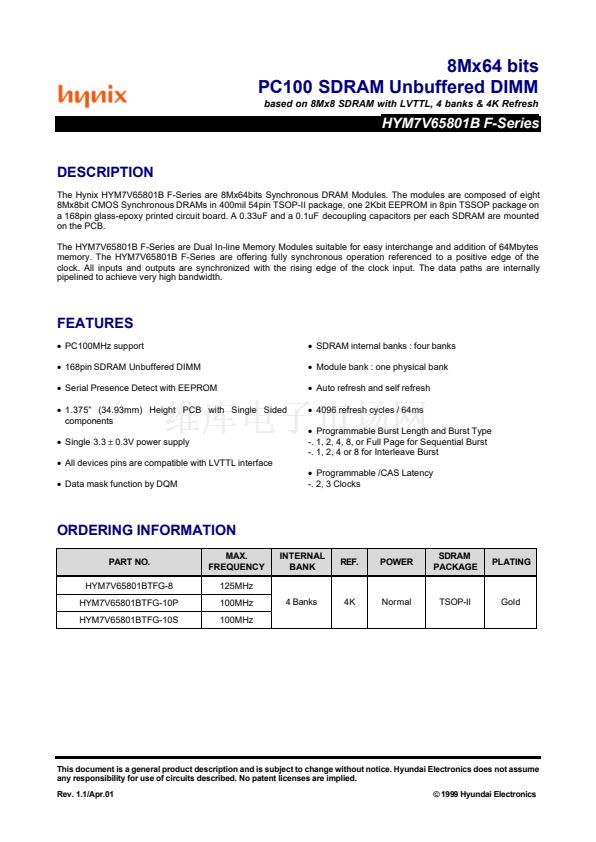

8Mx64 bits
PC100 SDRAM Unbuffered DIMM
based on 8Mx8 SDRAM with LVTTL, 4 banks & 4K Refresh
HYM7V65801B F-Series
DESCRIPTION
The Hynix HYM7V65801B F-Series are 8Mx64bits Synchronous DRAM Modules. The modules are composed of eight
8Mx8bit CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on
a 168pin glass-epoxy printed circuit board. A 0.33uF and a 0.1uF decoupling capacitors per each SDRAM are mounted
on the PCB.
The HYM7V65801B F-Series are Dual In-line Memory Modules suitable for easy interchange and addition of 64Mbytes
memory. The HYM7V65801B F-Series are offering fully synchronous operation referenced to a positive edge of the
clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally
pipelined to achieve very high bandwidth.
FEATURES
鈥?/div>
PC100MHz support
鈥?/div>
168pin SDRAM Unbuffered DIMM
鈥?/div>

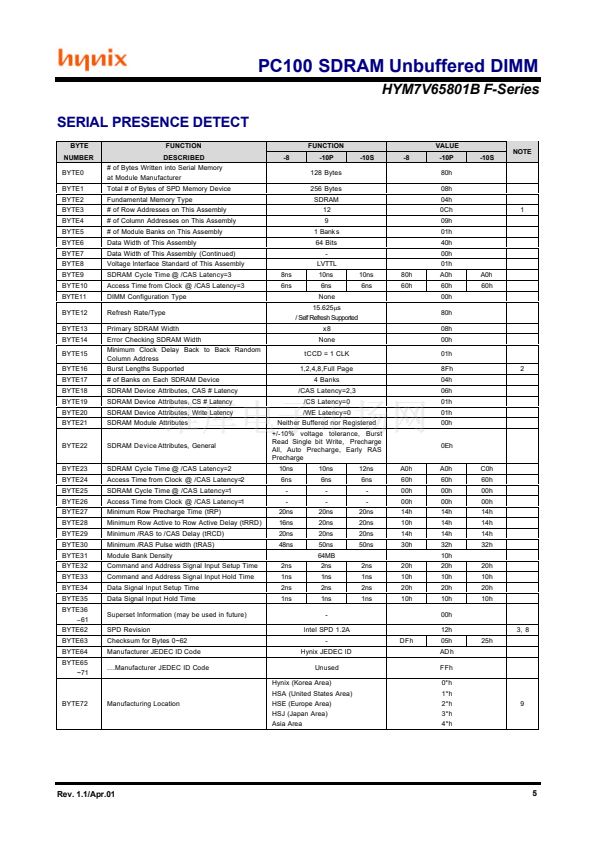

Serial Presence Detect with EEPROM
鈥?/div>
1.375鈥?(34.93mm) Height PCB with Single Sided
components
鈥?/div>
Single 3.3
鹵
0.3V power supply
鈥?/div>
All devices pins are compatible with LVTTL interface
鈥?/div>
Data mask function by DQM
鈥?/div>
SDRAM internal banks : four banks
鈥?/div>
Module bank : one physical bank
鈥?/div>
Auto refresh and self refresh
鈥?/div>
4096 refresh cycles / 64ms
鈥?/div>
Programmable Burst Length and Burst Type
-. 1, 2, 4, 8, or Full Page for Sequential Burst
-. 1, 2, 4 or 8 for Interleave Burst
鈥?/div>
Programmable /CAS Latency
-. 2, 3 Clocks
ORDERING INFORMATION
PART NO.
HYM7V65801BTFG-8
HYM7V65801BTFG-10P
HYM7V65801BTFG-10S
MAX.
FREQUENCY
125MHz
100MHz
100MHz
4 Banks
4K
Normal
TSOP-II
Gold
INTERNAL
BANK
REF.
POWER
SDRAM
PACKAGE
PLATING
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume
any responsibility for use of circuits described. No patent licenses are implied.
Rev. 1.1/Apr.01
漏1999
Hyundai Electronics
