HYM72V32M636T6 Datasheet

  • HYM72V32M636T6

  • 32Mx64|3.3V|H|x8|SDR SDRAM - SO DIMM 256MB

  • 13頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

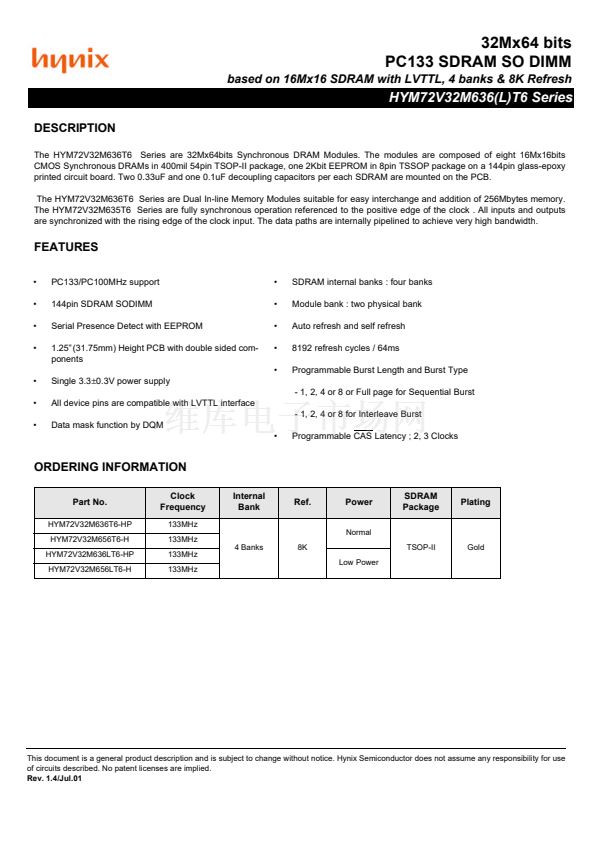

32Mx64 bits
PC133 SDRAM SO DIMM
based on 16Mx16 SDRAM with LVTTL, 4 banks & 8K Refresh
HYM72V32M636(L)T6 Series
DESCRIPTION
The HYM72V32M636T6 Series are 32Mx64bits Synchronous DRAM Modules. The modules are composed of eight 16Mx16bits
CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 144pin glass-epoxy
printed circuit board. Two 0.33uF and one 0.1uF decoupling capacitors per each SDRAM are mounted on the PCB.
The HYM72V32M636T6 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 256Mbytes memory.
The HYM72V32M635T6 Series are fully synchronous operation referenced to the positive edge of the clock . All inputs and outputs
are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
PC133/PC100MHz support
144pin SDRAM SODIMM
Serial Presence Detect with EEPROM
1.25鈥?(31.75mm) Height PCB with double sided com-
ponents
Single 3.3鹵0.3V power supply
- 1, 2, 4 or 8 or Full page for Sequential Burst
鈥?/div>
鈥?/div>
All device pins are compatible with LVTTL interface
- 1, 2, 4 or 8 for Interleave Burst
Data mask function by DQM
鈥?/div>
Programmable CAS Latency ; 2, 3 Clocks
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SDRAM internal banks : four banks
Module bank : two physical bank
Auto refresh and self refresh
8192 refresh cycles / 64ms
Programmable Burst Length and Burst Type
ORDERING INFORMATION
Part No.
HYM72V32M636T6-HP
HYM72V32M656T6-H
HYM72V32M636LT6-HP
HYM72V32M656LT6-H
Clock
Frequency
133MHz
Internal
Bank
Ref.
Power
SDRAM
Package
Plating
Normal
133MHz
4 Banks
133MHz
Low Power
133MHz
8K
TSOP-II
Gold
This document is a general product description and is subject to change without notice. Hynix Semiconductor does not assume any responsibility for use
of circuits described. No patent licenses are implied.
Rev. 1.4/Jul.01
