HYM72V12C736K4 Datasheet

  • HYM72V12C736K4

  • 128Mx72|3.3V|H|x36|SDR SDRAM - Registered DIMM 1GB

  • 15頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

128Mx72 bits
PC133 SDRAM Registered DIMM
with PLL, based on 64Mx4 SDRAM with LVTTL, 4 banks & 8K Refresh
HYM72V12C736(L)K4 Series
DESCRIPTION
The HYM72V12C736K4 Series are 128Mx72bits ECC Synchronous DRAM Modules. The modules are composed of thirty six
64Mx4bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II stack package, one 2Kbit EEPROM in 8pin TSSOP package on a
168pin glass-epoxy printed circuit board. One 0.22uF and one 0.0022uF decoupling capacitors per each SDRAM are mounted on the
PCB.
The HYM72V12C736K4 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 1Gbytes memory. The
HYM72V12C736K4 Series are fully synchronous operation referenced to the positive edge of the clock . All inputs and outputs are
synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
FEATURES
PC133MHz support
168pin SDRAM Registered DIMM

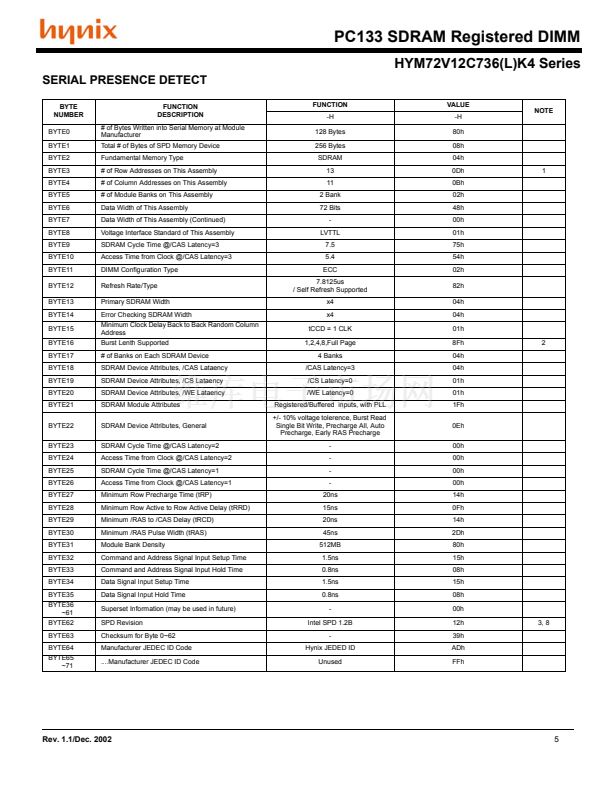

Serial Presence Detect with EEPROM
1.7鈥?(43.18mm) Height PCB with double sided com-
ponents
Single 3.3鹵0.3V power supply
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SDRAM internal banks : four banks
Module bank : two physical banks
Auto refresh and self refresh
8192 refresh cycles / 64ms
Programmable Burst Length and Burst Type
- 1, 2, 4 or 8 or Full page for Sequential Burst
鈥?/div>
鈥?/div>
鈥?/div>
All device pins are compatible with LVTTL interface
- 1, 2, 4 or 8 for Interleave Burst
Data mask function by DQM
鈥?/div>
Programmable CAS Latency ; 2, 3 Clocks
ORDERING INFORMATION
Part No.
HYM72V12C736K4-H
HYM72V12C736LK4-H
Clock
Frequency
133MHz
Internal
Bank
4 Banks
Ref.
8K
Power
Normal
L-Part
SDRAM
Package
TSOP-II
Plating
Gold
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume any responsibility for use of
circuits described. No patent licenses are implied.
Rev. 1.1/Dec. 2002
