HYM532410CSLM-60 Datasheet

  • HYM532410CSLM-60

  • x32 Fast Page Mode DRAM Module

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HYM532410C M-Series
4Mx32 bit FP DRAM MODULE
based on 4Mx4 DRAM, 5V, 2K-Refresh
GENERAL DESCRIPTION
The HYM532410C M-Series is a 4Mx32-bit Fast Page mode CMOS DRAM module consisting of eight
HY5117400C in 24/26 pin SOJ on a 72 pin glass-epoxy printed circuit board. 0.1碌F and 0.01碌F decoupling
capacitors are mounted for each DRAM.
The HYM532410CM is Tin plated and HYM532410CMG is Gold plated socket type Single In-line Memory
Module suitable for easy interchange and addition of 16M byte memory.
FEATURES
鈥?/div>
72-Pin SIMM
鈥?/div>
Fast Page Mode Operation
鈥?/div>
/CAS-before-/RAS, /RAS-only,
Hidden and Self refresh capability
鈥?/div>
2048 refresh cycles / 256ms (SL-part)
2048 refresh cycles / 32ms
鈥?/div>
Fast access time and cycle time
Speed
50
60
70
tRAC
50ns
60ns
70ns
tCAC
13ns
15ns
18ns
tPC
35ns
40ns
45ns
鈥?/div>
Single power supply of 5.0V
鹵
10%
鈥?/div>
Low power dissipation
Max. self-refresh
: 13.2mW (SL-part)
Max. battery back-up : 22.0mW (SL-part)
Max. CMOS standby : 13.2mW (SL-part)
44.0mW
Max. TTL standby : 88.0mW
Max. operating
Speed
50
60
70
Power
6.38W
5.28W
4.40W
鈥?/div>
TTL compatible inputs and outputs
鈥?/div>

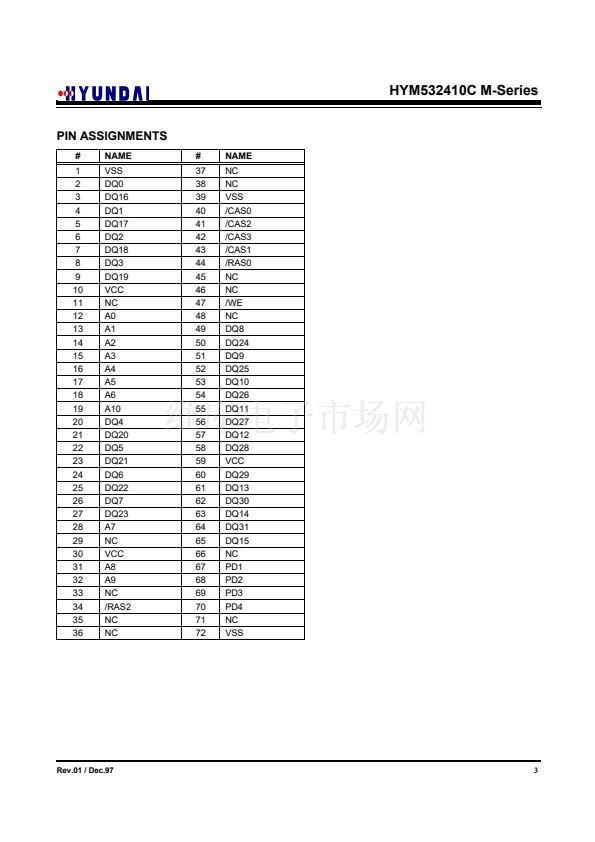

JEDEC standard pinout
ORDERING INFORMATION
PART NUMBER
HYM532410CM
HYM532410CMG
SPEED
50/60/70
50/60/70
FEATURES
FP, 2K, 5V, SOJ
FP, 2K, 5V, SOJ
PACKAGE
SIMM
SIMM
PLATING
Tin
Gold
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume
any responsibility for use of circuits described. No patent licenses are implied.
Rev.01 / Dec.97
漏1997
Hyundai Semiconductor
