HY57V283220T-I Datasheet

  • HY57V283220T-I

  • 4Mx32|3.3V|4K|55/6/7/8/P/S|SDR SDRAM - 128M

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HY57V283220T-I/ HY5V22F-I
4 Banks x 1M x 32Bit Synchronous DRAM
DESCRIPTION
The Hynix HY57V283220T-I / HY5V22F-I is a 134,217,728-bit CMOS Synchronous DRAM, ideally suited for the mem-
ory applications which require wide data I/O and high bandwidth. HY57V283220T-I / HY5V22F-I is organized as
4banks of 1,048,576x32.
HY57V283220T-I / HY5V22F-I is offering fully synchronous operation referenced to a positive edge of the clock. All
inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to
achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.
Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write
cycles initiated by a single control command (Burst length of 1,2,4,8 or full page), and the burst count
sequence(sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate
command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipelined
design is not restricted by a `2N` rule.)
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
JEDEC standard 3.3V power supply
All device pins are compatible with LVTTL interface

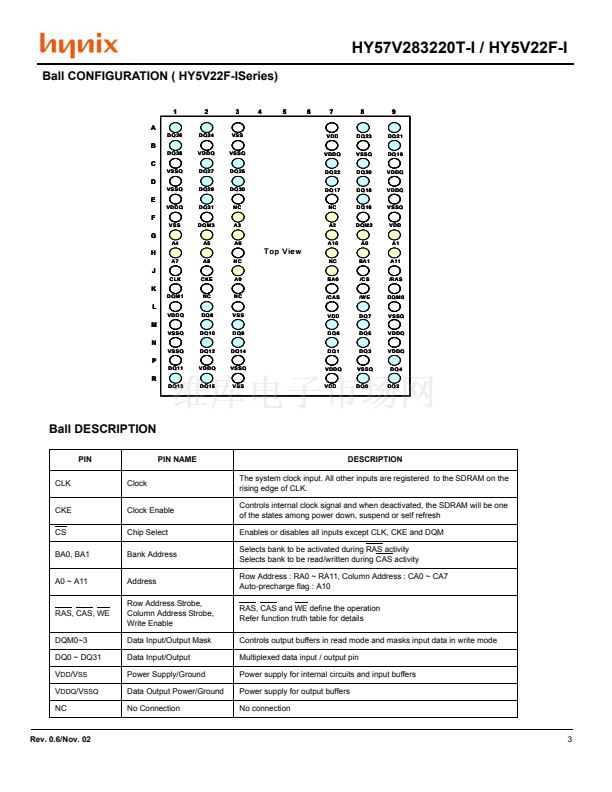

86TSOP-II, 90Ball FBGA with 0.8mm of pin pitch
All inputs and outputs referenced to positive edge of
system clock
Data mask function by DQM0,1,2 and 3
鈥?/div>
鈥?/div>
Internal four banks operation
鈥?/div>
Burst Read Single Write operation
Programmable CAS Latency ; 2, 3 Clocks
鈥?/div>
鈥?/div>
鈥?/div>
Auto refresh and self refresh
4096 refresh cycles / 64ms
Programmable Burst Length and Burst Type
- 1, 2, 4, 8 or full page for Sequential Burst
- 1, 2, 4 or 8 for Interleave Burst
鈥?/div>
ORDERING INFORMATION
Part No.
HY57V283220(L)T-5I
HY5V22(L)F-5I
HY57V283220(L)T-55I
HY5V22(L)F-55I
HY57V283220(L)T-6I
HY5V22(L)F-6I
HY57V283220(L)T-7I
HY5V22(L)F-7I
HY57V283220(L)T-8I
HY5V22(L)F-8I
HY57V283220(L)T-PI
HY5V22(L)F-PI
HY57V283220(L)T-SI
HY5V22(L)F-SI
Clock Frequency
200MHz
183MHz
166MHz
143MHz
125MHz
100MHz
100MHz
Organization
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
4Banks x 1Mbits
x32
Interface
LVTTL
LVTTL
LVTTL
LVTTL
LVTTL
LVTTL
LVTTL
Package
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
86TSOP-II
90Ball FBGA
This document is a general product description and is subject to change without notice. Hynix Semiconductor Inc. does not assume
any responsibility for use of circuits described. No patent licenses are implied.
Rev. 0.6/Nov. 02
