HT82M398A(16DIP) Datasheet

  • HT82M398A(16DIP)

  • Controller Miscellaneous - Datasheet Reference

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

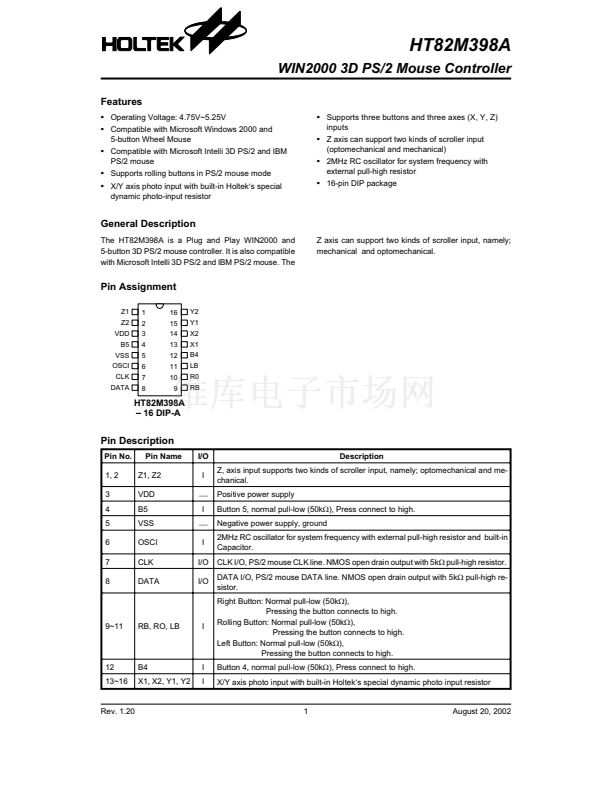

HT82M398A
WIN2000 3D PS/2 Mouse Controller
Features
路
Operating Voltage: 4.75V~5.25V
路
Compatible with Microsoft Windows 2000 and
路
Supports three buttons and three axes (X, Y, Z)
inputs
路
Z axis can support two kinds of scroller input
5-button Wheel Mouse
路
Compatible with Microsoft Intelli 3D PS/2 and IBM
(optomechanical and mechanical)
路
2MHz RC oscillator for system frequency with
PS/2 mouse
路
Supports rolling buttons in PS/2 mouse mode
路
X/Y axis photo input with built-in Holtek壟s special
external pull-high resistor
路
16-pin DIP package
dynamic photo-input resistor
General Description
The HT82M398A is a Plug and Play WIN2000 and
5-button 3D PS/2 mouse controller. It is also compatible
with Microsoft Intelli 3D PS/2 and IBM PS/2 mouse. The
Z axis can support two kinds of scroller input, namely;
mechanical and optomechanical.
Pin Assignment
Z 1
1
2
3
4
5
6
7
8
Z 2
V D D
B 5
V S S
O S C I
C L K
D A T A
1 6
1 5
1 4
1 3
1 2
1 1
1 0
9
Y 2
Y 1
X 2
X 1
B 4
L B
R 0
R B
H T 8 2 M 3 9 8 A
1 6 D IP -A
Pin Description
Pin No.
1, 2
3
4
5
6
7
8
Pin Name
Z1, Z2
VDD
B5
VSS
OSCI
CLK
DATA
I/O
I
戮
I
戮
I
I/O
I/O
Description
Z, axis input supports two kinds of scroller input, namely; optomechanical and me-
chanical.
Positive power supply
Button 5, normal pull-low (50kW), Press connect to high.
Negative power supply,
ground
2MHz RC oscillator for system frequency with external pull-high resistor and built-in
Capacitor.
CLK I/O, PS/2 mouse CLK line. NMOS open drain output with 5kW pull-high resistor.
DATA I/O, PS/2 mouse DATA line. NMOS open drain output with 5kW pull-high re-
sistor.
Right Button: Normal pull-low (50kW),
Pressing the button connects to high.
Rolling Button: Normal pull-low (50kW),
Pressing the button connects to high.
Left Button: Normal pull-low (50kW),
Pressing the button connects to high.
Button 4, normal pull-low (50kW), Press connect to high.
X/Y axis photo input with built-in Holtek壟s special dynamic photo input resistor
9~11
RB, RO, LB
I
12
13~16
B4
X1, X2, Y1, Y2
I
I
Rev. 1.20
1
August 20, 2002
