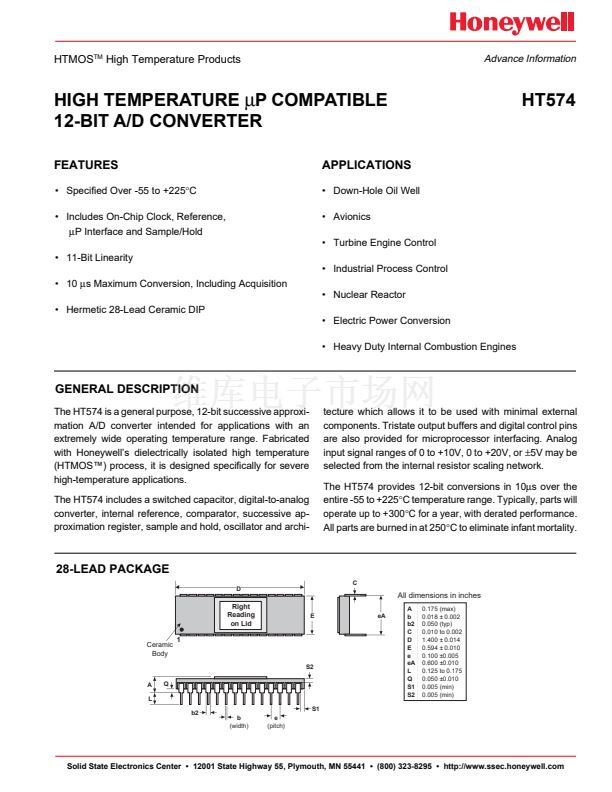

HTMOS

TM

High Temperature Products

Advance Information

HIGH TEMPERATURE

碌

P COMPATIBLE

12-BIT A/D CONVERTER

FEATURES

鈥?Specified Over -55 to +225擄C

鈥?Includes On-Chip Clock, Reference,

碌P

Interface and Sample/Hold

鈥?Turbine Engine Control

鈥?11-Bit Linearity

鈥?Industrial Process Control

鈥?10

碌s

Maximum Conversion, Including Acquisition

鈥?Nuclear Reactor

鈥?Hermetic 28-Lead Ceramic DIP

鈥?Electric Power Conversion

鈥?Heavy Duty Internal Combustion Engines

HT574

APPLICATIONS

鈥?Down-Hole Oil Well

鈥?Avionics

GENERAL DESCRIPTION

The HT574 is a general purpose, 12-bit successive approxi-

mation A/D converter intended for applications with an

extremely wide operating temperature range. Fabricated

with Honeywell鈥檚 dielectrically isolated high temperature

(HTMOS鈩? process, it is designed specifically for severe

high-temperature applications.

The HT574 includes a switched capacitor, digital-to-analog

converter, internal reference, comparator, successive ap-

proximation register, sample and hold, oscillator and archi-

tecture which allows it to be used with minimal external

components. Tristate output buffers and digital control pins

are also provided for microprocessor interfacing. Analog

input signal ranges of 0 to +10V, 0 to +20V, or

鹵5V

may be

selected from the internal resistor scaling network.

The HT574 provides 12-bit conversions in 10碌s over the

entire -55 to +225擄C temperature range. Typically, parts will

operate up to +300擄C for a year, with derated performance.

All parts are burned in at 250擄C to eliminate infant mortality.

28-LEAD PACKAGE

D

C

All dimensions in inches

Right

Reading

on Lid

Ceramic

Body

1

E

eA

A

b

b2

C

D

E

e

eA

L

Q

S1

S2

0.175 (max)

0.018 鹵 0.002

0.050 (typ)

0.010 to 0.002

1.400 鹵 0.014

0.594 鹵 0.010

0.100 鹵0.005

0.600 鹵0.010

0.125 to 0.175

0.050 鹵0.010

0.005 (min)

0.005 (min)

S2

A

L

b2

S1

b

(width)

e

(pitch)

Q

Solid State Electronics Center 鈥?12001 State Highway 55, Plymouth, MN 55441 鈥?(800) 323-8295 鈥?http://www.ssec.honeywell.com
