HT48E06 Datasheet

  • HT48E06

  • 8-Bit I/O Type MCU (With EEPROM)

  • 43頁

  • HOLTEK

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

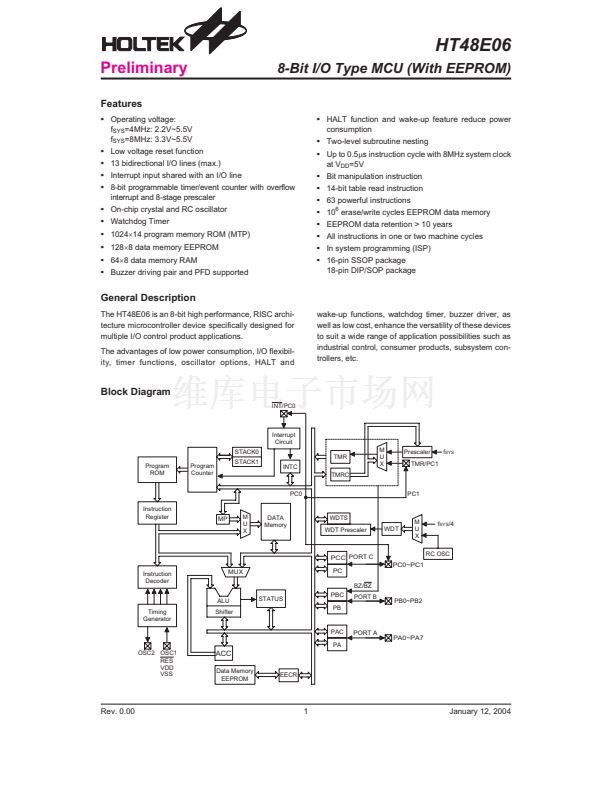

HT48E06
Preliminary
Features
路
Operating voltage:
路
HALT function and wake-up feature reduce power
8-Bit I/O Type MCU (With EEPROM)
f
SYS
=4MHz: 2.2V~5.5V
f
SYS
=8MHz: 3.3V~5.5V
路
Low voltage reset function
路
13 bidirectional I/O lines (max.)
路
Interrupt input shared with an I/O line
路
8-bit programmable timer/event counter with overflow
consumption
路
Two-level subroutine nesting
路
Up to 0.5ms instruction cycle with 8MHz system clock
at V
DD
=5V
路
Bit manipulation instruction
路
14-bit table read instruction
路
63 powerful instructions
路
10
6
erase/write cycles EEPROM data memory
路
EEPROM data retention > 10 years
路
All instructions in one or two machine cycles
路
In system programming (ISP)
路
16-pin SSOP package
interrupt and 8-stage prescaler
路
On-chip crystal and RC oscillator
路
Watchdog Timer
路
1024麓14 program memory ROM (MTP)
路
128麓8 data memory EEPROM
路
64麓8 data memory RAM
路
Buzzer driving pair and PFD supported
18-pin DIP/SOP package
General Description
The HT48E06 is an 8-bit high performance, RISC archi-
tecture microcontroller device specifically designed for
multiple I/O control product applications.
The advantages of low power consumption, I/O flexibil-
ity, timer functions, oscillator options, HALT and
wake-up functions, watchdog timer, buzzer driver, as
well as low cost, enhance the versatility of these devices
to suit a wide range of application possibilities such as
industrial control, consumer products, subsystem con-
trollers, etc.
Block Diagram
IN T /P C 0
In te rru p t
C ir c u it
S T A C K 0
P ro g ra m
R O M
P ro g ra m
C o u n te r
S T A C K 1
IN T C
T M R
T M R C
M
U
X
P r e s c a le r
T M R /P C 1
f
S
Y S
P C 0
In s tr u c tio n
R e g is te r
M
U
X
P C 1
M P
D A T A
M e m o ry
W D T S
W D T P r e s c a le r
W D T
M
U
X
f
S
Y S
/4
P C C
In s tr u c tio n
D e c o d e r
A L U
T im in g
G e n e ra to r
S h ifte r
M U X
P C
P O R T C
P C 0 ~ P C 1
B Z /B Z
R C
O S C
S T A T U S
P B C
P B
P O R T B
P B 0 ~ P B 2
P A C
O S C 2
O S
R E
V D
V S
S
C 1
S
D
P O R T A
A C C
D a ta M e m o ry
E E P R O M
E E C R
P A
P A 0 ~ P A 7
Rev. 0.00
1
January 12, 2004
