HT48C70-1 Datasheet

  • HT48C70-1

  • I/O Type 8-Bit MCU

  • 40頁

  • HOLTEK

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

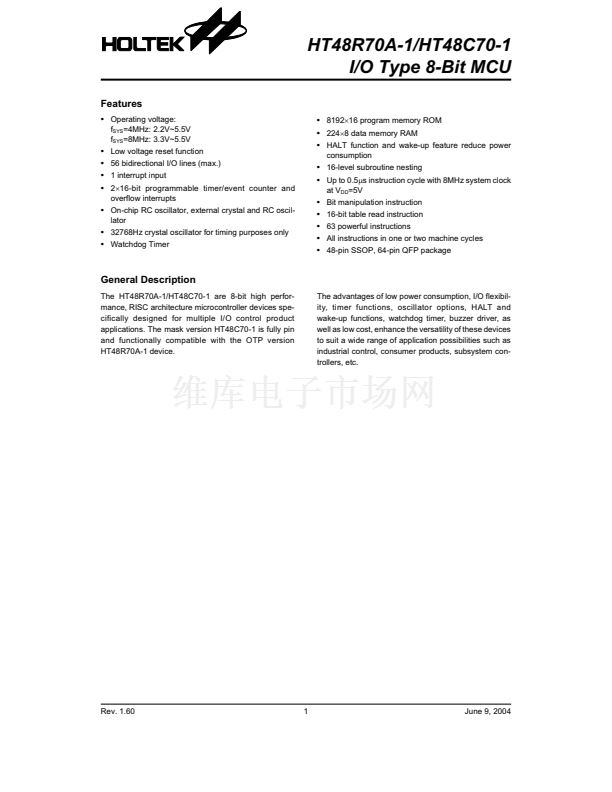

HT48R70A-1/HT48C70-1
I/O Type 8-Bit MCU
Features
路
Operating voltage:
路
8192麓16 program memory ROM
路
224麓8 data memory RAM
路
HALT function and wake-up feature reduce power
f
SYS
=4MHz: 2.2V~5.5V
f
SYS
=8MHz: 3.3V~5.5V
路
Low voltage reset function
路

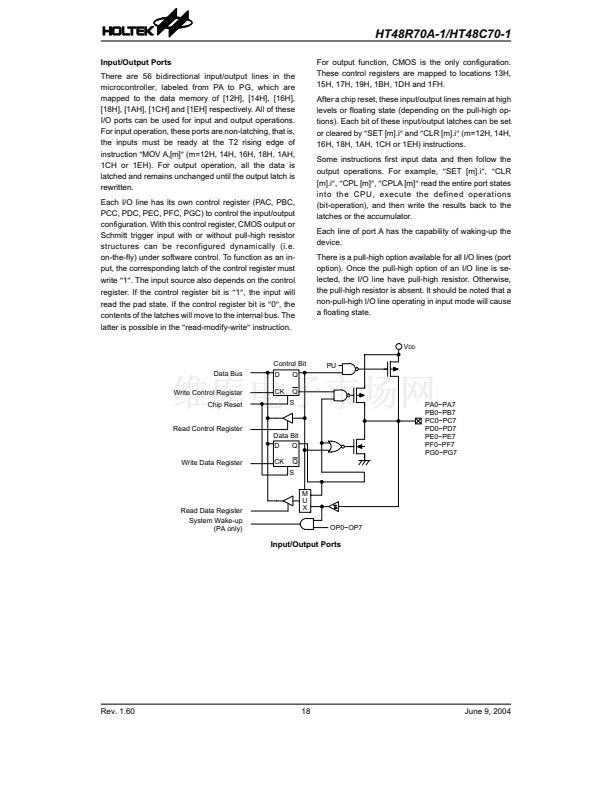

56 bidirectional I/O lines (max.)
路
1 interrupt input
路

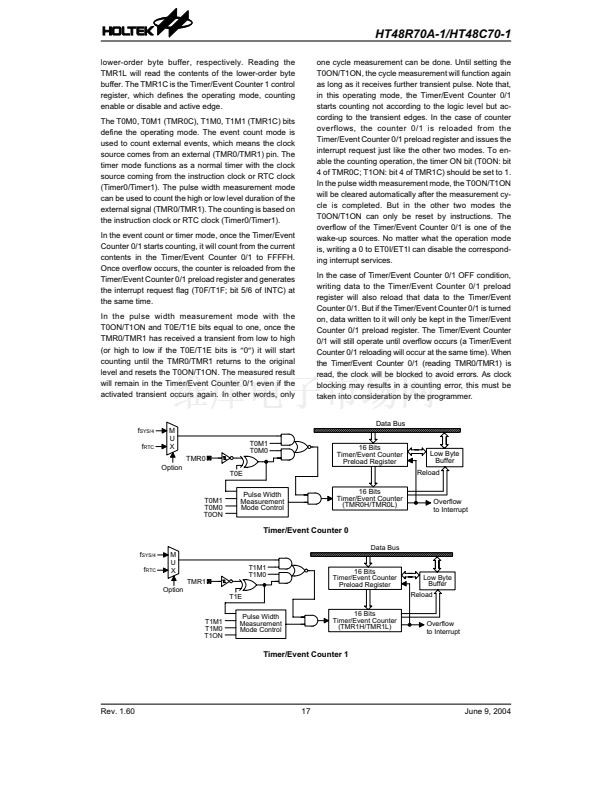

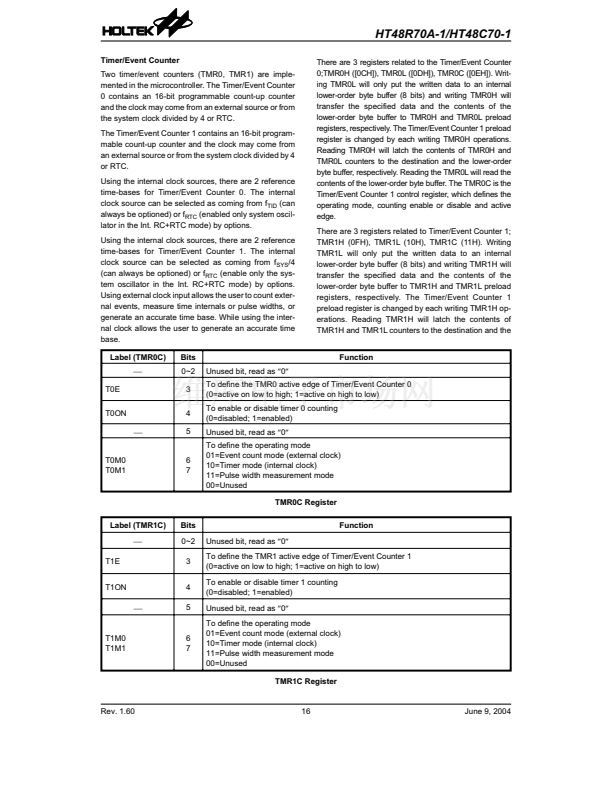

2麓16-bit programmable timer/event counter and
consumption
路
16-level subroutine nesting
路
Up to 0.5ms instruction cycle with 8MHz system clock
at V
DD
=5V
路
Bit manipulation instruction
路
16-bit table read instruction
路

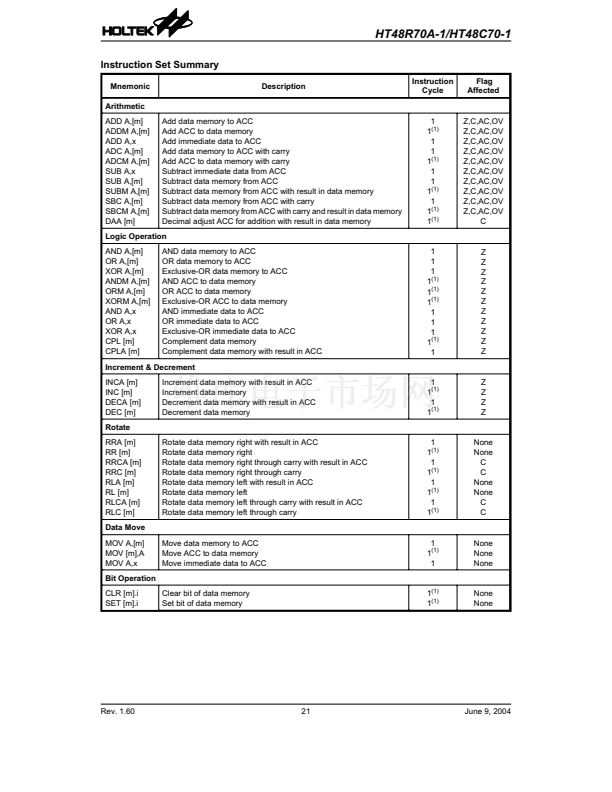

63 powerful instructions
路
All instructions in one or two machine cycles
路

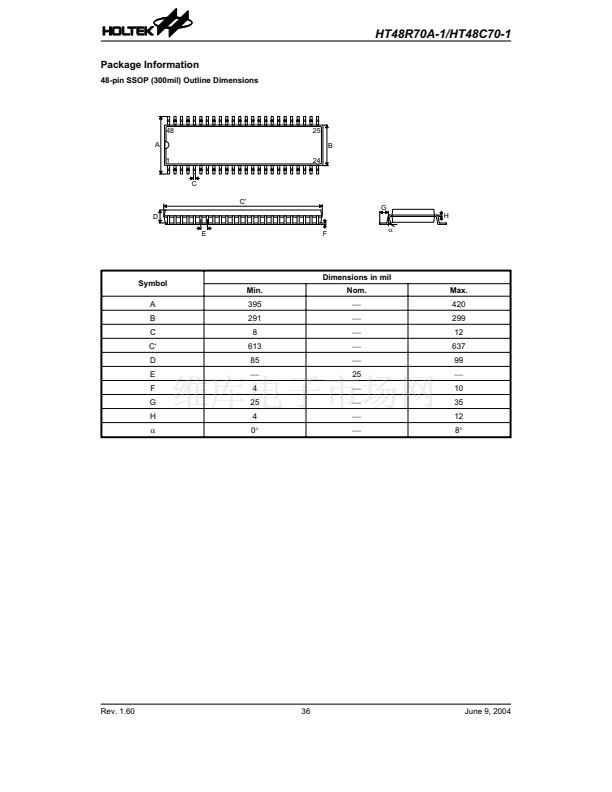

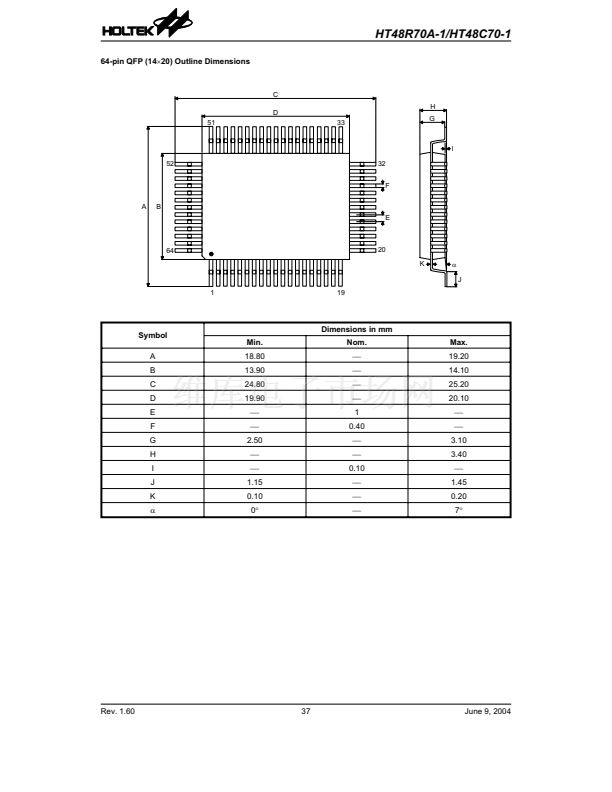

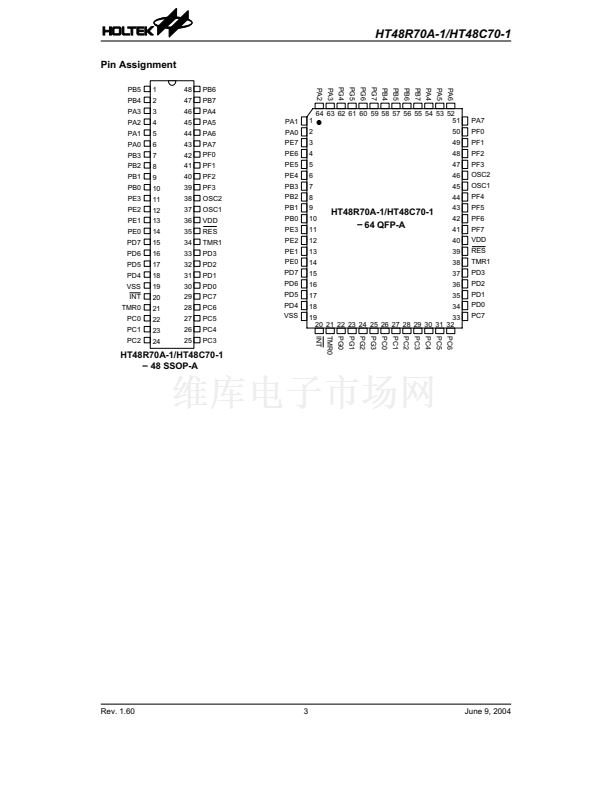

48-pin SSOP, 64-pin QFP package
overflow interrupts
路
On-chip RC oscillator, external crystal and RC oscil-
lator
路
32768Hz crystal oscillator for timing purposes only
路
Watchdog Timer
General Description
The HT48R70A-1/HT48C70-1 are 8-bit high perfor-
mance, RISC architecture microcontroller devices spe-
cifically designed for multiple I/O control product
applications. The mask version HT48C70-1 is fully pin
and functionally compatible with the OTP version
HT48R70A-1 device.
The advantages of low power consumption, I/O flexibil-
ity, timer functions, oscillator options, HALT and
wake-up functions, watchdog timer, buzzer driver, as
well as low cost, enhance the versatility of these devices
to suit a wide range of application possibilities such as
industrial control, consumer products, subsystem con-
trollers, etc.
Rev. 1.60
1
June 9, 2004
