HT46C62 Datasheet

  • HT46C62

  • A/D with LCD Type 8-Bit MCU

  • 46頁

  • HOLTEK

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HT46R62/HT46C62
A/D with LCD Type 8-Bit MCU
Technical Document
路
Tools Information
路
FAQs
路
Application Note
-
HA0003E Communicating between the HT48 & HT46 Series MCUs and the HT93LC46 EEPROM
-
HA0004E HT48 & HT46 MCU UART Software Implementation Method
-
HA0005E Controlling the I2C bus with the HT48 & HT46 MCU Series
-
HA0047E An PWM application example using the HT46 series of MCUs
Features
路
Operating voltage:
路
Watchdog Timer
路
Buzzer output
路
On-chip crystal, RC and 32768Hz crystal oscillator
路
HALT function and wake-up feature reduce power
f
SYS
=4MHz: 2.2V~5.5V
f
SYS
=8MHz: 3.3V~5.5V
路
20 bidirectional I/O lines
(PA, PB0~PB5, PD0~PD2, PD4~PD6)
路
Two external interrupt input
路
One 8-bit programmable timer/event counter with
consumption
路
6-level subroutine nesting
路
6 channels 9-bit resolution A/D converter
路
3-channel 8-bit PWM output shared with 3 I/O lines
路
Bit manipulation instruction
路
16-bit table read instruction
路
Up to 0.5ms instruction cycle with 8MHz system clock
路
63 powerful instructions
路
All instructions in 1 or 2 machine cycles
路
Low voltage reset/detector function
路

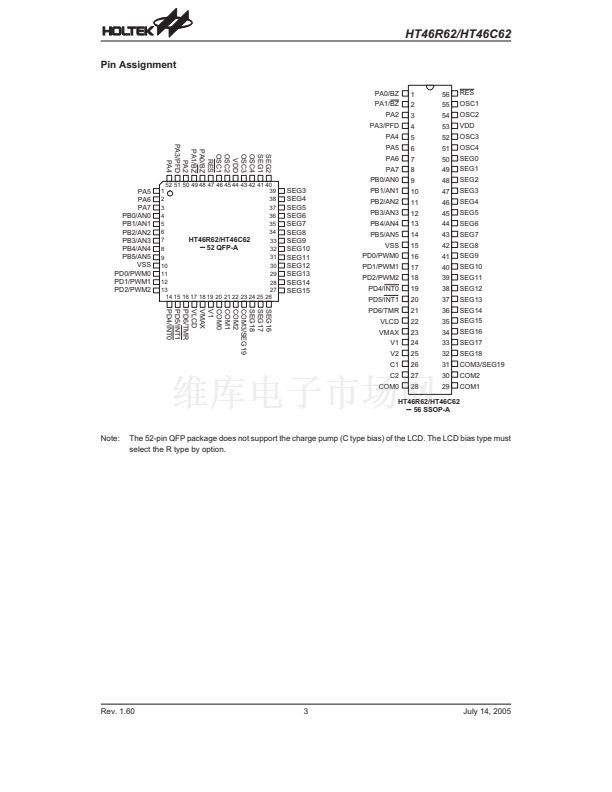

52-pin QFP, 56-pin SSOP packages
PFD (programmable frequency divider) function
路
LCD driver with 20麓3 or 19麓4 segments
(logical output option for SEG0~SEG15)
路
2K麓14 program memory
路
88麓8 data memory RAM
路
Supports PFD for sound generation
路
Real Time Clock (RTC)
路
8-bit prescaler for RTC
General Description
The HT46R62/HT46C62 are 8-bit, high performance,
RISC architecture microcontroller devices specifically
designed for A/D product applications that interface di-
rectly to analog signals and which require LCD Inter-
face. The mask version HT46C62 is fully pin and
functionally compatible with the OTP version HT46R62
device.
The advantages of low power consumption, I/O flexibil-
ity, timer functions, oscillator options, multi-channel A/D
Converter, Pulse Width Modulation function, HALT and
wake-up functions, in addition to a flexible and
configurable LCD interface enhance the versatility of
these devices to control a wide range of applications re-
quiring analog signal processing and LCD interfacing,
such as electronic metering, environmental monitoring,
handheld measurement tools, motor driving, etc., for
both industrial and home appliance application areas.
Rev. 1.60
1
July 14, 2005
