HSMR-C197 Datasheet

  • HSMR-C197

  • Agilent HSMx-C1xx High Performance Chip LED

  • 12頁

  • AGILENT   AGILENT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

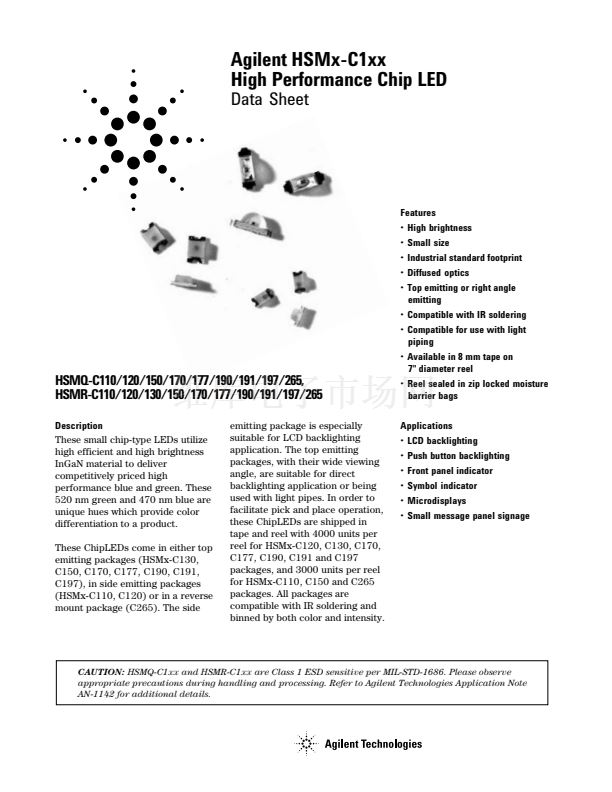

Agilent HSMx-C1xx
High Performance Chip LED
Data Sheet
Features
鈥?High brightness
鈥?Small size
鈥?Industrial standard footprint
鈥?Diffused optics
鈥?Top emitting or right angle
emitting
鈥?Compatible with IR soldering
鈥?Compatible for use with light
piping
鈥?Available in 8 mm tape on
7" diameter reel
鈥?Reel sealed in zip locked moisture
barrier bags
Applications
鈥?LCD backlighting
鈥?Push button backlighting
鈥?Front panel indicator
鈥?Symbol indicator
鈥?Microdisplays
鈥?Small message panel signage
HSMQ-C110/120/150/170/177/190/191/197/265,
HSMR-C110/120/130/150/170/177/190/191/197/265
Description
These small chip-type LEDs utilize
high efficient and high brightness
InGaN material to deliver
competitively priced high
performance blue and green. These
520 nm green and 470 nm blue are
unique hues which provide color
differentiation to a product.
These ChipLEDs come in either top
emitting packages (HSMx-C130,
C150, C170, C177, C190, C191,
C197), in side emitting packages
(HSMx-C110, C120) or in a reverse
mount package (C265). The side
emitting package is especially
suitable for LCD backlighting
application. The top emitting
packages, with their wide viewing
angle, are suitable for direct
backlighting application or being
used with light pipes. In order to

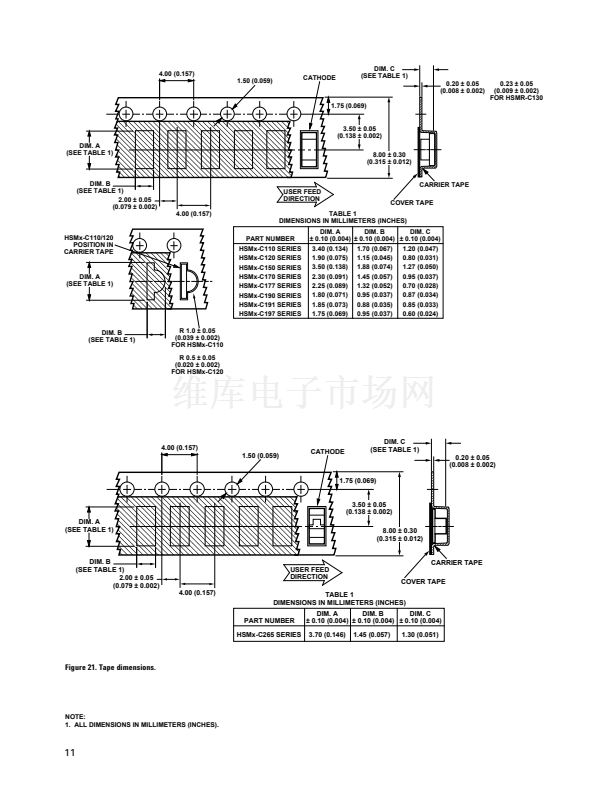

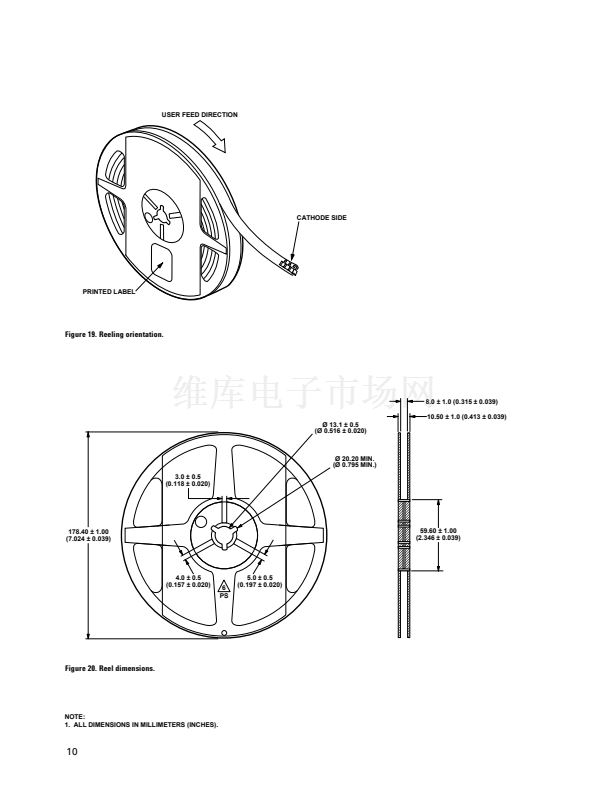

facilitate pick and place operation,
these ChipLEDs are shipped in
tape and reel with 4000 units per
reel for HSMx-C120, C130, C170,
C177, C190, C191 and C197
packages, and 3000 units per reel
for HSMx-C110, C150 and C265
packages. All packages are
compatible with IR soldering and
binned by both color and intensity.
CAUTION:
HSMQ-C1xx and HSMR-C1xx are Class 1 ESD sensitive per MIL-STD-1686. Please observe
appropriate precautions during handling and processing. Refer to Agilent Technologies Application Note
AN-1142 for additional details.

HSMR-C197 產品屬性

  • HSMQ/HSMR- C1xx, C2xxLED Solutions Selection Guide

  • 4,000

  • 光電元件

  • LED -

  • -

  • 藍

  • 145mcd

  • 3.4V

  • 20mA

  • 473nm

  • 469nm

  • 130°

  • 散射，無色

  • 矩形，帶平頂

  • 0603（1608 公制）

  • 1.60mm L x 0.80mm W

  • 0.40mm

  • 表面貼裝

  • 帶卷 (TR)

  • *
