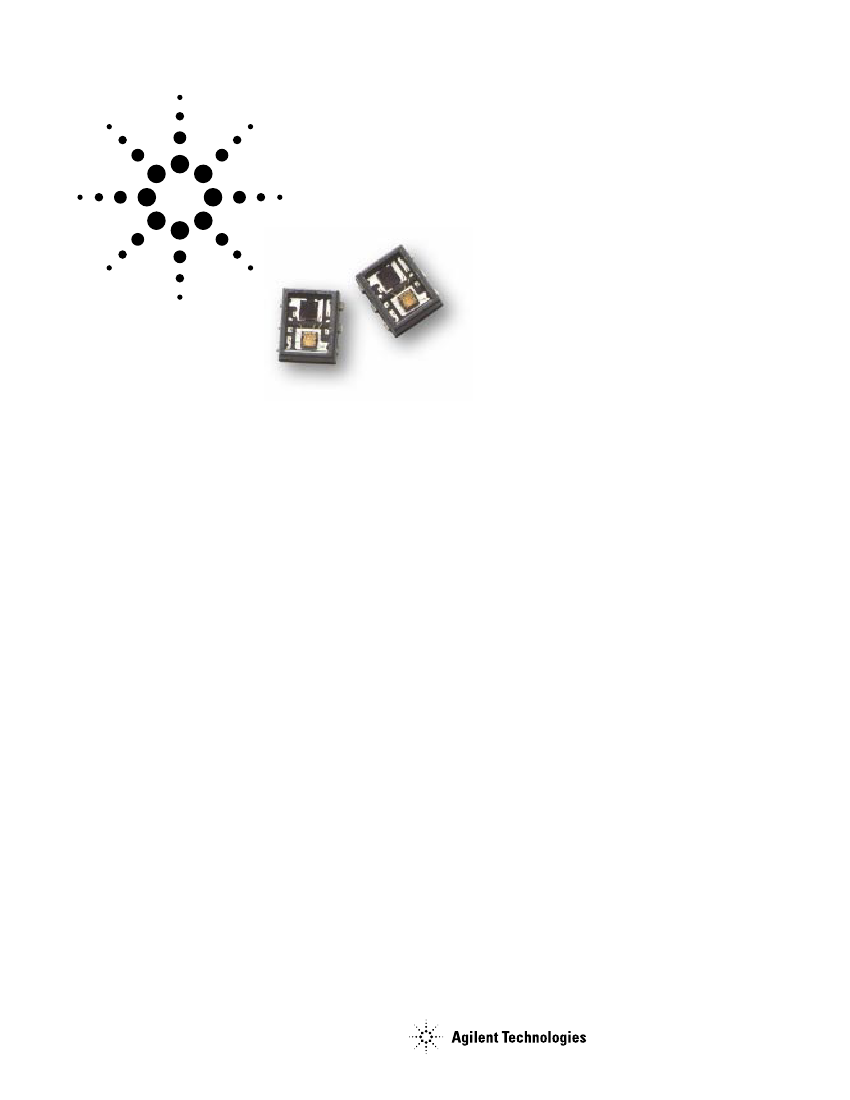

Agilent HSDL-9000

Miniature Surface-Mount

Ambient Light Photo Sensor

Data Sheet

Features

鈥?Excellent responsivity which peaks

in the human luminosity curve at

550 nm

Close responsivity to the human eye

鈥?Miniature PLCC surface-mount

package

Height 鈥?1.1 mm

Width 鈥?4.0 mm

Depth 鈥?3.2 mm

鈥?Ease of design with digital output

Integrated photodiode and

analog to digital output circuitry

鈥?Enable fine control of the backlight

intensity with adjustable sensitivity

control

3 digital levels

An Analog Gain Control

鈥?Minimum power consumption

碌A(chǔ)

typical idle (standby) current

<10 nA typical shutdown current

鈥?Guaranteed temperature

performance

鈥?5擄C to 85擄C

鈥?2.7

鈮?/div>

3.6 V

鈥?Lead-free package

鈥?Low cost

Applications

鈥?Detection of ambient light to control

display backlighting

Mobile devices 鈥?mobile phones,

PDAs

Automotive 鈥?dashboard

Consumer appliances 鈥?audio sets

鈥?Daylight and artificial light exposed

devices

Description

The HSDL-9000 is a low cost,

digital-output ambient light photo

sensor in miniature industry-

standard PLCC lead-free surface-

mount package. It incorporates a

photodiode, which peaks in

human luminosity curve at 550

nm. Hence, it provides an

excellent responsivity that is

close to the response of human

eyes, as shown in Figure 2.

With the options of three digital

levels and an analog Gain Control

pin to fine tune the three

threshold levels to achieve better

sensitivity control, the HSDL-

9000 is ideal for applications in

which the measurement of

ambient light is used to control

display backlighting. Mobile

appliances such as mobile phones

and PDAs that draw heavy

current from the display back-

lighting will benefit from

incorporating the HSDL-9000 in

their designs to reduce the power

consumption significantly.
