HSDL-3610 Datasheet

  • HSDL-3610

  • IrDA 1.0 Data Compliant 115.2Kb/s 3-5V Infrared Transceiver(...

  • 28頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

IrDA
廬
Data Compliant 115.2 kb/s
3 V to 5 V Infrared Transceiver
Technical Data
HSDL-3610#007
HSDL-3610#008
Features
鈥?/div>
Fully Compliant to IrDA 1.0
Physical Layer Specifications
- 9.6 kb/s to 115.2 kb/s
operation
鈥?/div>
Typical Link Distance
>
1.5 m
鈥?/div>
Compatible with HP-SIR
and TV Remote
鈥?/div>
IEC825-Class 1 Eye Safe
鈥?/div>
Low Power Operation Range
- 2.7 V to 5.25 V
鈥?/div>
Small Module Size
- 4.0 x 12.2 x 5.1 mm
(HxWxD)
鈥?/div>
Complete Shutdown
-
TXD, RXD, PIN diode
鈥?/div>
Low Shutdown Current
-
10 nA typical
鈥?/div>
Adjustable Optical Power
Management
-
Adjustable LED drive- current
to maintain link integrity
鈥?/div>
Integrated EMI Shield
-
Excellent noise immunity
鈥?/div>
Edge Detection Input
-
Prevents the LED from long
turn-on time
鈥?/div>
Interface to Various Super
I/O and Controller Devices
鈥?/div>
Designed to Accommodate
Light Loss with Cosmetic
Window
鈥?/div>
Only 2 External Components
are Required
Applications
鈥?/div>
Digital Imaging
-
Digital Still Cameras
- Photo-Imaging Printers
鈥?/div>
Data Communication
-
Notebook Computers
-
Desktop PCs
-
Win CE Handheld Products
-
Personal Digital Assistants
(PDAs)
-
Printers
-
Fax Machines, Photocopiers
-
Screen Projectors
-
Auto PCs
-
Dongles
-
Set-Top Box
鈥?/div>
Telecommunication
Products
-
Cellular Phones
-
Pagers
鈥?/div>
Small Industrial & Medical
Instrumentation
-
General Data Collection
Devices
-
Patient & Pharmaceutical
Data Collection Devices
Functional Block Diagram
V
CC
R1
LEDA (10)
TXD (9)
SP
MD0 (4)
MD1 (5)
HSDL-3610
RXD (8)

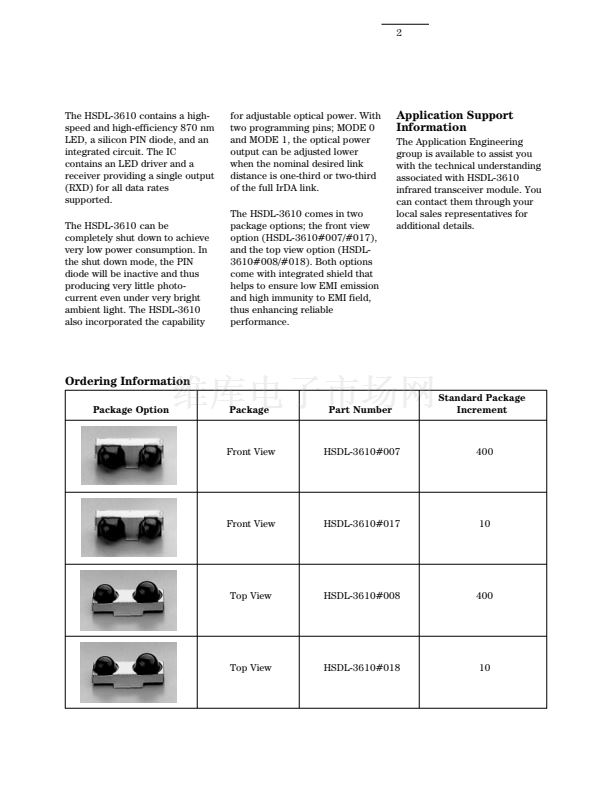

Description
The HSDL-3610 is a low-profile
infrared transceiver module that
provides interface between logic
and IR signals for through-air,
serial, half-duplex IR data link.
The module is compliant to
IrDA Data Physical Layer
Specifications 1.0 and IEC825-
Class 1 Eye Safe.
GND (3)
CX1
GND (7)
CX2
V
CC
(1)
AGND (2)
