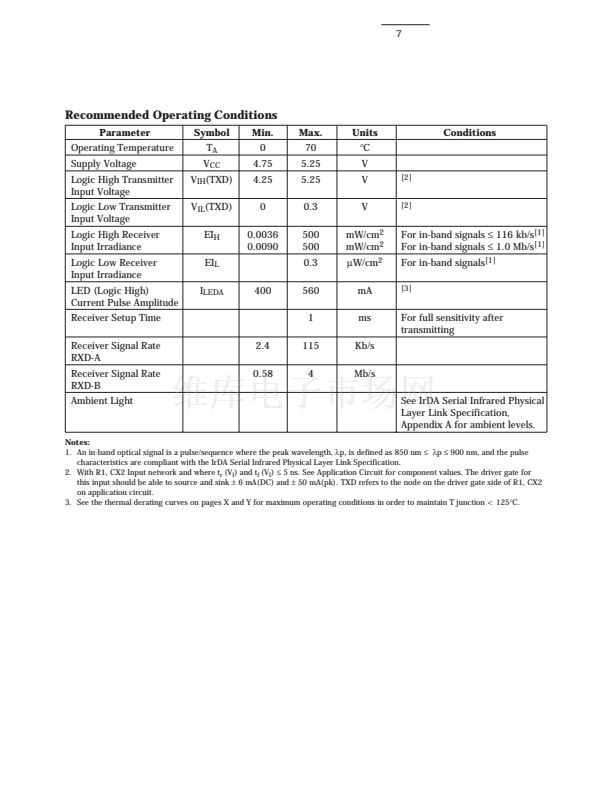

HSDL-2100 Datasheet

  • HSDL-2100

  • Infrared IrDA Compliant Transceiver

  • 16頁

  • AGILENT   AGILENT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Infrared IrDA
廬
Compliant Transceiver
Technical Data
HSDL-2100
Features
鈥?Small Module Package
鈥?height of 5.5 mm max.
鈥?Integrated EMI Shield
鈥?excellent Noise Immunity
鈥?Lower I
LEDA
Current
鈥?IEC825-Class 1 Eye Safe
鈥?Enhanced Reliability
Performance
鈥?Fully Compliant to IrDA 1.1
Specifications
鈥?excellent Nose-to-Nose
operation
鈥?2 Channels:
鈥?2.4 Kb/s to 115.2 Kb/s
鈥?576 Kb/s to 4.0 Mb/s
鈥?Designed to Accommodate
Light Loss with Cosmetic
Windows
鈥?Compatible with ASK,
HP-SIR and TV Remote
鈥?No Mode Programming
Required
鈥?Interfaces to Various Super
I/O and Controller Devices
鈥?Digital Appliances:
Internet Web TVs,
Internet Appliances
鈥?Industrials and Medical
Instrumentation
鈥?General Data Collection
Devices
鈥?Patient and Pharmaceutical
Data Collection
鈥?IR LANs
Description
The HSDL-2100 is a new
generation low-cost Infrared (IR)
transceiver module that provides
the interface between logic and
IR signals for through-air, serial,
half-duplex IR data links and is
compliant to IrDA Physical Layer
Specification 1.1. This module
is also IEC825-Class 1 Eye Safe.
Package
This IR module provides two
output signals, RXD-A for signal
rates from 2.4 Kb/s to 115.2 Kb/s
and RXD-B for signal rates of
0.576 Mb/s to 4.0 Mb/s.
HSDL-2100 consists of the
following basic elements: an
Optical SubAssembly (OSA) and
an Electrical SubAssembly (ESA)
combination with an integrated
EMI shield.

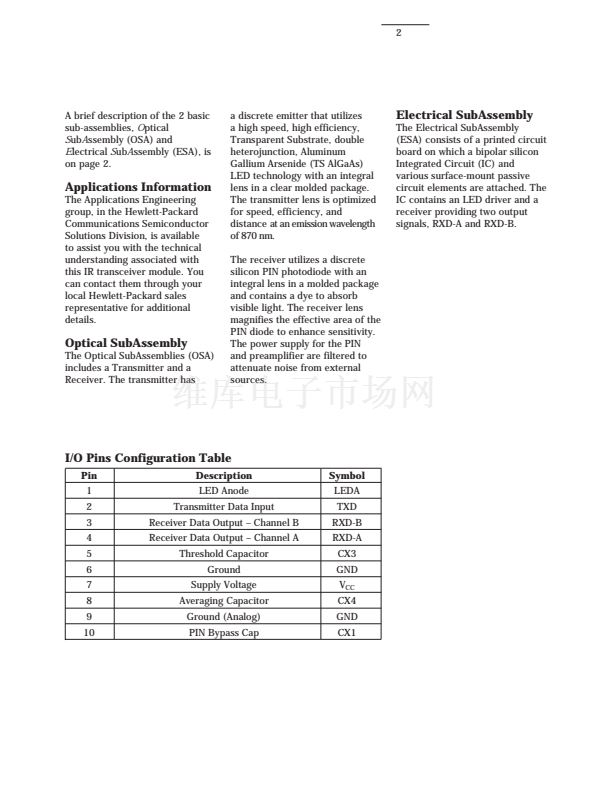

I/O pins configuration table is

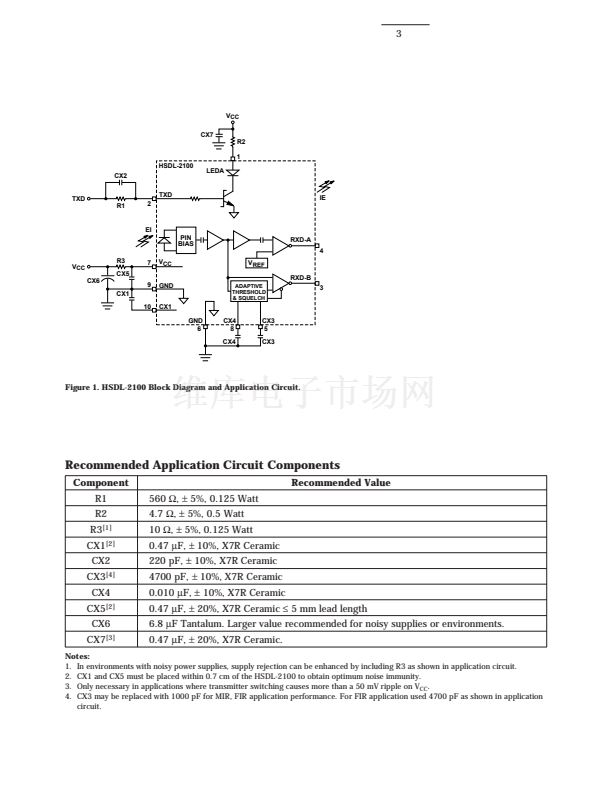

shown on page 2. HSDL-2100
block diagram and recommended
application circuit is illustrated in
Figure 1 on page 3. The IR

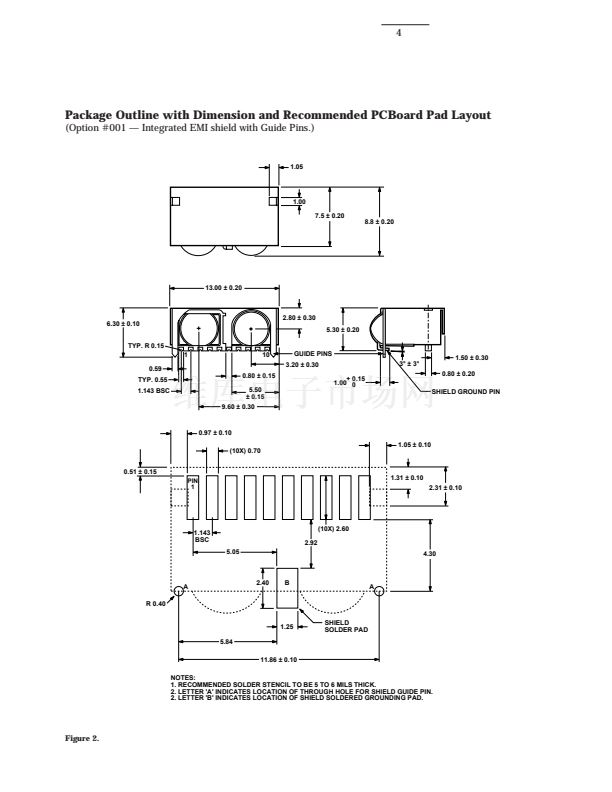

transceiver module package
outline and recommended
PCBoard Pad layout, (Option
#001 鈥?Integrated EMI shield
with guide pins) is illustrated
in Figure 2 on page 4.
Benefits
This combination of an integrated
EMI shield and transceiver sub-
assembly utilizes existing in-
house high-volume assembly
processes ensuring high quality
and high-volume supply. An
integrated EMI shield helps to
ensure low EMI emissions and
high immunity to EMI fields,
enhancing reliable performance.
Applications
鈥?Data Communication:
Notebook Computers,
Subnotebook Computers,
Desktop Computers,
Printers, PDAs, Fax/
Photocopier
鈥?Digital Imaging:
Digital Cameras, Photo
Imaging Printers
