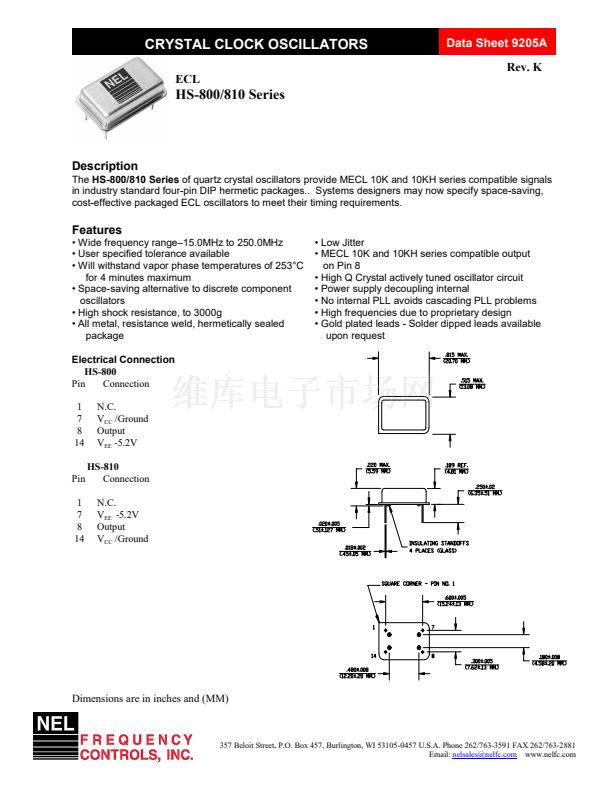

CRYSTAL CLOCK OSCILLATORS
ECL
Data Sheet 9205A
Rev. K
HS-800/810 Series
Description
The
HS-800/810 Series
of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals
in industry standard four-pin DIP hermetic packages.. Systems designers may now specify space-saving,
cost-effective packaged ECL oscillators to meet their timing requirements.
Features
鈥?Wide frequency range鈥?5.0MHz to 250.0MHz
鈥?User specified tolerance available
鈥?Will withstand vapor phase temperatures of 253擄C
for 4 minutes maximum
鈥?Space-saving alternative to discrete component
oscillators
鈥?High shock resistance, to 3000g
鈥?All metal, resistance weld, hermetically sealed
package
Electrical Connection
HS-800
Pin
Connection
1
7
8
14
N.C.
V
CC
/Ground
Output
V
EE
-5.2V
鈥?Low Jitter
鈥?MECL 10K and 10KH series compatible output
on Pin 8
鈥?High Q Crystal actively tuned oscillator circuit
鈥?Power supply decoupling internal
鈥?No internal PLL avoids cascading PLL problems
鈥?High frequencies due to proprietary design
鈥?Gold plated leads - Solder dipped leads available
upon request
HS-810
Pin
Connection
1
7
8
14
N.C.
V
EE
-5.2V
Output
V
CC
/Ground

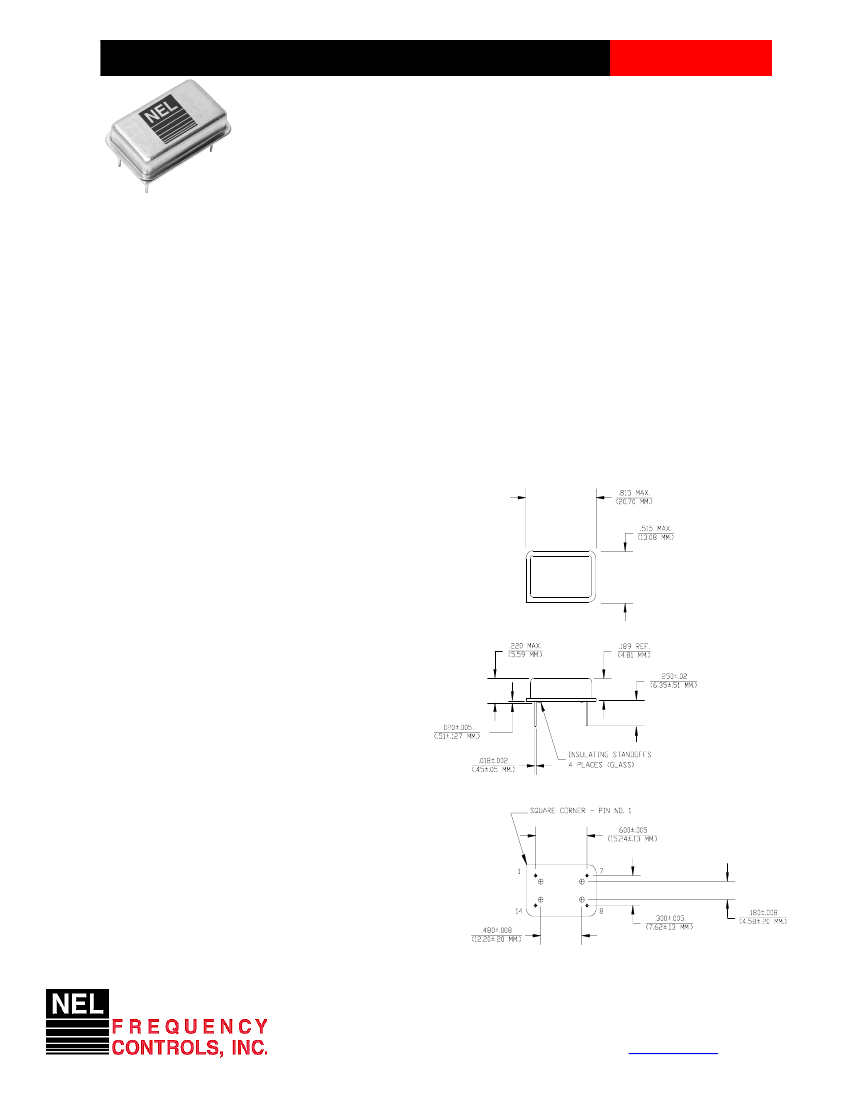

Dimensions are in inches and (MM)
