Supports wireless LAN module (optional)

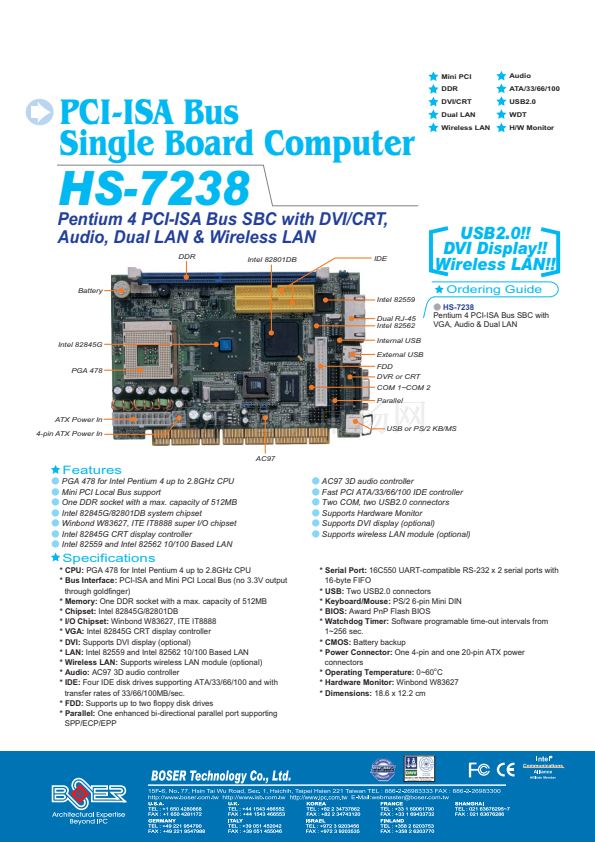

Specifications
* CPU:
PGA 478 for Intel Pentium 4 up to 2.8GHz CPU
* Bus Interface:
PCI-ISA and Mini PCI Local Bus (no 3.3V output
through goldfinger)
* Memory:
One DDR socket with a max. capacity of 512MB
* Chipset:
Intel 82845G/82801DB
* I/O Chipset:
Winbond W83627, ITE IT8888
* VGA:
Intel 82845G CRT display controller
* DVI:
Supports DVI display (optional)
* LAN:
Intel 82559 and Intel 82562 10/100 Based LAN
* Wireless LAN:
Supports wireless LAN module (optional)
* Audio:
AC97 3D audio controller
* IDE:
Four IDE disk drives supporting ATA/33/66/100 and with
transfer rates of 33/66/100MB/sec.
* FDD:
Supports up to two floppy disk drives
* Parallel:
One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
* Serial Port:
16C550 UART-compatible RS-232 x 2 serial ports with
16-byte FIFO
* USB:
Two USB2.0 connectors
* Keyboard/Mouse:
PS/2 6-pin Mini DIN
* BIOS:
Award PnP Flash BIOS
* Watchdog Timer:
Software programable time-out intervals from
1~256 sec.
* CMOS:
Battery backup
* Power Connector:
One 4-pin and one 20-pin ATX power
connectors
* Operating Temperature:
0~60
o
C
* Hardware Monitor:
Winbond W83627
* Dimensions:
18.6 x 12.2 cm
