ADE-208-241A(Z)
HRW1002B
Silicon Schottky Barrier Diode
for Rectifying
Rev. 1
Aug . 1994
Features
鈥?Low forward voltage drop and suitable for high
effifiency rectifying.
鈥?Full molded fin enables easy insulation from
heat sink.
1
2
3
Pin Arrangement
Ordering Information
Type No.
HRW1002B
Laser Mark
W1002B
Package Code
TO-220FM
1 2
3
1 Anode
2 Cathode
3 Anode
Absolute Maximum Ratings
(Ta = 25擄C)
*
Item
Repetitive peak reverse voltage
Average forward current
Symbol
V
RRM
**
I
o
***
T
j
T
stg
Value
20
10
75
125
-40 to +125
Unit
V
A
A
擄C
擄C
Non-Repetitive peak forward surge current I
FSM
****
Junction temperature
Storage temperature
* Per one device

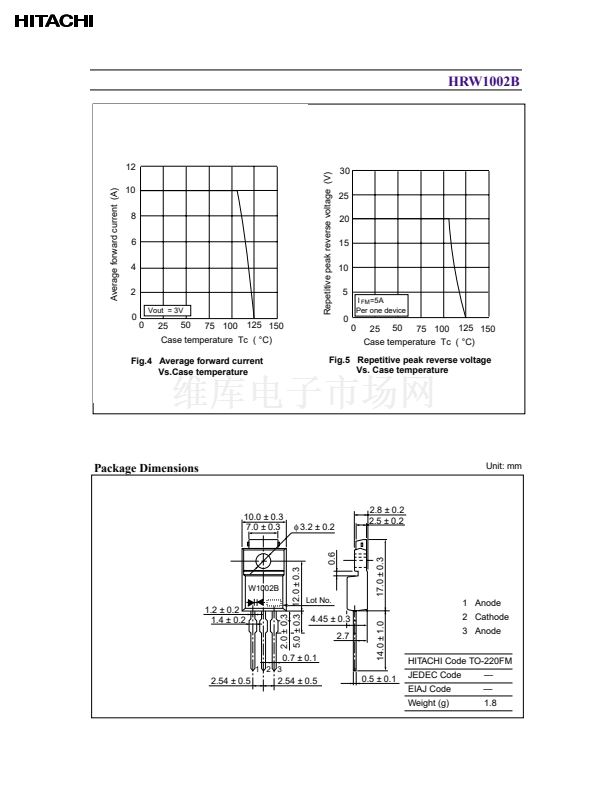

** See Fig.5
*** Square wave, Duty (1/2), Sum of two devices, See Fig.4
**** Sine wave 10msec
Electrical Characteristics
(Ta = 25擄C)
*
Item
Forward voltage
Reverse current
ESD-capability
Thermal resistance
*
Per one device
Symbol
V
F
I
R
鈥?/div>
R
th(j-c)
Min
鈥?/div>
鈥?/div>
500
鈥?/div>
Typ
鈥?/div>
鈥?/div>
鈥?/div>
3.0
Max
0.42
1.0
鈥?/div>
鈥?/div>
Unit
V
mA
V
擄C/W
Test Condition
I
F
= 5.0 A
V
R
= 20 V
C=200pF
Both forward and reverse
direction 1 pulse
