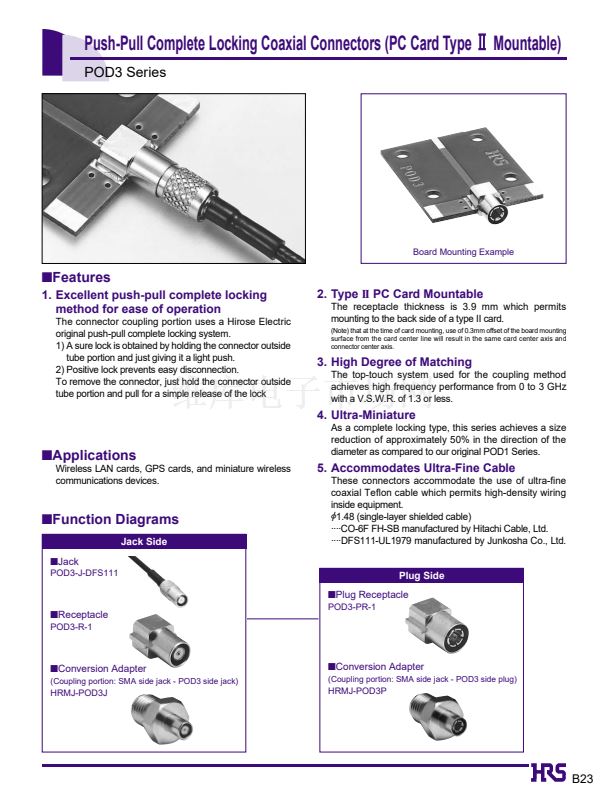

Push-Pull Complete Locking Coaxial Connectors (PC Card Type
2
Mountable)
POD3 Series
Board Mounting Example
sFeatures
1. Excellent push-pull complete locking
method for ease of operation
The connector coupling portion uses a Hirose Electric
original push-pull complete locking system.
1) A sure lock is obtained by holding the connector outside
tube portion and just giving it a light push.
2) Positive lock prevents easy disconnection.
To remove the connector, just hold the connector outside
tube portion and pull for a simple release of the lock
2. Type
II
PC Card Mountable
The receptacle thickness is 3.9 mm which permits
mounting to the back side of a type II card.

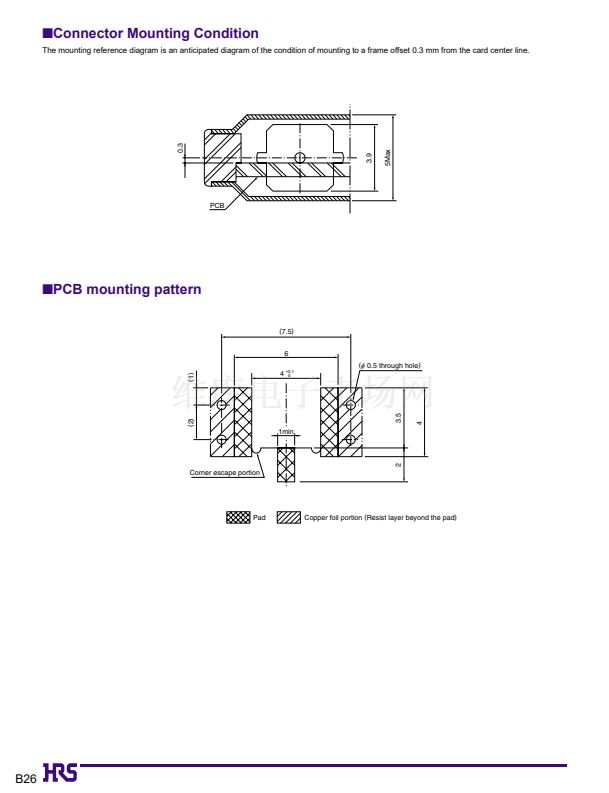

(Note) that at the time of card mounting, use of 0.3mm offset of the board mounting
surface from the card center line will result in the same card center axis and
connector center axis.
3. High Degree of Matching
The top-touch system used for the coupling method
achieves high frequency performance from 0 to 3 GHz
with a V.S.W.R. of 1.3 or less.
4. Ultra-Miniature
sApplications
Wireless LAN cards, GPS cards, and miniature wireless
communications devices.
As a complete locking type, this series achieves a size
reduction of approximately 50% in the direction of the
diameter as compared to our original POD1 Series.
5. Accommodates Ultra-Fine Cable
These connectors accommodate the use of ultra-fine
coaxial Teflon cable which permits high-density wiring
inside equipment.
脴
1.48 (single-layer shielded cable)
....CO-6F FH-SB manufactured by Hitachi Cable, Ltd.
....DFS111-UL1979 manufactured by Junkosha Co., Ltd.
sFunction
Diagrams
Jack Side

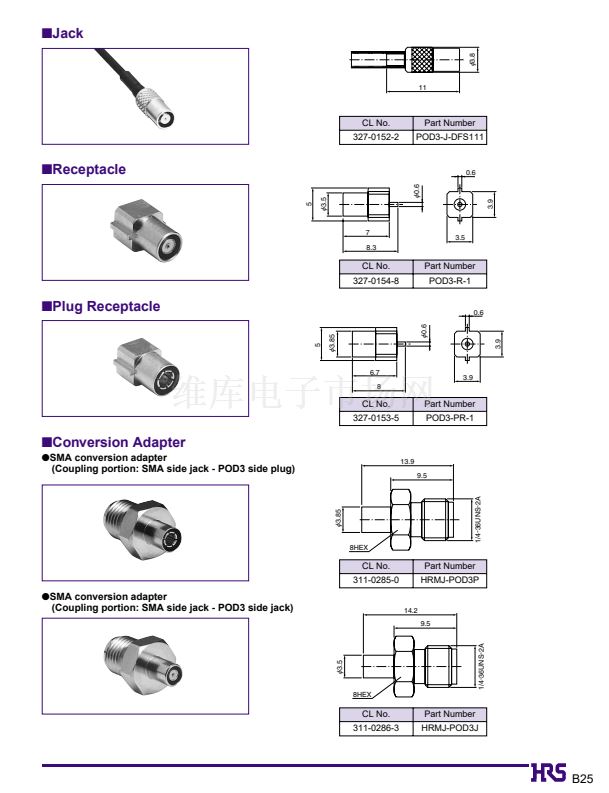

sJack
POD3-J-DFS111
Plug Side
sPlug
Receptacle
POD3-PR-1
sReceptacle
POD3-R-1
sConversion
Adapter
(Coupling portion: SMA side jack - POD3 side jack)
sConversion
Adapter
(Coupling portion: SMA side jack - POD3 side plug)
HRMJ-POD3J
HRMJ-POD3P
B23
1
2
3
4
