HPND-4038 Datasheet

  • HPND-4038

  • Beam lead Diodes for switching applications

  • 48.63KB

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Beam Lead PIN Diodes for
Phased Arrays and Switches
Technical Data
HPND-4028
HPND-4038
Features
鈥?Low Capacitance
0.025 pF Maximum at 1 MHz
Guaranteed Min./Max.
鈥?Fast Switching
2.0 nsec
鈥?Low Resistance at Low Bias
1.5
鈩?/div>
at I
F
= 10 mA (Typical)
鈥?Rugged Construction
Typical 10 Gram Lead Pull
鈥?Silicon Nitride Passivation
690 (27)
650 (26)
330 (13)
260 (10)
220 (9)
180 (7)
180 (7)
160 (6)
110 (4.5)
90 (3.5)
280 (11)
240 (9)
Description
The HPND-4028 and 4038 beam
lead PIN diodes are designed for
low capacitance, low resistance,
and fast switching at microwave
frequencies. These characteristics
are achieved at low bias levels for
minimal power consumption.
Advanced processing techniques
ensure uniform and consistent
electrical performance, allowing
guaranteed capacitance windows.
This translates to improved
performance in phased array
applications.
Rugged construction and strong
beams ensure high assembly
yields while nitride passivation
and polyimide coating ensure
reliability.
12 (0.47)
8 (0.32)
60 (2.4)
40 (1.6)
DIMENSIONS IN
碌M
(1/1000 INCH)
Outline 83
Maximum Ratings
Operating Temperature ....................................................... -65擄C to +150擄C
Storage Temperature ........................................................... -65擄C to +200擄C
Power Dissipation at T
CASE
= 25擄C ................................................. 250 mW
(Derate linearly to zero at 150
擄
C.)
Minimum Lead Strength ................................... 4 grams pull on either lead
per MIL-S-19500, LTPD = 20
Applications
These beam lead PIN diodes are
designed for use in stripline,
coplanar waveguide, or micro-
strip circuits. Applications
include phase shifting and
switching. The guaranteed
capacitance windows ensure
uniform performance in phased
array radar. The low capacitance
makes them ideal for circuits
requiring high isolation in the
series configuration. These

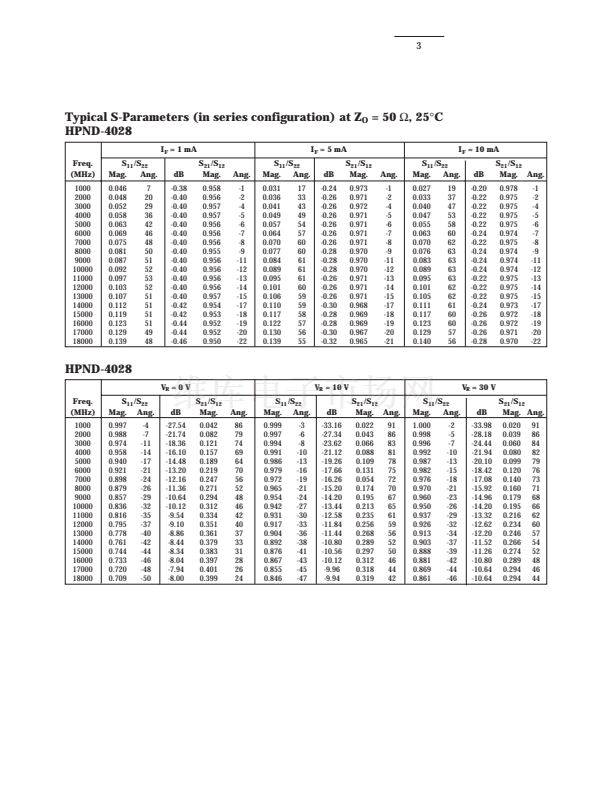

devices have been fully charac-
terized and S-parameters have
been provided.
