H

HP E2411C and HP E5344A

Intel80486*

Preprocessor Interface

For use with

HP logic analyzers

The Hewlett-Packard E2411C

preprocessor supports the

Intel486DX, DX2, DX4, 486SX,

486SL Enhanced, and 487SX, as

well as the OverDrive for the

486DX chip. The preprocessor

interface provides an electrical

and mechanical connection

between your target system and

an HP logic analyzer.

Preprocessor software configures

the logic analyzer labeling

address, data, and status lines.

Additionally, when a state trace

is displayed, the data is

disassembled and listed in

80486 mnemonics. The disas-

sembler also decodes FPU

instructions for target systems

that use the Intel486DX and

Intel487SX chips.

0.8 in.

______

20.0 mm

3.7 in.

______

93.1 mm

0.9 in.

______

23.9 mm

0.1 in.

______

2.5 mm

HP E2411C FOR 486DX/SX/OVERDRIVE

Made in U.S.A.

Observe polarity

CAUTION:

0.4 in.

_______

10.8 mm

Pin A1

0.9 in.

_______

23.9 mm

0.4 in.

_____

10.0 mm

0.5 in.

_____

11.6 mm

CAUTION:

Pin A1

0.4 in.

_______

10.3 mm

0.2 in.

_____

4.3 mm

1) ST/TIMING

2) CACHE INV

3) DMA

4) DMA TAG

5) FREQUENCY

6) CONTROL

3.2 in.

_______

80.3 mm

Avoid static discharge

10-50 MHz

IGNORE

IGNORE

STATE

YES

486/7

OverDr

5-25 MHz

NO

CAPTURE

CAPTURE

TIMING

0.6 in.

_____

15.8 mm

0.1 in.

_____

1.6 mm

0.2 in.

_____

4.3 mm

Figure 1.

The HP E2411C

preprocessor

interface

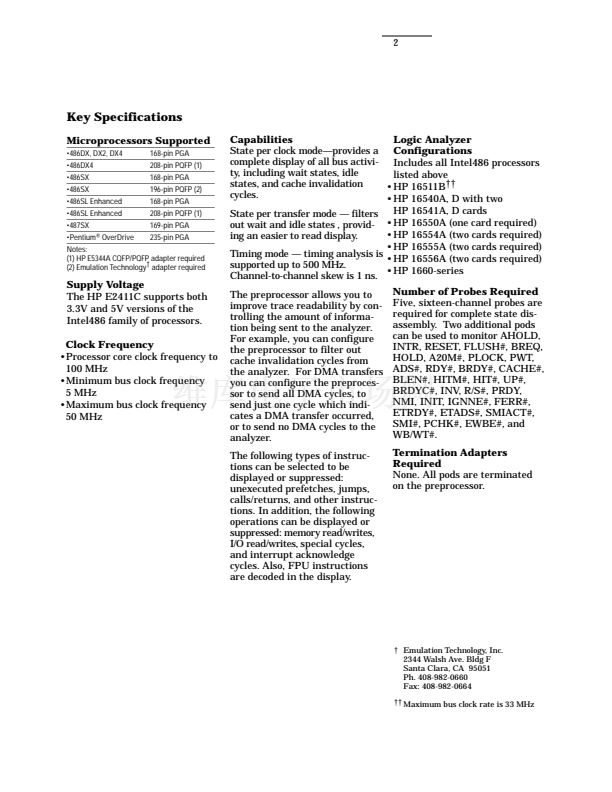

next
