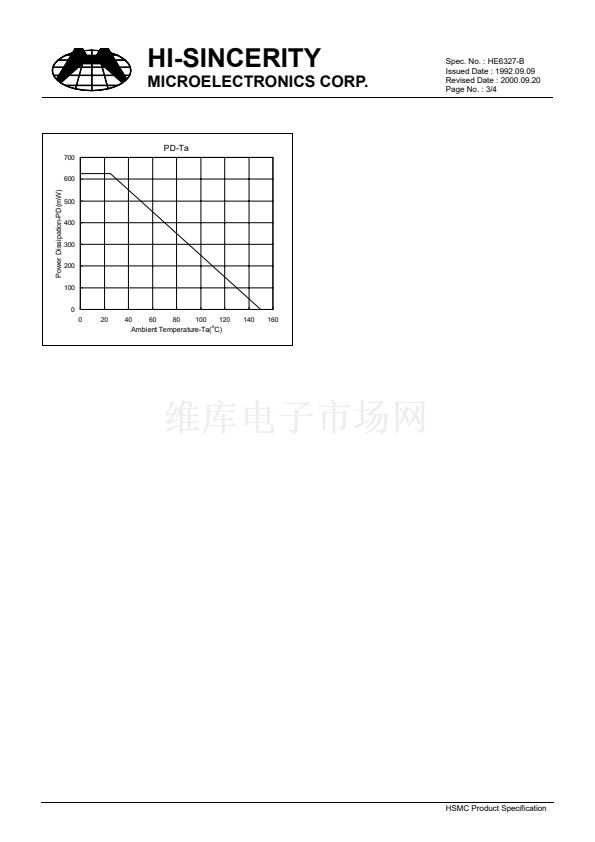

Total Power Dissipation (Ta=25擄C) ............................................................................... 625 mW
鈥?/div>
Maximum Voltages and Currents (Ta=25擄C)
VCBO Collector to Base Voltage ........................................................................................ 60 V
VCEO Collector to Emitter Voltage ..................................................................................... 40 V
VEBO Emitter to Base Voltage ............................................................................................. 5 V
IC Collector Current .............................................................................................................. 2 A
Characteristics
(Ta=25擄C)
Symbol
BVCBO
BVCEO
BVEBO
ICBO
IEBO
*VCE(sat)1
*VCE(sat)2
VBE(on)
*VBE(sat)
*hFE1
*hFE2
*hFE3
*hFE4
ft
Min.
40
60
5
-
-
-
-
-
-
75
75
75
40
75
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max.
-
-
-
100
100
0.5
0.3
1
1.2
-
-
-
-
-
Unit
V
V
V
nA
nA
V
V
V
V
Test Conditions
IC=10mA, IB=0
IC=100uA, IE=0
IE=10uA, IC=0
VCB=60V, IE=0
VEB=4V, IC=0
IC=2A, IB=200mA
IC=1A, IB=100mA
VCE=2V, IC=1A
IC=1A, IB=100mA
VCE=2V, IC=50mA
VCE=2V, IC=500mA
VCE=2V, IC=1A
VCE=2V, IC=2A
VCE=5V, IC=50mA, f=100MHz
MHz
*Pulse Test : Pulse Width
鈮?80us,
Duty Cycle鈮?%
HSMC Product Specification
