HMF8M16F8V Datasheet

  • HMF8M16F8V

  • FLASH-ROM MODULE 16MByte (8M x 16-Bit) Memory Stack Type

  • 13頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

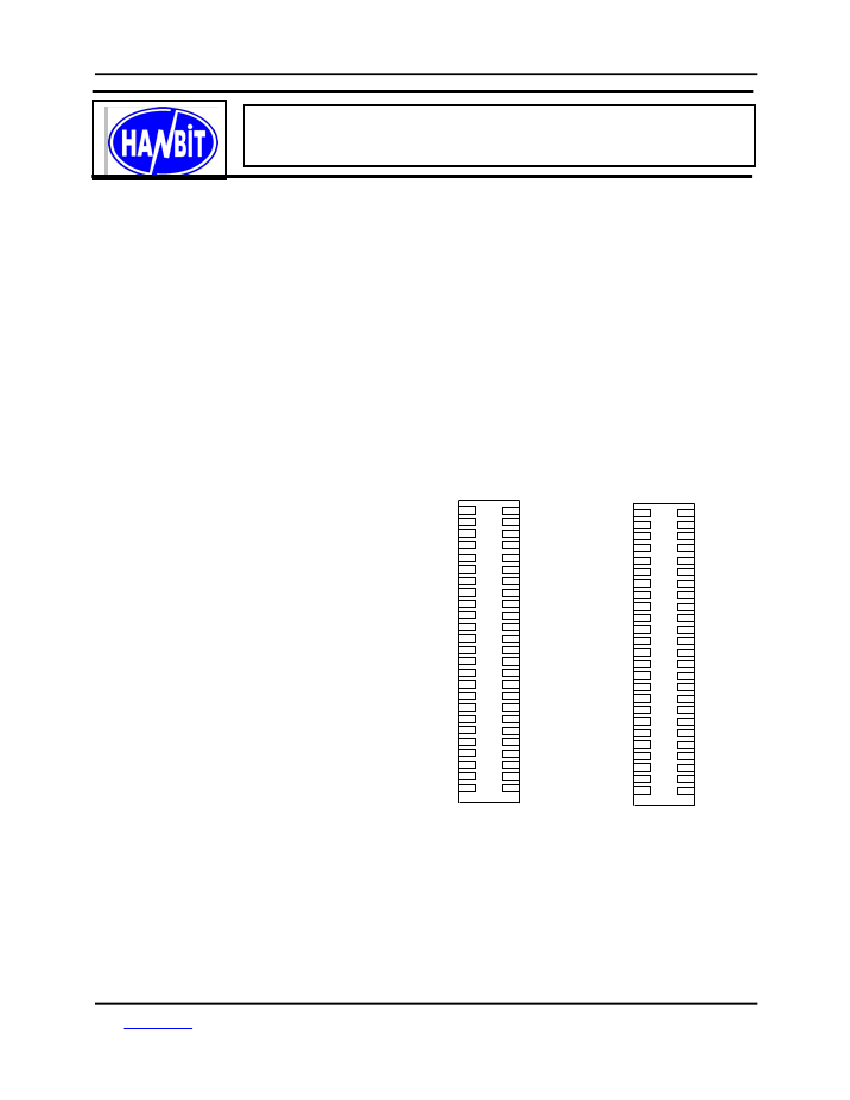

HANBit
HMF8M16F8V-90
FLASH-ROM MODULE 16MByte (8M x 16-Bit)
鈥?/div>
Memory Stack
Type
Part No. HMF8M16F8V- 90
GENERAL DESCRIPTION
The HMF8M16F8V is a high-speed flash read only memory (FROM) module containing 8,388,608 words organized in an
x16bit configuration. The module consists of eight 2M x 8 FROM mounted on a 100-pin, MMC connector FR4-printed circuit
board.
Commands are written to the command register using standard microprocessor write timings.
Register contents serve as input to an internal state-machine, which controls the erase and programming circuitry. Write cycles
also internally latch addresses and data needed for the programming and erase operations. Reading data out of the device is
similar to reading from 12.0V flash or EPROM devices.
Output enable (/OE) and write enable (/WE) can set the memory input and output. The host system can detect a program or
erase operation is complete by observing the Ready Pin, or reading the DQ7(Data # Polling) and DQ6(Toggle) status bits.
When FROM module is disable condition the module is becoming power standby mode, system designer can get low-power
design. All module components may be powered from a single +3V DC power supply and all inputs and outputs are LVTTL-
compatible.
FEATURES
w
Part identification
-
HMF8M16F8V(Bottom boot block configuration)
Vcc
A22
A21
A20
DQ15
DQ14
DQ13
Vss
DQ12
DQ11
DQ10
DQ8
Vss
DQ6
DQ4
DQ3
DQ2
Vss
DQ1
DQ0
A0
A1
A2
A3
Vcc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

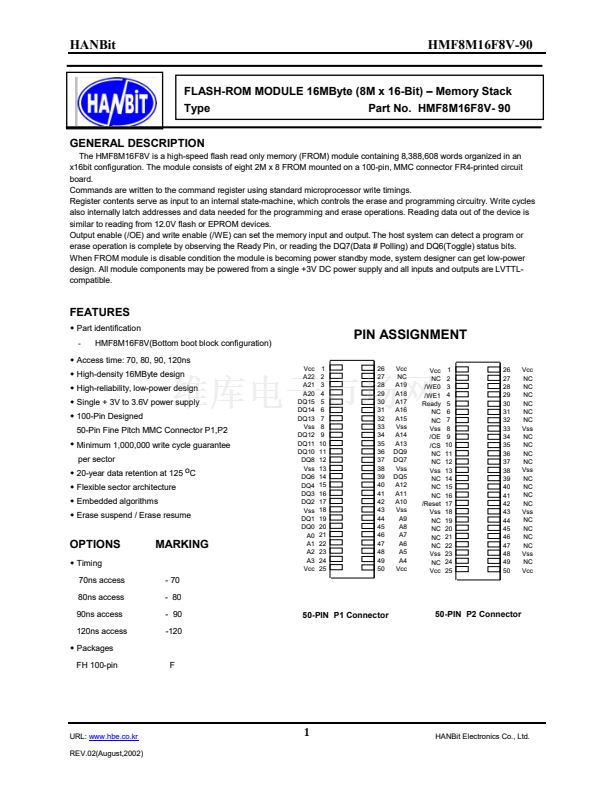

PIN ASSIGNMENT
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Vcc
NC
A19
A18
A17
A16
A15
Vss
A14
A13
DQ9
DQ7
Vss
DQ5
A12
A11
A10
Vss
A9
A8
A7
A6
A5
A4
Vcc
Vcc
NC
/WE0
/WE1
Ready
NC
NC
Vss
/OE
/CS
NC
NC
Vss
NC
NC
NC
/Reset
Vss
NC
NC
NC
NC
Vss
NC
Vcc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Vcc
NC
NC
NC
NC
NC
NC
Vss
NC
NC
NC
NC
Vss
NC
NC
NC
NC
Vss
NC
NC
NC
NC
Vss
NC
Vcc
w
Access time: 70, 80, 90, 120ns
w
High-density 16MByte design
w
High-reliability, low-power design
w
Single + 3V to 3.6V power supply
w
100-Pin Designed
50-Pin Fine Pitch MMC Connector P1,P2
w
Minimum 1,000,000 write cycle guarantee
per sector
w
20-year data retention at 125 oC
w
Flexible sector architecture
w
Embedded algorithms
w
Erase suspend / Erase resume
OPTIONS
w
Timing
70ns access
80ns access
90ns access
120ns access
w
Packages
FH 100-pin
MARKING
- 70
- 80
- 90
-120
50-PIN P1 Connector
50-PIN P2 Connector
F
URL:
www.hbe.co.kr
REV.02(August,2002)
1
HANBit Electronics Co., Ltd.
