HMC467LP3 Datasheet

  • HMC467LP3

  • 2 dB LSB GaAs MMIC 2-BIT DIGITAL POSITIVE CONTROL ATTENUATOR...

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

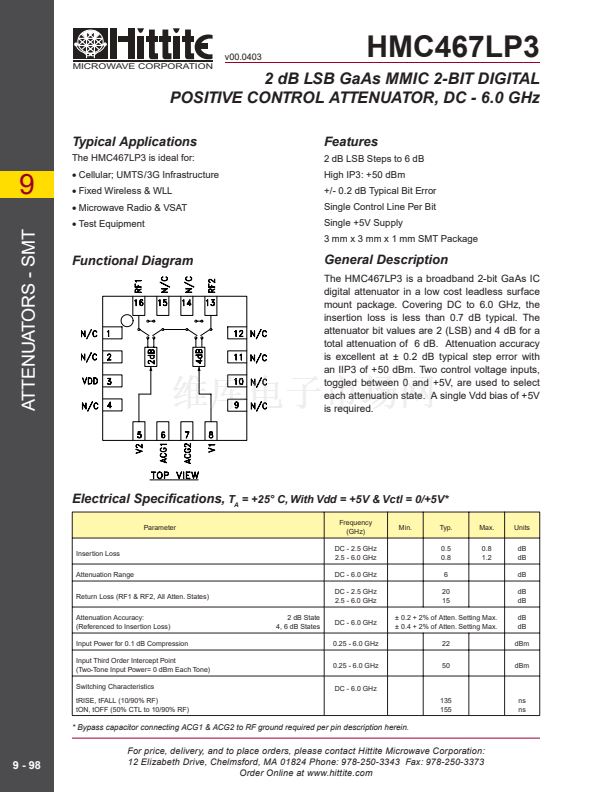

v00.0403
MICROWAVE CORPORATION
HMC467LP3
Features
2 dB LSB Steps to 6 dB
High IP3: +50 dBm
+/- 0.2 dB Typical Bit Error
Single Control Line Per Bit
Single +5V Supply
3 mm x 3 mm x 1 mm SMT Package
2 dB LSB GaAs MMIC 2-BIT DIGITAL
POSITIVE CONTROL ATTENUATOR, DC - 6.0 GHz
Typical Applications
The HMC467LP3 is ideal for:
9
ATTENUATORS - SMT
鈥?/div>
Cellular; UMTS/3G Infrastructure
鈥?/div>
Fixed Wireless & WLL
鈥?/div>
Microwave Radio & VSAT
鈥?/div>
Test Equipment
Functional Diagram
General Description
The HMC467LP3 is a broadband 2-bit GaAs IC
digital attenuator in a low cost leadless surface
mount package. Covering DC to 6.0 GHz, the
insertion loss is less than 0.7 dB typical. The
attenuator bit values are 2 (LSB) and 4 dB for a
total attenuation of 6 dB. Attenuation accuracy
is excellent at 鹵 0.2 dB typical step error with
an IIP3 of +50 dBm. Two control voltage inputs,
toggled between 0 and +5V, are used to select
each attenuation state. A single Vdd bias of +5V
is required.
Electrical Speci鏗乧ations,
T
A
= +25擄 C, With Vdd = +5V & Vctl = 0/+5V*
Parameter
Frequency
(GHz)
DC - 2.5 GHz
2.5 - 6.0 GHz
DC - 6.0 GHz
DC - 2.5 GHz
2.5 - 6.0 GHz
2 dB State
4, 6 dB States
DC - 6.0 GHz
0.25 - 6.0 GHz
0.25 - 6.0 GHz
DC - 6.0 GHz
135
155
ns
ns
Min.
Typ.
0.5
0.8
6
20
15
鹵 0.2 + 2% of Atten. Setting Max.
鹵 0.4 + 2% of Atten. Setting Max.
22
50
Max.
0.8
1.2
Units
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
Insertion Loss
Attenuation Range
Return Loss (RF1 & RF2, All Atten. States)
Attenuation Accuracy:
(Referenced to Insertion Loss)
Input Power for 0.1 dB Compression
Input Third Order Intercept Point
(Two-Tone Input Power= 0 dBm Each Tone)
Switching Characteristics
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
* Bypass capacitor connecting ACG1 & ACG2 to RF ground required per pin description herein.
9 - 98
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
