HMC466LP4 Datasheet

  • HMC466LP4

  • MMIC VCO w/ BUFFER AMPLIFIER, 6.1 - 6.72 GHz

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROWAVE CORPORATION
v01.0604
HMC466LP4
MMIC VCO w/ BUFFER
AMPLIFIER, 6.1 - 6.72 GHz
Features
Pout: +4.5 dBm
Phase Noise: -101 dBc/Hz @100 KHz
No External Resonator Needed
Single Supply: +3V @ 31 mA
QFN Leadless SMT Package, 16 mm
2
Typical Applications
Low noise MMIC VCO w/Buffer Ampli鏗乪r for:
鈥?VSAT & Microwave Radio
鈥?CATV & Broadcast Relays
鈥?Test Equipment & Industrial Controls
鈥?Military
Functional Diagram
General Description
The HMC466LP4 is a GaAs InGaP Heterojunc-
tion Bipolar Transistor (HBT) MMIC VCO with
integrated resonator, negative resistance device,
varactor diode, and buffer ampli鏗乪r. Covering 6.1
to 6.72 GHz, the VCO鈥檚 phase noise performance
is excellent over temperature, shock, vibration
and process due to the oscillator鈥檚 monolithic
structure. Power output is 4.5 dBm typical from
a single supply of 3.0V @31mA. The voltage
controlled oscillator is packaged in a low cost
leadless QFN 4 x 4 mm surface mount package.
15
VCOs - SMT
Electrical Speci鏗乧ations,
T
A
= +25擄 C, Vcc = +3V
Parameter
Frequency Range
Power Output
SSB Phase Noise @ 100 kHz Offset, Vtune= +5V @ RF Output
Tune Voltage (Vtune)
Supply Current (Icc) (Vcc = +3.0V)
Tune Port Leakage Current
Output Return Loss
Harmonics
2nd
3rd
Pulling (into a 2.0:1 VSWR)
Pushing @ Vtune= +5V
Frequency Drift Rate
7
0
31
10
1.5
Min.
Typ.
6.1 - 6.72
4.5
-101
10
Max.
Units
GHz
dBm
dBc/Hz
V
mA
碌A(chǔ)
dB
-13
-24
11
30
0.8
dBc
dBc
MHz pp
MHz/V
MHz/擄C
15 - 90

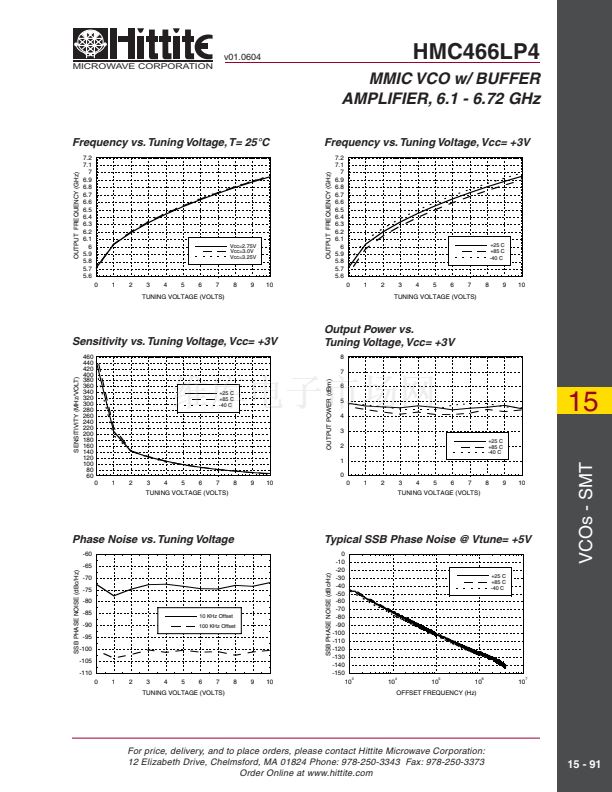

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
