HMC432 Datasheet

  • HMC432

  • SMT GaAs HBT MMIC DIVIDE-BY-2, DC - 8.0 GHz

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROWAVE CORPORATION
v01.1002
HMC432
SMT GaAs HBT MMIC
DIVIDE-BY-2, DC - 8.0 GHz
Features
Ultra Low SSB Phase Noise: -148 dBc/Hz
Single-Ended I/O鈥檚
Output Power: -3 to -9 dBm
Single DC Supply: +3V @ 42 mA
9 mm
2
Ultra Small Package: SOT26
Typical Applications
Prescaler for DC to C Band PLL Applications:
鈥?UNII, Pt. - Pt. & VSAT Radios
鈥?802.11a & HiperLAN WLAN
10
FREQ. DIVIDER & DETECTORS - SMT
鈥?Fiber Optic
鈥?Cellular / 3G Infrastructure

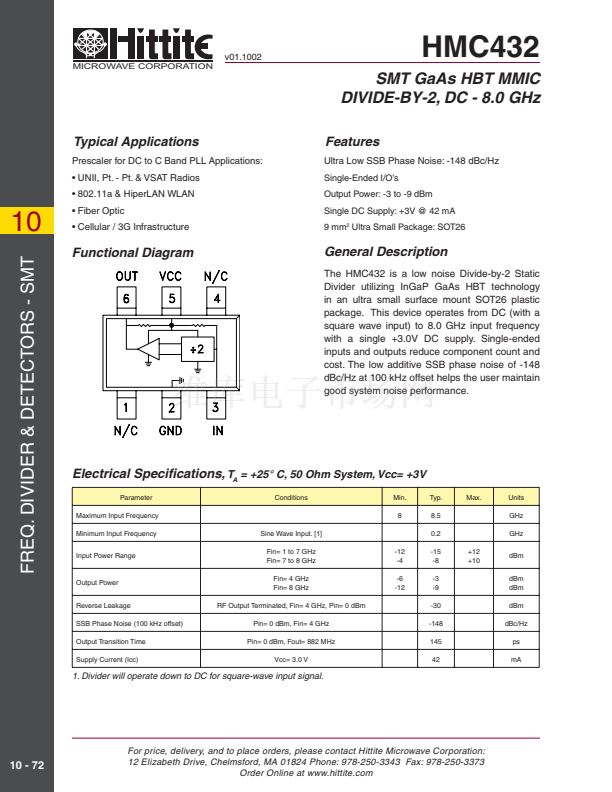

Functional Diagram
General Description
The HMC432 is a low noise Divide-by-2 Static
Divider utilizing InGaP GaAs HBT technology
in an ultra small surface mount SOT26 plastic
package. This device operates from DC (with a
square wave input) to 8.0 GHz input frequency
with a single +3.0V DC supply. Single-ended
inputs and outputs reduce component count and
cost. The low additive SSB phase noise of -148
dBc/Hz at 100 kHz offset helps the user maintain
good system noise performance.
Electrical Speci鏗乧ations,
T
A
= +25擄 C, 50 Ohm System, Vcc= +3V
Parameter
Maximum Input Frequency
Minimum Input Frequency
Input Power Range
Sine Wave Input. [1]
Fin= 1 to 7 GHz
Fin= 7 to 8 GHz
Fin= 4 GHz
Fin= 8 GHz
RF Output Terminated, Fin= 4 GHz, Pin= 0 dBm
Pin= 0 dBm, Fin= 4 GHz
Pin= 0 dBm, Fout= 882 MHz
Vcc= 3.0 V
-12
-4
-6
-12
Conditions
Min.
8
Typ.
8.5
0.2
-15
-8
-3
-9
-30
-148
145
42
+12
+10
Max.
Units
GHz
GHz
dBm
dBm
dBm
dBm
dBc/Hz
ps
mA
Output Power
Reverse Leakage
SSB Phase Noise (100 kHz offset)
Output Transition Time
Supply Current (Icc)
1. Divider will operate down to DC for square-wave input signal.
10 - 72
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
