HMC420QS16 Datasheet

  • HMC420QS16

  • CELLULAR RFIC DOWNCONVERTER, 0.7 - 1.0 GHz

  • 8頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

v01.1102
MICROWAVE CORPORATION
HMC420QS16
CELLULAR RFIC
DOWNCONVERTER, 0.7 - 1.0 GHz
Features
+15 dBm Input IP3
Integrated IF & LO Amps: 0 dBm LO
Conversion Gain: 12.5 dB
Noise Figure: 13 dB
Single Positive Supply: +5V, 52 mA
Typical Applications
The HMC420QS16 is ideal for:
鈥?/div>
GSM & CDMA Infrastructure
鈥?/div>
GPRS & EDGE Infrastructure
鈥?Wireless
Data/CDPD

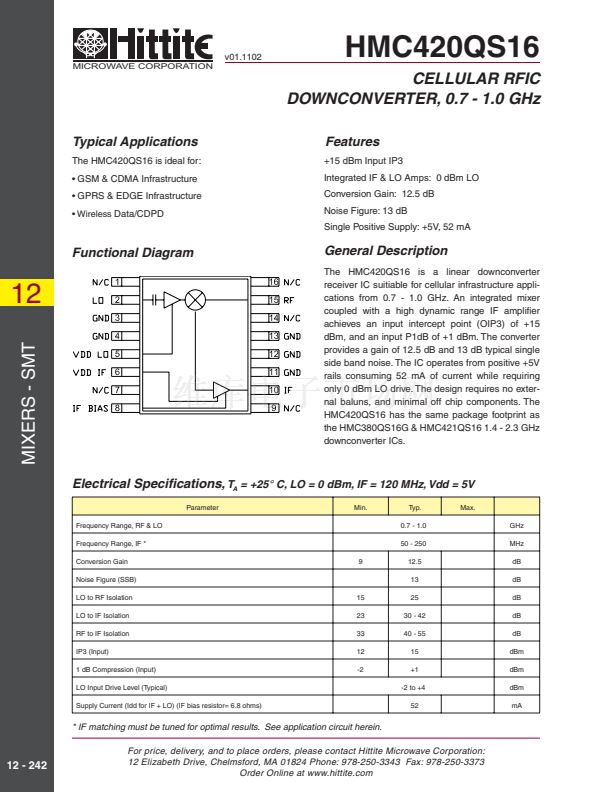

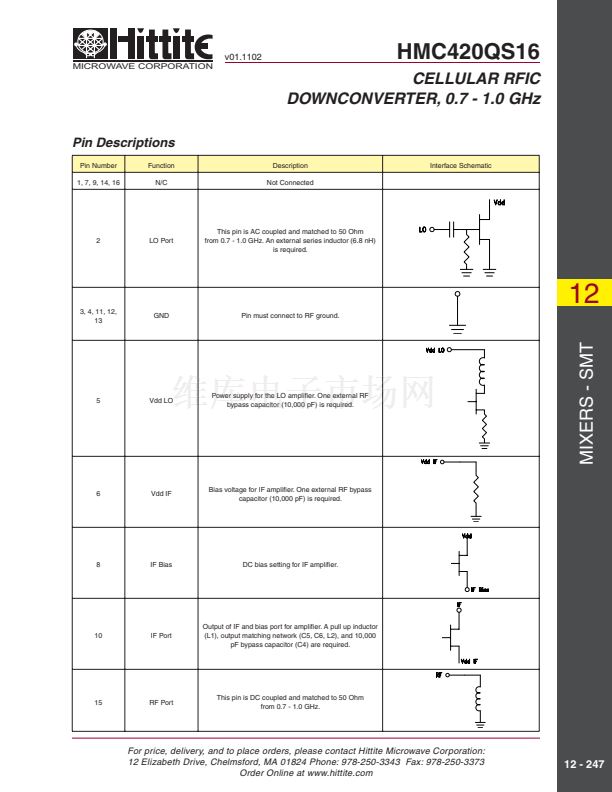

Functional Diagram
General Description
The HMC420QS16 is a linear downconverter
receiver IC suitiable for cellular infrastructure appli-
cations from 0.7 - 1.0 GHz. An integrated mixer
coupled with a high dynamic range IF ampli鏗乪r
achieves an input intercept point (OIP3) of +15
dBm, and an input P1dB of +1 dBm. The converter
provides a gain of 12.5 dB and 13 dB typical single
side band noise. The IC operates from positive +5V
rails consuming 52 mA of current while requiring
only 0 dBm LO drive. The design requires no exter-
nal baluns, and minimal off chip components. The
HMC420QS16 has the same package footprint as
the HMC380QS16G & HMC421QS16 1.4 - 2.3 GHz
downconverter ICs.
12
MIXERS - SMT

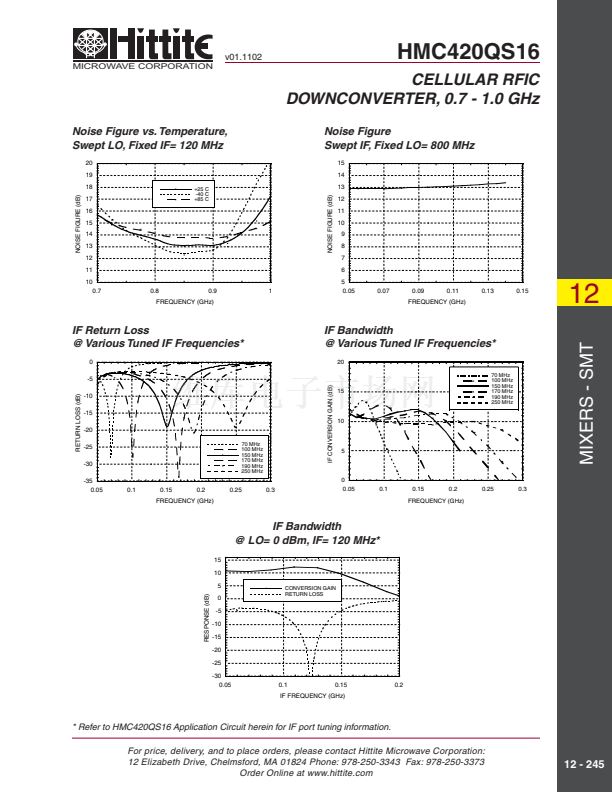

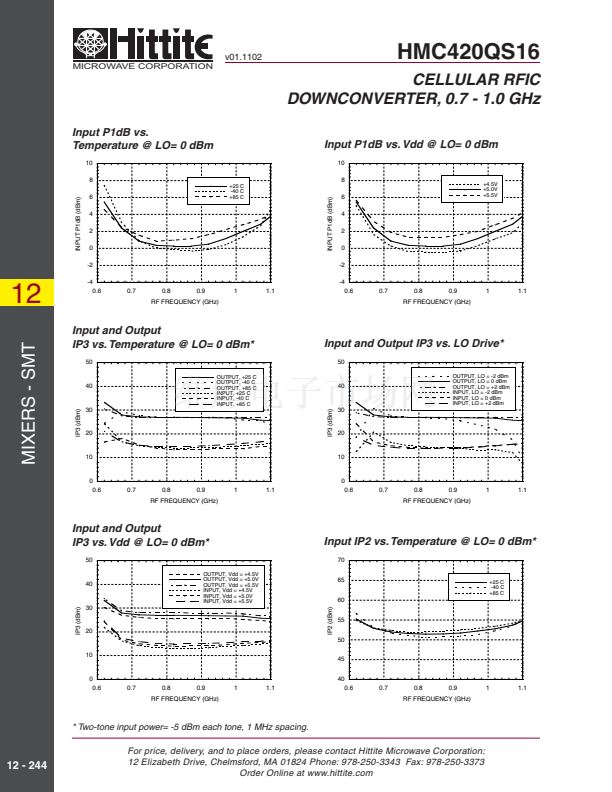

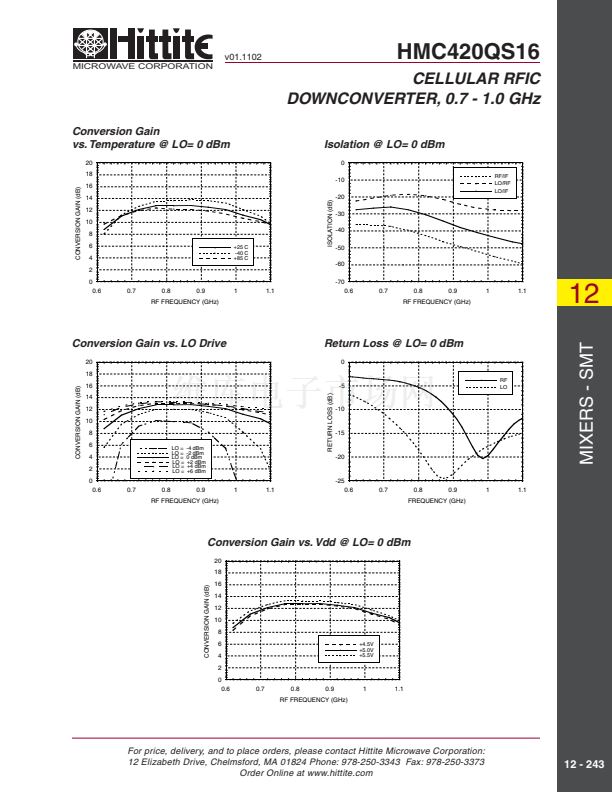

Electrical Speci鏗乧ations,
T
A
= +25擄 C, LO = 0 dBm, IF = 120 MHz, Vdd = 5V
Parameter
Frequency Range, RF & LO
Frequency Range, IF *
Conversion Gain
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
RF to IF Isolation
IP3 (Input)
1 dB Compression (Input)
LO Input Drive Level (Typical)
Supply Current (Idd for IF + LO) (IF bias resistor= 6.8 ohms)
15
23
33
12
-2
9
Min.
Typ.
0.7 - 1.0
50 - 250
12.5
13
25
30 - 42
40 - 55
15
+1
-2 to +4
52
Max.
GHz
MHz
dB
dB
dB
dB
dB
dBm
dBm
dBm
mA

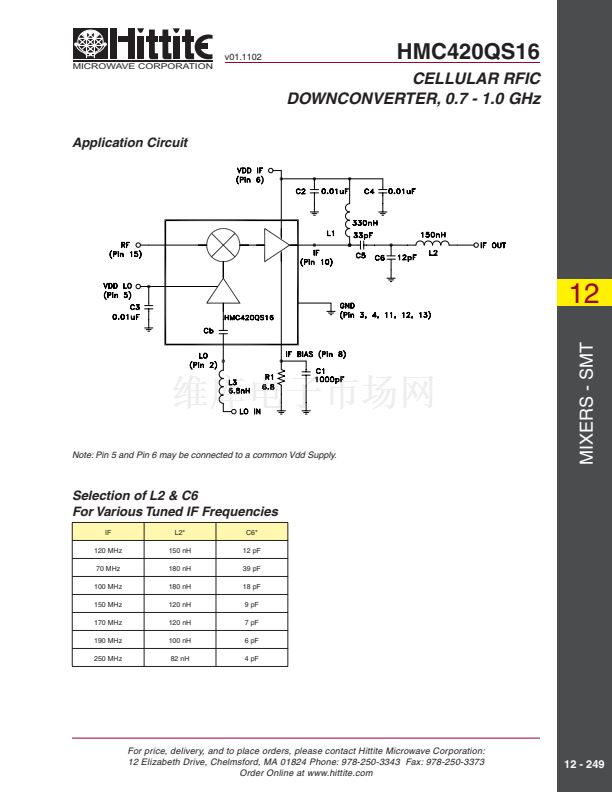

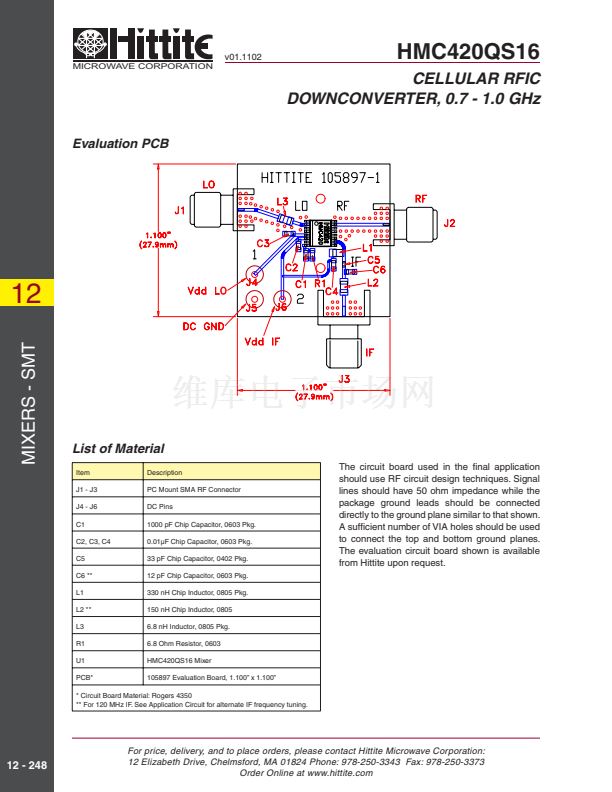

* IF matching must be tuned for optimal results. See application circuit herein.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
12 - 242
