HMC387MS8 Datasheet

  • HMC387MS8

  • HIGH IP3 GaAs MMIC MIXER, 450 - 500 MHz

  • 225.03KB

  • 8頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

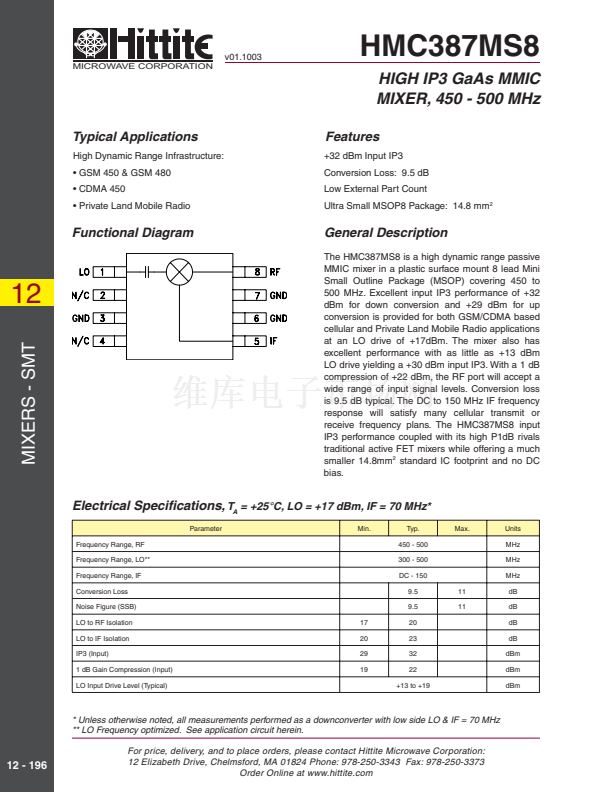

v01.1003
MICROWAVE CORPORATION
HMC387MS8
HIGH IP3 GaAs MMIC
MIXER, 450 - 500 MHz
Features
+32 dBm Input IP3
Conversion Loss: 9.5 dB
Low External Part Count
Ultra Small MSOP8 Package: 14.8 mm
2
Typical Applications
High Dynamic Range Infrastructure:
鈥?GSM 450 & GSM 480
鈥?CDMA 450
鈥?Private Land Mobile Radio
Functional Diagram
General Description
The HMC387MS8 is a high dynamic range passive
MMIC mixer in a plastic surface mount 8 lead Mini
Small Outline Package (MSOP) covering 450 to
500 MHz. Excellent input IP3 performance of +32
dBm for down conversion and +29 dBm for up
conversion is provided for both GSM/CDMA based
cellular and Private Land Mobile Radio applications
at an LO drive of +17dBm. The mixer also has
excellent performance with as little as +13 dBm
LO drive yielding a +30 dBm input IP3. With a 1 dB
compression of +22 dBm, the RF port will accept a
wide range of input signal levels. Conversion loss
is 9.5 dB typical. The DC to 150 MHz IF frequency
response will satisfy many cellular transmit or
receive frequency plans. The HMC387MS8 input
IP3 performance coupled with its high P1dB rivals
traditional active FET mixers while offering a much
smaller 14.8mm
2
standard IC footprint and no DC
bias.
12
MIXERS - SMT
Electrical Speci鏗乧ations,
T
A
= +25擄C, LO = +17 dBm, IF = 70 MHz*
Parameter
Frequency Range, RF
Frequency Range, LO**
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
IP3 (Input)
1 dB Gain Compression (Input)
LO Input Drive Level (Typical)
17
20
29
19
Min.
Typ.
450 - 500
300 - 500
DC - 150
9.5
9.5
20
23
32
22
+13 to +19
11
11
Max.
Units
MHz
MHz
MHz
dB
dB
dB
dB
dBm
dBm
dBm
* Unless otherwise noted, all measurements performed as a downconverter with low side LO & IF = 70 MHz
** LO Frequency optimized. See application circuit herein.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
12 - 196

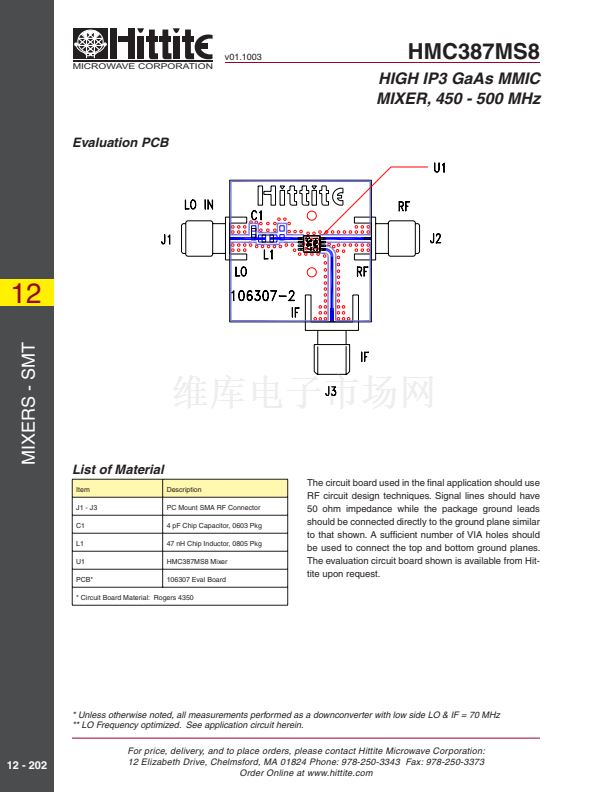

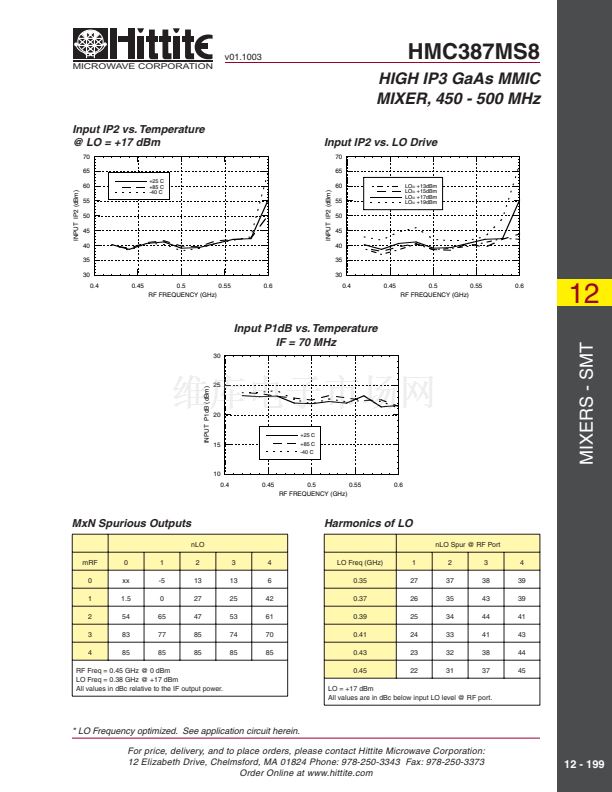

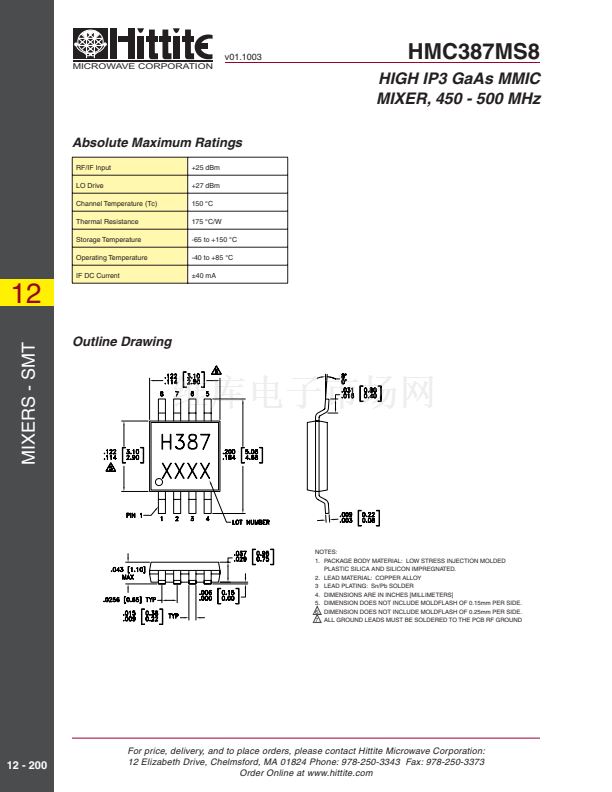

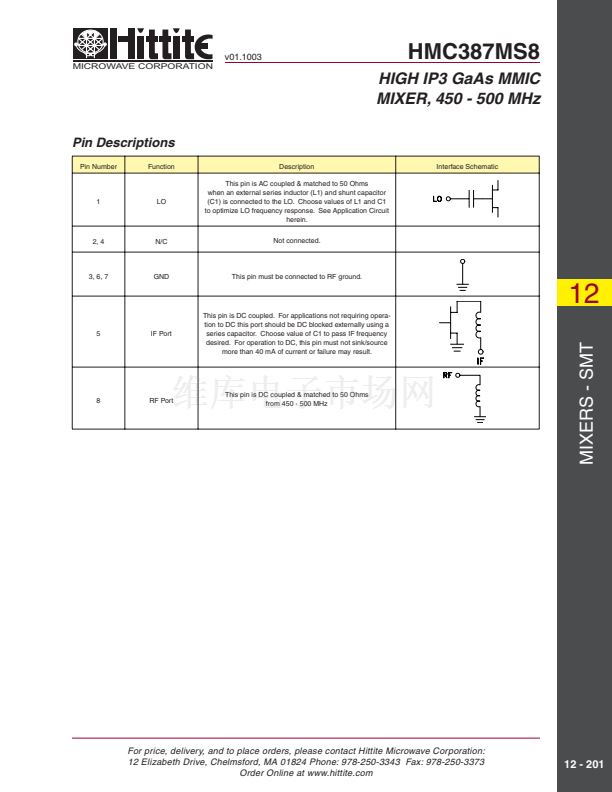

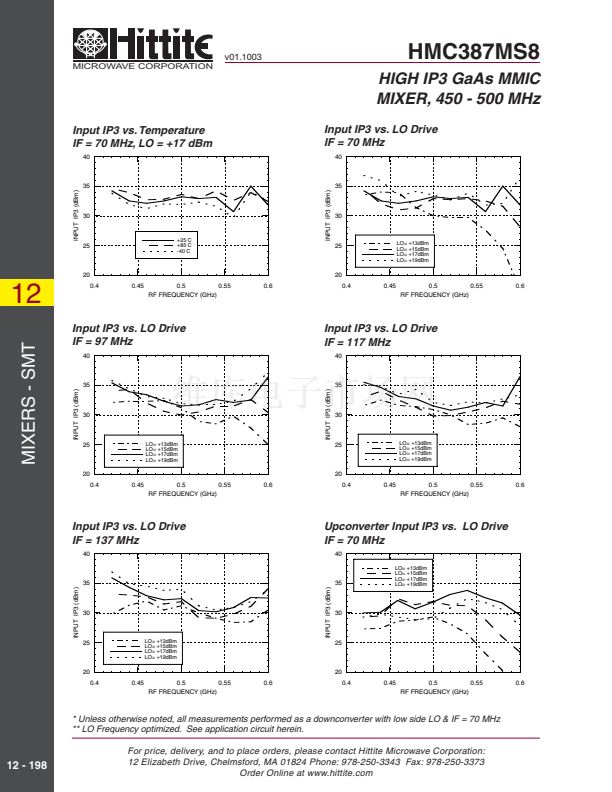

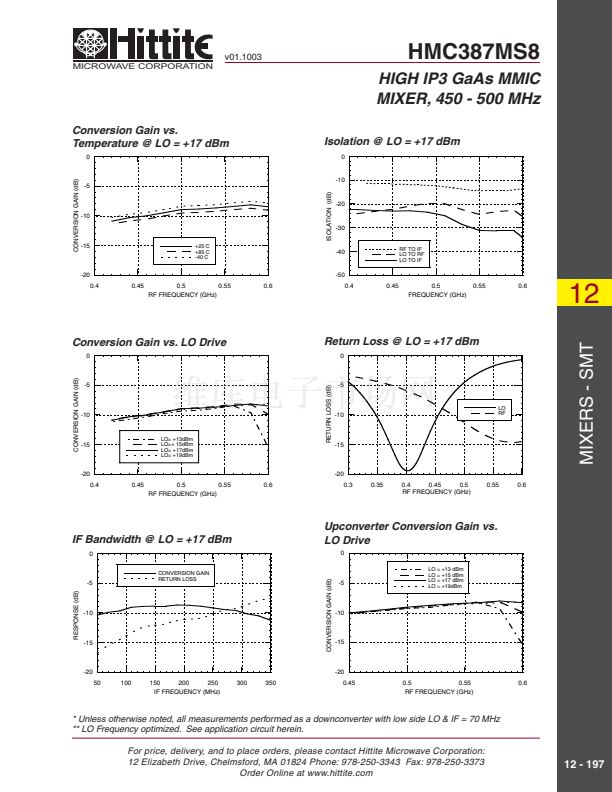

HMC387MS8 產品屬性

  • 0現貨

  • 停產

  • -

  • 帶

  • 停產

  • CDMA，GSM

  • 450MHz ~ 500MHz

  • 1

  • -

  • 9.5dB

  • -

  • -

  • -

  • 表面貼裝型

  • 8-TSSOP，8-MSOP（0.118"，3.00mm 寬）

  • 8-MSOP
