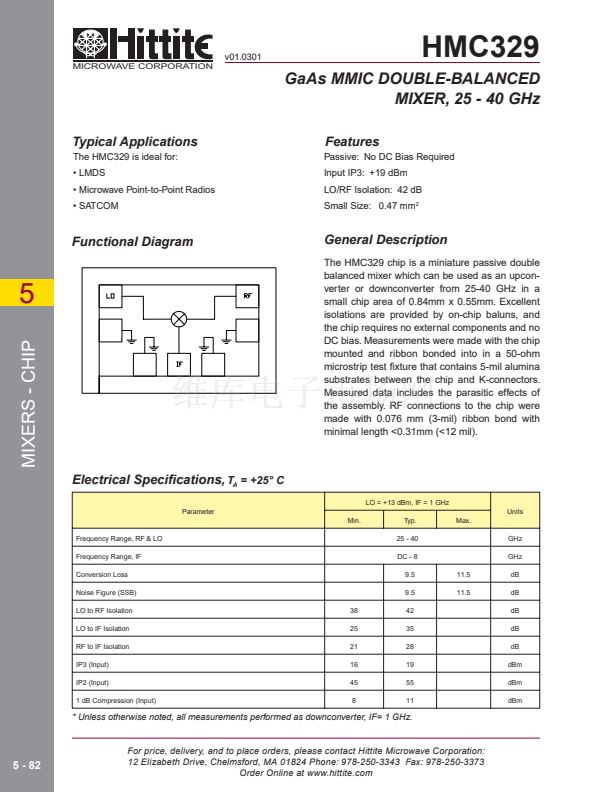

HMC329 Datasheet

  • HMC329

  • GaAs MMIC DOUBLE-BALANCED MIXER, 25 - 40 GHz

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROWAVE CORPORATION
v01.0301
HMC329
GaAs MMIC DOUBLE-BALANCED
MIXER, 25 - 40 GHz
Features
Passive: No DC Bias Required
Input IP3: +19 dBm
LO/RF Isolation: 42 dB
Small Size: 0.47 mm
2
Typical Applications
The HMC329 is ideal for:
鈥?LMDS
鈥?Microwave Point-to-Point Radios
鈥?SATCOM
Functional Diagram
General Description
The HMC329 chip is a miniature passive double
balanced mixer which can be used as an upcon-
verter or downconverter from 25-40 GHz in a
small chip area of 0.84mm x 0.55mm. Excellent
isolations are provided by on-chip baluns, and
the chip requires no external components and no
DC bias. Measurements were made with the chip
mounted and ribbon bonded into in a 50-ohm
microstrip test 鏗亁ture that contains 5-mil alumina
substrates between the chip and K-connectors.
Measured data includes the parasitic effects of
the assembly. RF connections to the chip were
made with 0.076 mm (3-mil) ribbon bond with
minimal length <0.31mm (<12 mil).
5
MIXERS - CHIP
Electrical Speci鏗乧ations,
T
A
= +25擄 C
LO = +13 dBm, IF = 1 GHz
Parameter
Min.
Frequency Range, RF & LO
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
RF to IF Isolation
IP3 (Input)
IP2 (Input)
1 dB Compression (Input)
38
25
21
16
45
8
Typ.
25 - 40
DC - 8
9.5
9.5
42
35
28
19
55
11
11.5
11.5
Max.
GHz
GHz
dB
dB
dB
dB
dB
dBm
dBm
dBm
Units
* Unless otherwise noted, all measurements performed as downconverter, IF= 1 GHz.
5 - 82
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
