v00.0204

MICROWAVE CORPORATION

HMC311ST89

InGaP HBT GAIN BLOCK

MMIC AMPLIFIER, DC - 6.0 GHz

Features

P1dB Output Power: +15.5 dBm

Output IP3: +31.5 dBm

Gain: 16 dB

50 Ohm I/O鈥檚

Industry Standard SOT89 Package

AMPLIFIERS - SMT

Typical Applications

The HMC311ST89 is an ideal RF/IF gain block

or LO buffer ampli鏗乪r for:

鈥?Cellular / PCS / 3G

鈥?Fixed Wireless & WLAN

鈥?CATV & Cable Modem

鈥?Microwave Radio

Functional Diagram

General Description

The HMC311ST89 is a GaAs InGaP Heterojunction

Bipolar Transistor (HBT) Gain Block MMIC SMT

DC to 6 GHz ampli鏗乪r. Packaged in an industry

standard SOT89, the ampli鏗乪r can be used as

either a cascadable 50 Ohm gain stage or to drive

the LO of HMC mixers with up to +16.5 dBm output

power. The HMC311ST89 offers 16 dB of gain

and an output IP3 of +31.5 dBm while requiring

only 54 mA from a +5V supply. The Darlington

feedback pair used results in reduced sensitivity

to normal process variations and yields excellent

gain stability over temperature while requiring a

minimal number of external bias components.

Electrical Speci鏗乧ations,

Vs= 5.0 V, Rbias= 22 Ohm, T

= +25擄 C

Parameter

DC - 1.0 GHz

1.0 - 4.0 GHz

4.0 - 6.0 GHz

DC - 2.0 GHz

2.0 - 4.0 GHz

4.0 - 6.0 GHz

DC - 2.0 GHz

2.0 - 5.0 GHz

5.0 - 6.0 GHz

DC - 6.0 GHz

DC - 2.0 GHz

2.0 - 4.0 GHz

4.0 - 6.0 GHz

DC - 1.0 GHz

1.0 - 2.0 GHz

2.0 - 4.0 GHz

4.0 - 6.0 GHz

DC - 4.0 GHz

4.0 - 6.0 GHz

13.5

12.0

10.0

Min.

14.0

13.0

12.5

Typ.

16.0

15.0

14.5

0.004

0.007

0.012

15.5

15.0

13.0

31.5

4.5

0.007

0.012

0.016

Max.

Units

dB/ 擄C

dBm

Gain

Gain Variation Over Temperature

Return Loss Input / Output

Reverse Isolation

Output Power for 1 dB Compression (P1dB)

Output Third Order Intercept (IP3)

Noise Figure

Supply Current (Icq)

Note: Data taken with broadband bias tee on device output.

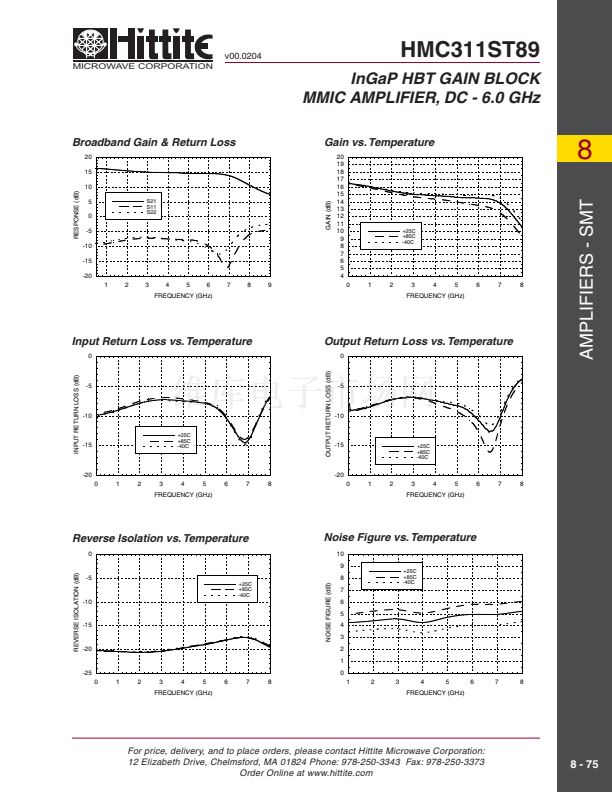

8 - 74

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order Online at www.hittite.com

現有數量
0現貨
價格
停產
系列
-
包裝
帶
產品狀態
停產
頻率
0Hz ~ 6GHz
P1dB
13dBm
增益
14.5dB
噪聲系數
5dB
射頻類型
通用
電壓 - 供電
5V
電流 - 供電
74mA
測試頻率
-
安裝類型
表面貼裝型
封裝/外殼
TO-243AA
供應商器件封裝
SOT-89
