HMC287MS8 Datasheet

  • HMC287MS8

  • GaAs MMIC LOW NOISE AMPLIFIER with AGC, 2.3 - 2.5 GHz

  • 218.82KB

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

v01.0701
MICROWAVE CORPORATION

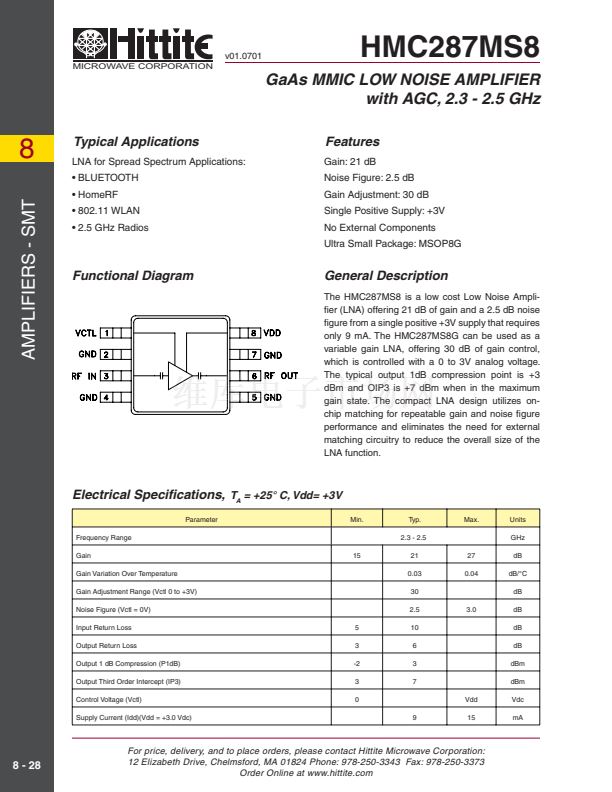

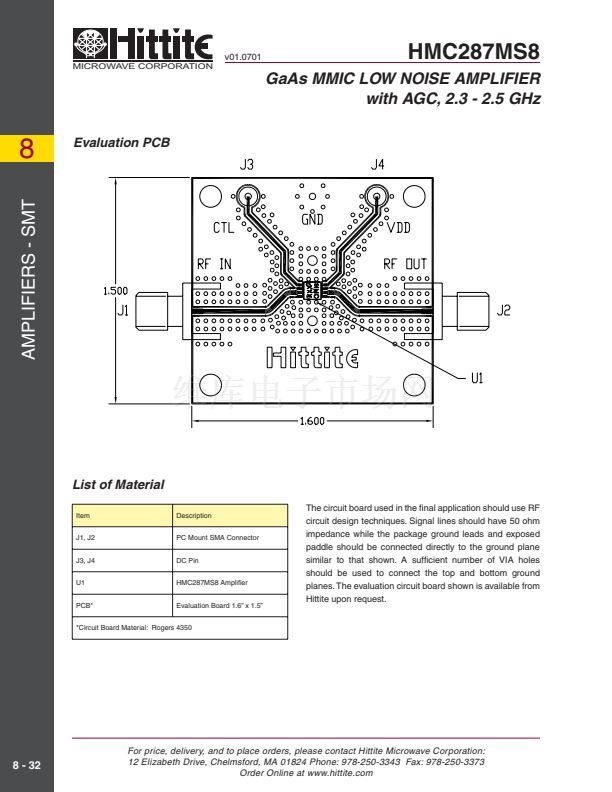

HMC287MS8
GaAs MMIC LOW NOISE AMPLIFIER
with AGC, 2.3 - 2.5 GHz
Features
Gain: 21 dB
Noise Figure: 2.5 dB
Gain Adjustment: 30 dB
Single Positive Supply: +3V
No External Components

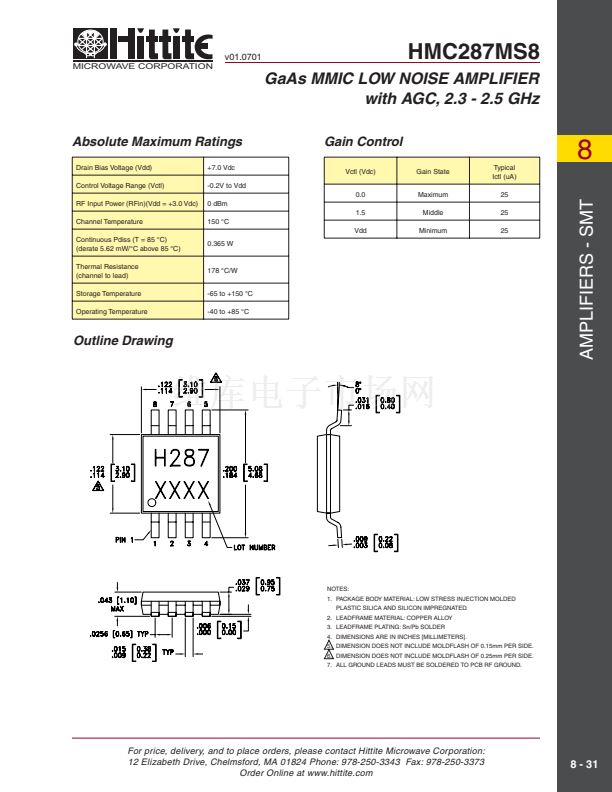

Ultra Small Package: MSOP8G
8
AMPLIFIERS - SMT
Typical Applications
LNA for Spread Spectrum Applications:
鈥?BLUETOOTH
鈥?HomeRF
鈥?802.11 WLAN
鈥?2.5 GHz Radios

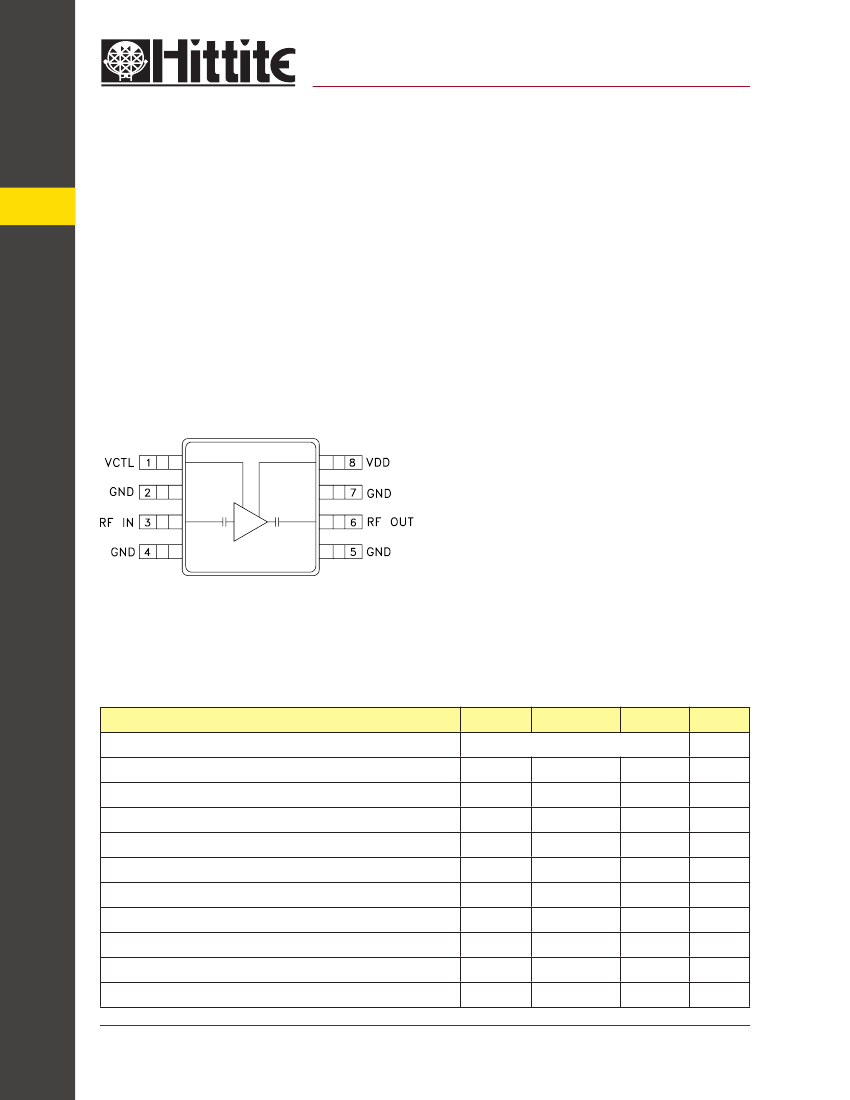

Functional Diagram
General Description
The HMC287MS8 is a low cost Low Noise Ampli-
鏗乪r (LNA) offering 21 dB of gain and a 2.5 dB noise
鏗乬ure from a single positive +3V supply that requires
only 9 mA. The HMC287MS8G can be used as a
variable gain LNA, offering 30 dB of gain control,
which is controlled with a 0 to 3V analog voltage.
The typical output 1dB compression point is +3
dBm and OIP3 is +7 dBm when in the maximum
gain state. The compact LNA design utilizes on-
chip matching for repeatable gain and noise 鏗乬ure
performance and eliminates the need for external
matching circuitry to reduce the overall size of the
LNA function.

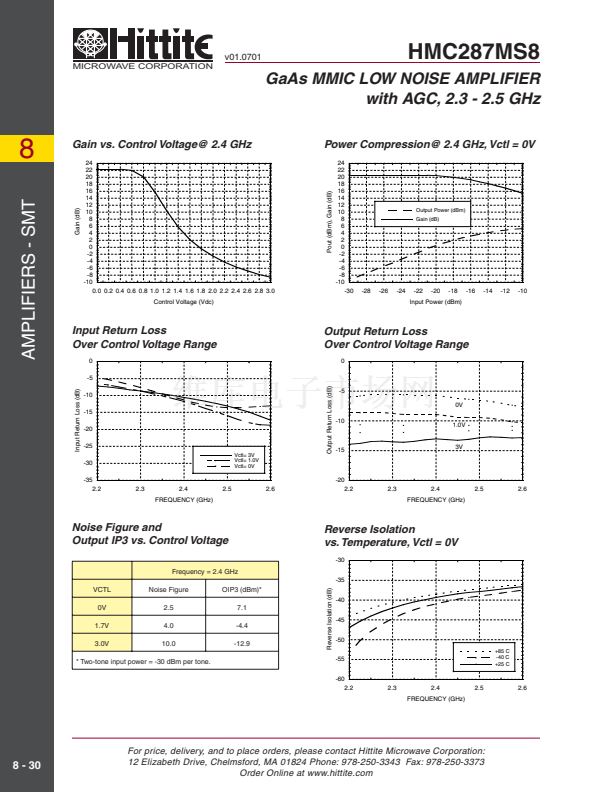

Electrical Speci鏗乧ations,
T
A
= +25擄 C, Vdd= +3V
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Gain Adjustment Range (Vctl 0 to +3V)
Noise Figure (Vctl = 0V)
Input Return Loss
Output Return Loss
Output 1 dB Compression (P1dB)
Output Third Order Intercept (IP3)
Control Voltage (Vctl)
Supply Current (Idd)(Vdd = +3.0 Vdc)
5
3
-2
3
0
9
15
Min.
Typ.
2.3 - 2.5
21
0.03
30
2.5
10
6
3
7
Vdd
15
3.0
27
0.04
Max.
Units
GHz
dB
dB/擄C
dB
dB
dB
dB
dBm
dBm
Vdc
mA
8 - 28
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
