HMC204 Datasheet

  • HMC204

  • GaAs MMIC PASSIVE FREQUENCY DOUBLER, 4 - 8 GHz INPUT

  • 158.79KB

  • 6頁

  • HITTITE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

v03.0304
MICROWAVE CORPORATION

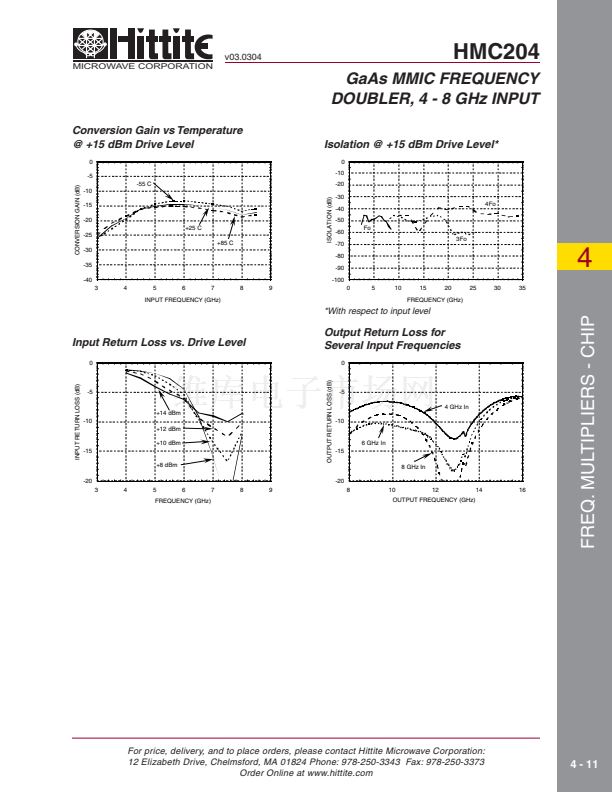

HMC204
GaAs MMIC PASSIVE FREQUENCY
DOUBLER, 4 - 8 GHz INPUT
Features
Conversion Loss: 17 dB
Fo, 3Fo, 4Fo Isolation: 38 dB
Passive: No Bias Required
Typical Applications
The HMC204 is suitable for:
鈥?Wireless Local Loop
鈥?LMDS, VSAT, and Pt to Pt Radios
鈥?Test Equipment
4
FREQ. MULTIPLIERS - CHIP
Functional Diagram
General Description
The HMC204 is a passive miniature frequency dou-
bler in a MMIC die. Suppression of undesired funda-
mental and higher order harmonics is 38 dB typical
with respect to input signal level. The doubler uti-
lizes the same GaAs Schottky diode/balun technol-
ogy found in Hittite MMIC mixers. It features small
size, no DC bias, and no measurable additive phase
noise onto the multiplied signal.
Electrical Speci鏗乧ations,
T
A
= +25擄 C, As a Function of Drive Level
Input = +10 dBm
Parameter
Frequency Range, Input
Frequency Range, Output
Conversion Loss
FO Isolation
(with respect to input level)
3FO Isolation
(with respect to input level)
4FO Isolation
(with respect to input level)
Min.
Typ.
5.5 - 7.5
11.0 - 15.0
17
20
41
Max.
Min.
Input = +12 dBm
Typ.
5.0 - 8.0
10.0 - 16.0
17
45
20
Max.
Min.
Input = +15 dBm
Typ.
4.0 - 8.0
8.0 - 16.0
18
21
Max.
Units
GHz
GHz
dB
dB
42
46
dB
35
38
dB
4 - 10
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
