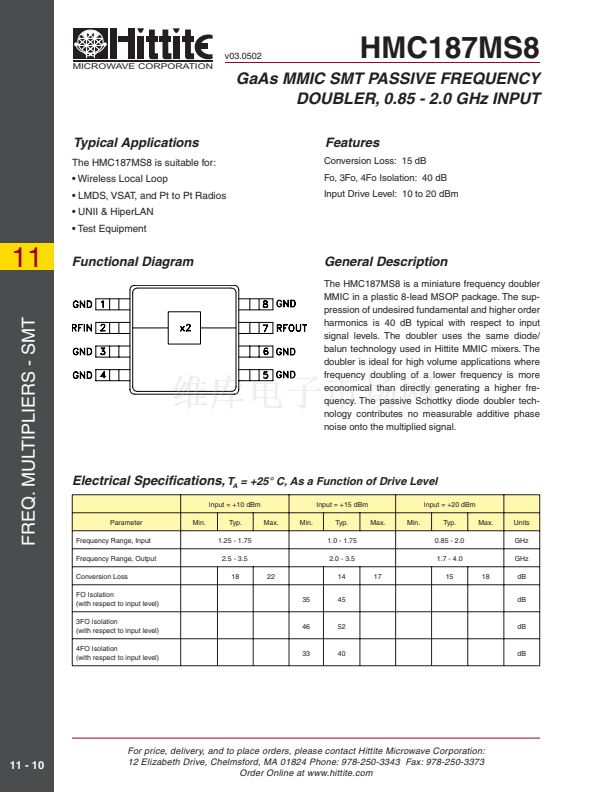

v03.0502
MICROWAVE CORPORATION
HMC187MS8
Features
Conversion Loss: 15 dB
Fo, 3Fo, 4Fo Isolation: 40 dB
Input Drive Level: 10 to 20 dBm
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Typical Applications
The HMC187MS8 is suitable for:
鈥?Wireless Local Loop
鈥?LMDS, VSAT, and Pt to Pt Radios
鈥?UNII & HiperLAN
鈥?Test Equipment
11
FREQ. MULTIPLIERS - SMT

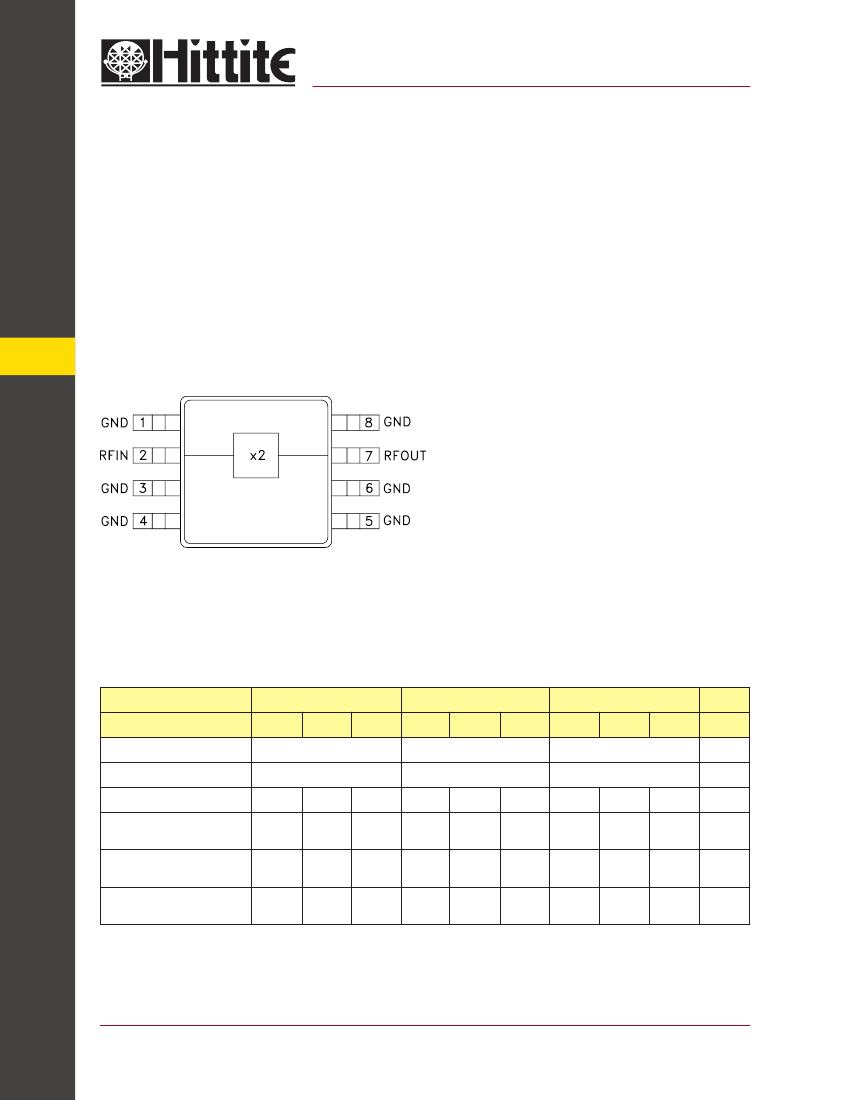

Functional Diagram
General Description
The HMC187MS8 is a miniature frequency doubler
MMIC in a plastic 8-lead MSOP package. The sup-
pression of undesired fundamental and higher order
harmonics is 40 dB typical with respect to input
signal levels. The doubler uses the same diode/
balun technology used in Hittite MMIC mixers. The
doubler is ideal for high volume applications where
frequency doubling of a lower frequency is more
economical than directly generating a higher fre-
quency. The passive Schottky diode doubler tech-
nology contributes no measurable additive phase
noise onto the multiplied signal.
Electrical Speci鏗乧ations,
T
A
= +25擄 C, As a Function of Drive Level
Input = +10 dBm
Parameter
Frequency Range, Input
Frequency Range, Output
Conversion Loss
FO Isolation
(with respect to input level)
3FO Isolation
(with respect to input level)
4FO Isolation
(with respect to input level)
Min.
Typ.
1.25 - 1.75
2.5 - 3.5
18
22
35
Max.
Min.
Input = +15 dBm
Typ.
1.0 - 1.75
2.0 - 3.5
14
45
17
Max.
Min.
Input = +20 dBm
Typ.
0.85 - 2.0
1.7 - 4.0
15
18
Max.
Units
GHz
GHz
dB
dB
46
52
dB
33
40
dB
11 - 10
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order Online at www.hittite.com
