HMBT468 Datasheet

  • HMBT468

  • NPN EPITAXIAL PLANAR TRANSISTOR

  • 44.37KB

  • 5頁

  • HSMC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

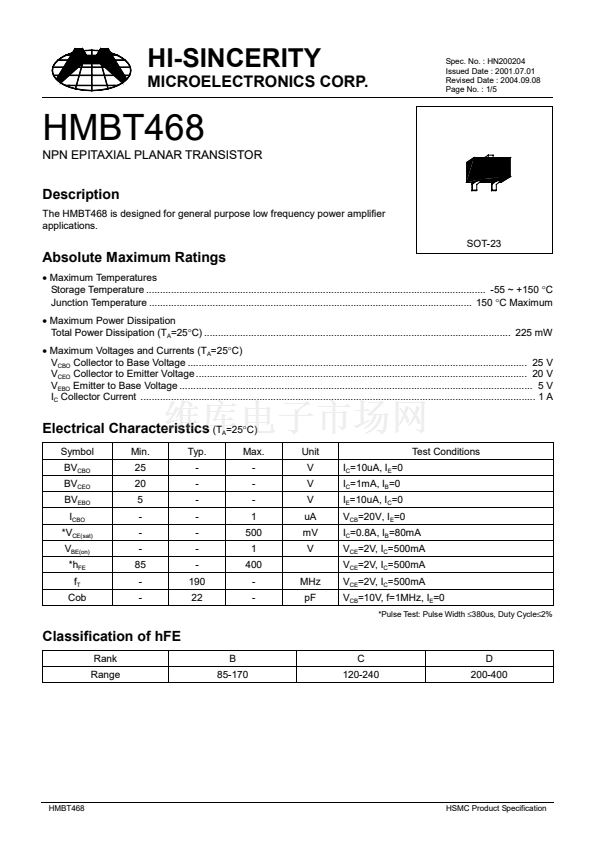

HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HN200204
Issued Date : 2001.07.01
Revised Date : 2004.09.08
Page No. : 1/5
HMBT468
NPN EPITAXIAL PLANAR TRANSISTOR
Description
The HMBT468 is designed for general purpose low frequency power amplifier
applications.
SOT-23
Absolute Maximum Ratings
鈥?/div>
Maximum Temperatures
Storage Temperature ........................................................................................................................... -55 ~ +150
擄C
Junction Temperature ..................................................................................................................... 150
擄C
Maximum
鈥?/div>
Maximum Power Dissipation
Total Power Dissipation (T
A
=25擄C) ............................................................................................................... 225 mW
鈥?/div>
Maximum Voltages and Currents (T
A
=25擄C)
V
CBO
Collector to Base Voltage ........................................................................................................................... 25 V
V
CEO
Collector to Emitter Voltage ........................................................................................................................ 20 V
V
EBO
Emitter to Base Voltage ................................................................................................................................ 5 V
I
C
Collector Current ............................................................................................................................................... 1 A
Electrical Characteristics
(T
A
=25擄C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
*V
CE(sat)
V
BE(on)
*h
FE
f
T
Cob
Min.
25
20
5
-
-
-
85
-
-
Typ.
-
-
-
-
-
-
-
190
22
Max.
-
-
-
1
500
1
400
-
-
MHz
pF
Unit
V
V
V
uA
mV
V
I
C
=10uA, I
E
=0
I
C
=1mA, I
B
=0
I
E
=10uA, I
C
=0
V
CB
=20V, I
E
=0
I
C
=0.8A, I
B
=80mA
V
CE
=2V, I
C
=500mA
V
CE
=2V, I
C
=500mA
V
CE
=2V, I
C
=500mA
V
CB
=10V, f=1MHz, I
E
=0
*Pulse Test: Pulse Width
鈮?80us,
Duty Cycle鈮?%
Test Conditions
Classification of hFE
Rank
Range
B
85-170
C
120-240
D
200-400
HMBT468
HSMC Product Specification
